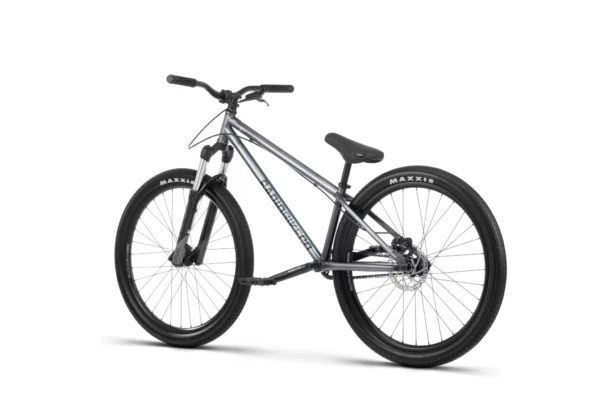

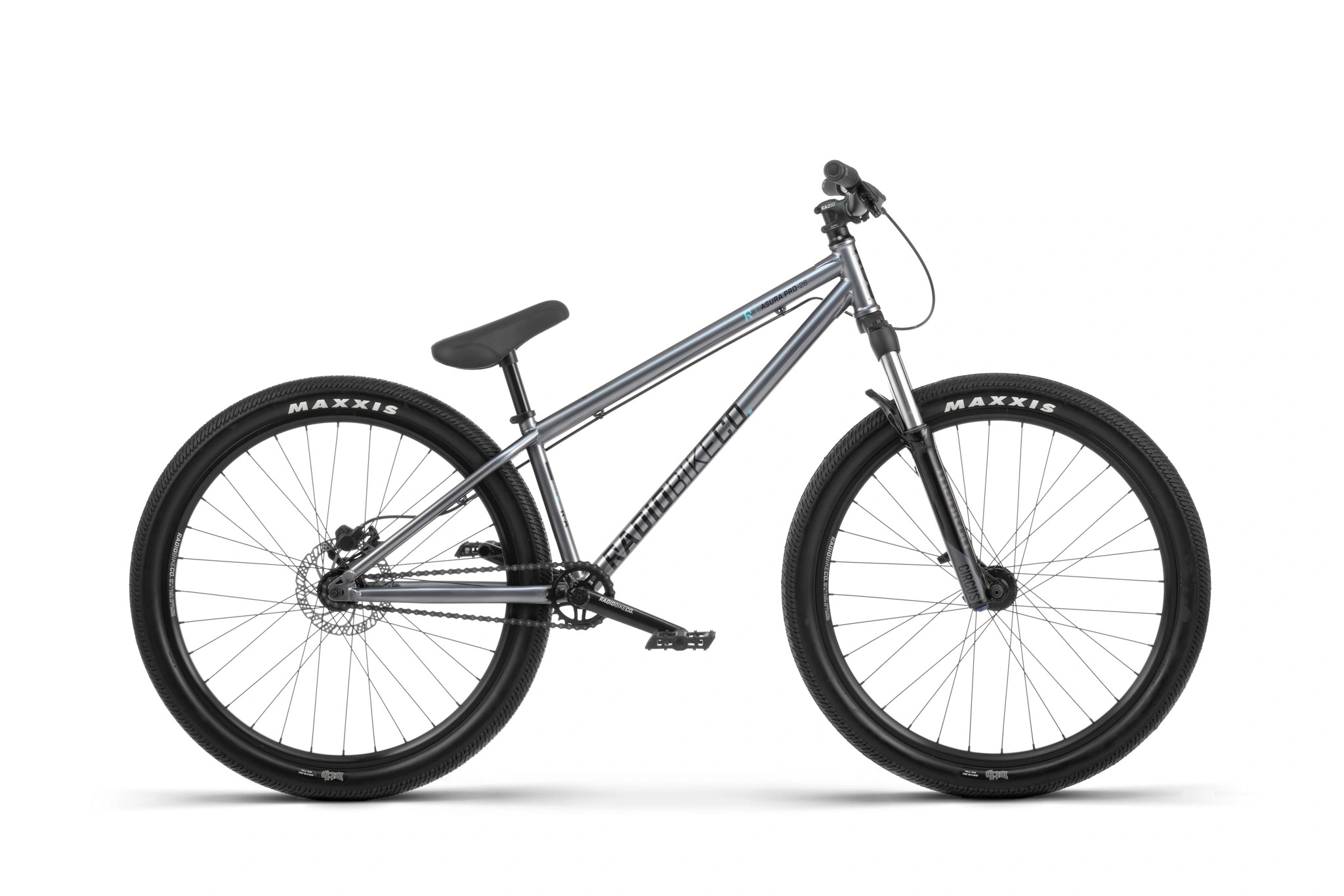

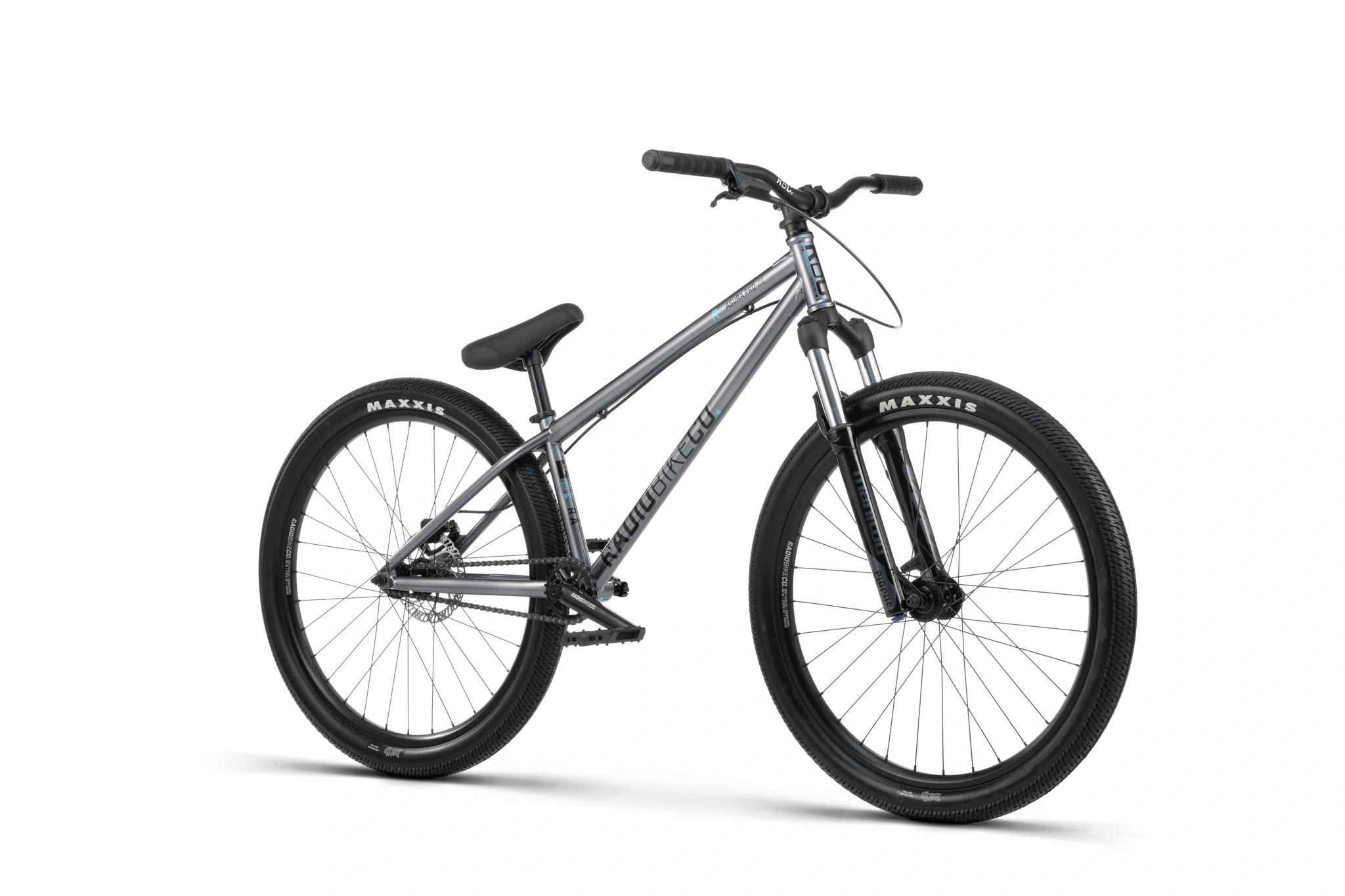

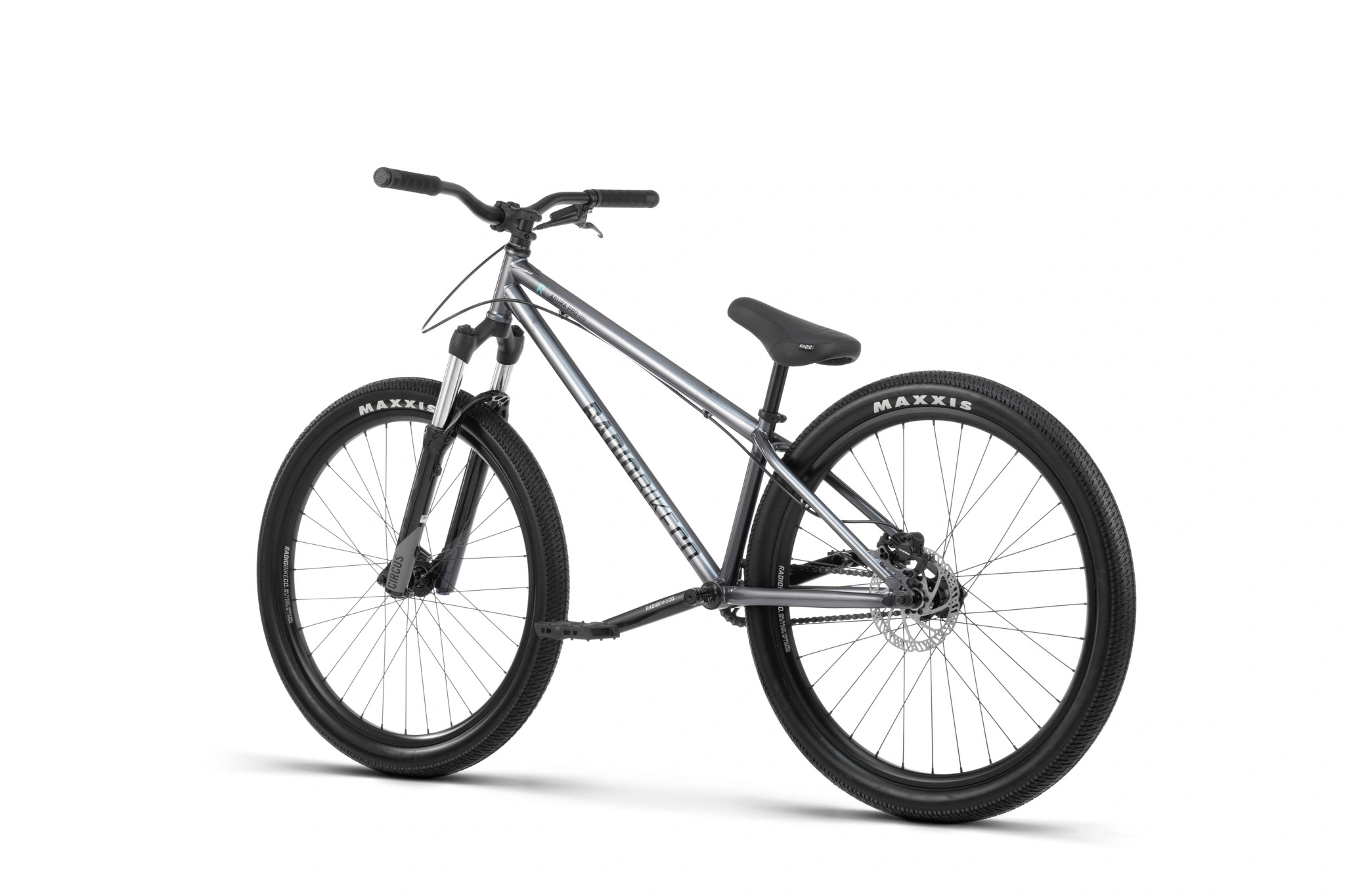

Pay in three equal instalments 3 x FRAME: RADIO “ASURA PRO” frame, full 4130 crmo

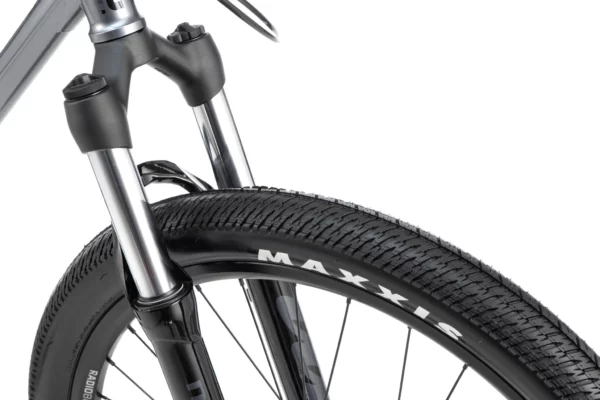

FORK: MANNITOU “Circus Comp”, 100mm travel

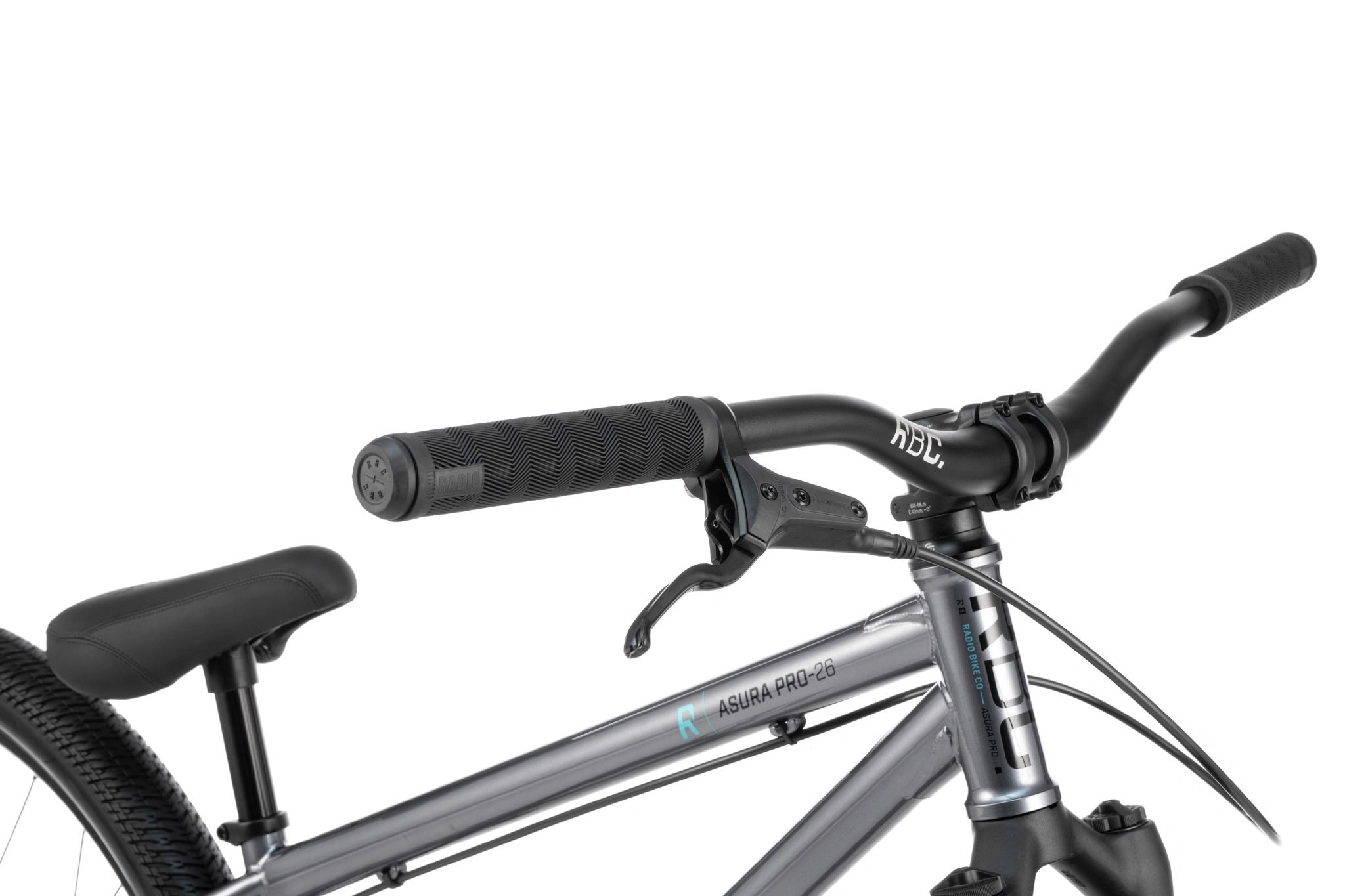

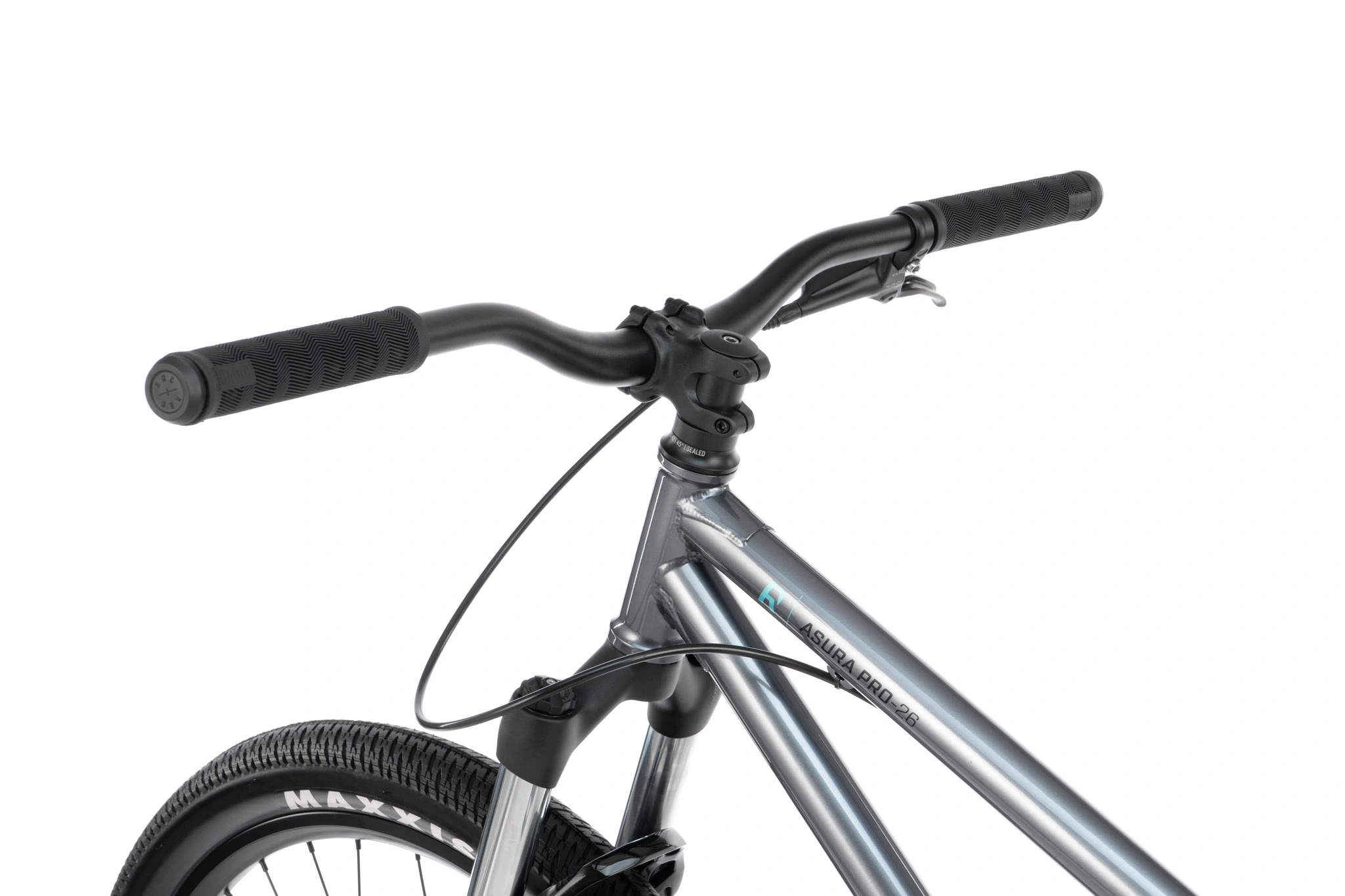

HANDLEBAR: RADIO “ASURA” bar, 6061-T6 alloy, 31.8mm
GRIPS: RADIO “FREQUENCY XL” grips, flangeless, 160mm

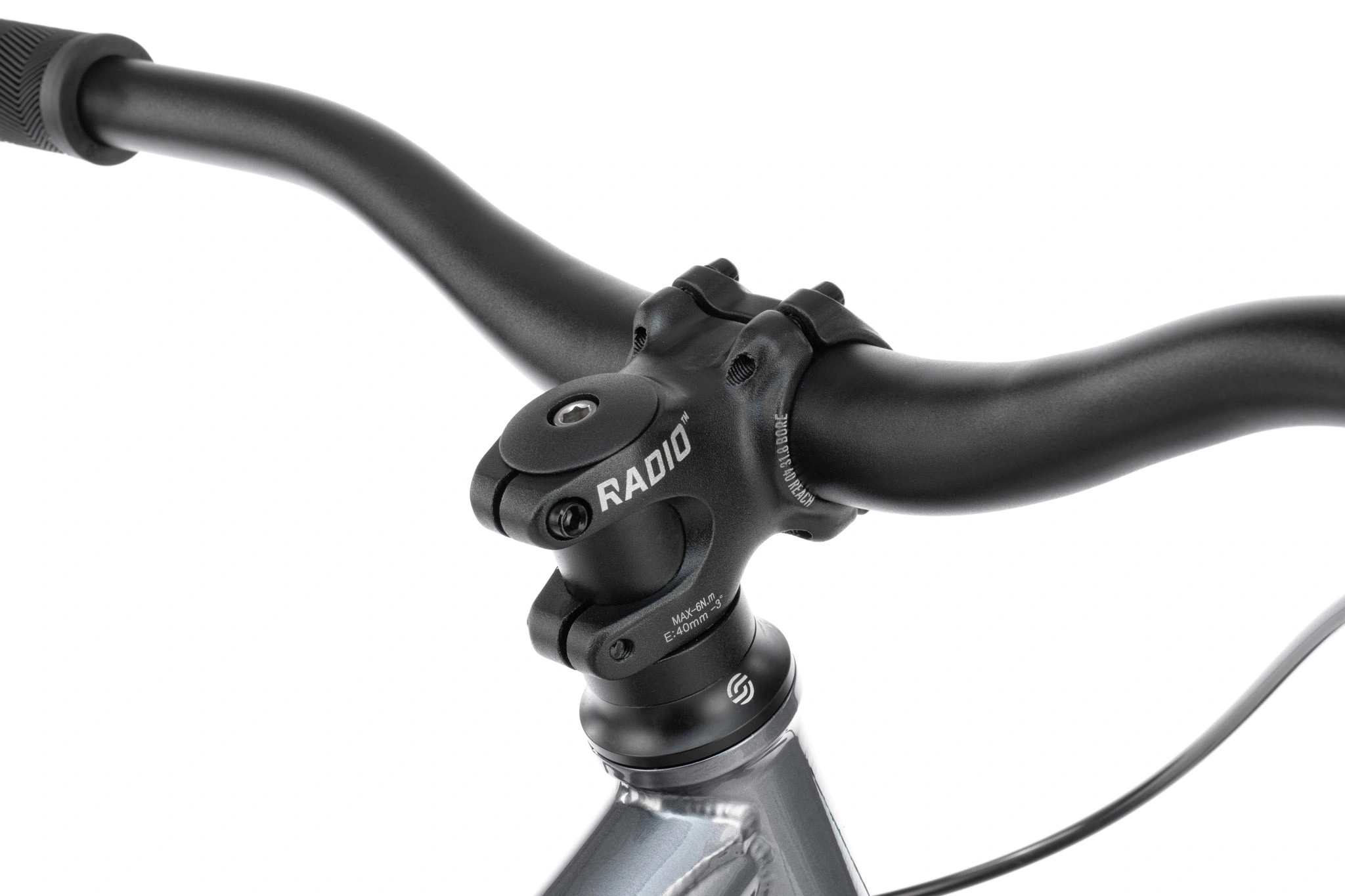

STEM: RADIO “ZOOM” frontload stem, alloy, 40mm reach
HEADSET: SALT “PRO” integrated headset, sealed bearing
BRAKE LEVER: TEKTRO “RS-360A” front lever / TEKTRO ” HD-M275″ rear lever

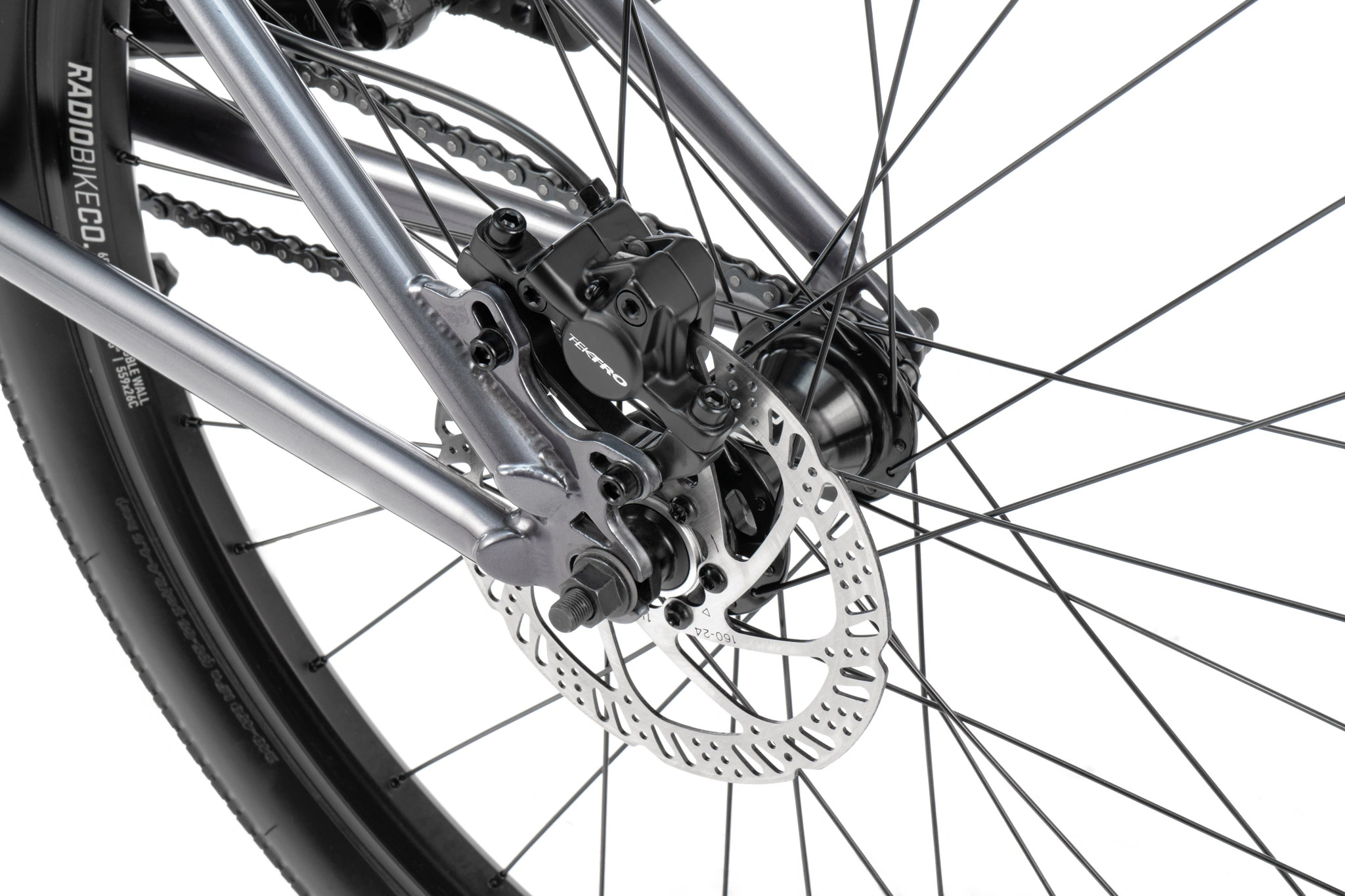

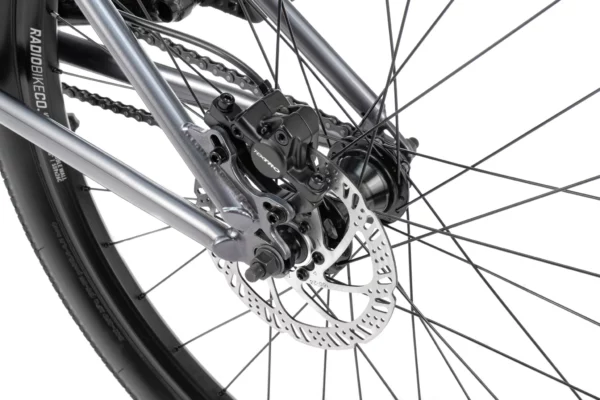

BRAKE: TEKTRO “ARIES” mechanical disc brake, 160mm rotor, front / TEKTRO “HD-M275” hydraulic disc brake, 160mm rotor, rear

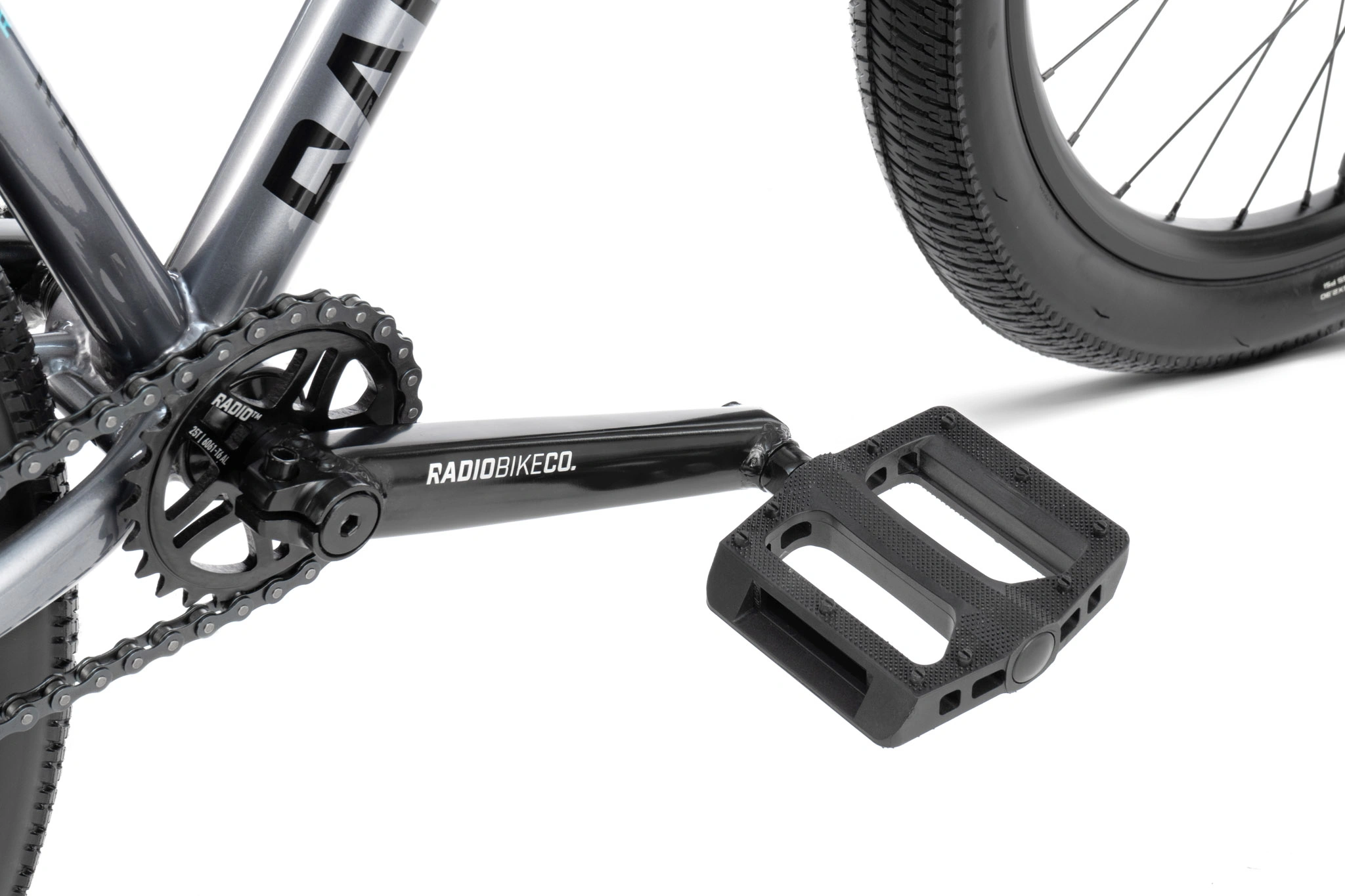

CRANK: RADIO “PRO” 3pc crank, tubular, crmo, 170mm, 8 spline
BB: RADIO “MID” bb set, press fit, sealed bearing
PEDALS: RADIO “SLIM” pedals, nylon/fiberglass
CHAIN: SALT “AM” chain, WZ1 type

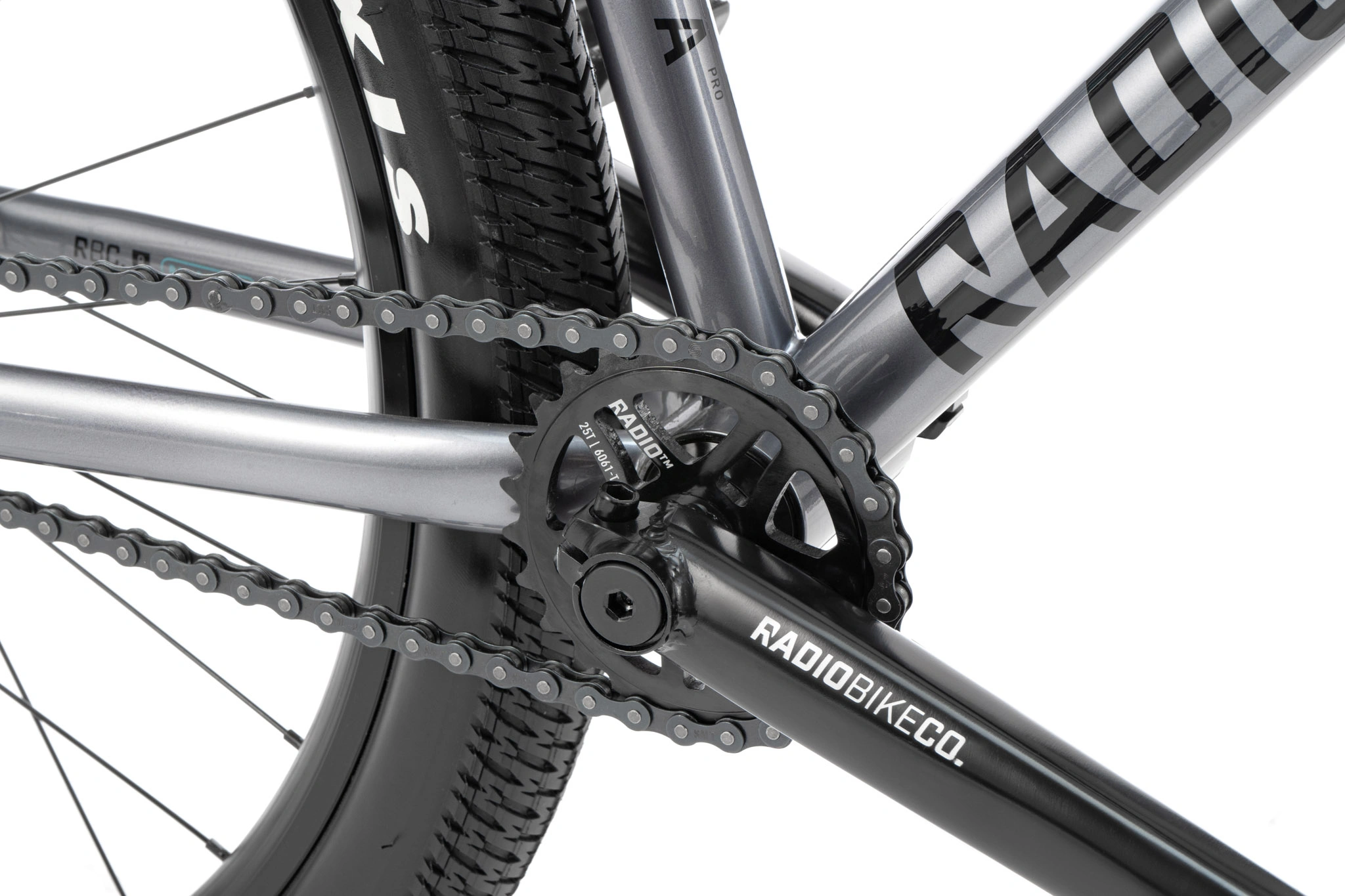

SPROCKET: RADIO “VISION” sprocket, alloy, 25t
DRIVER: cassette driver, 10t, sealed bearing

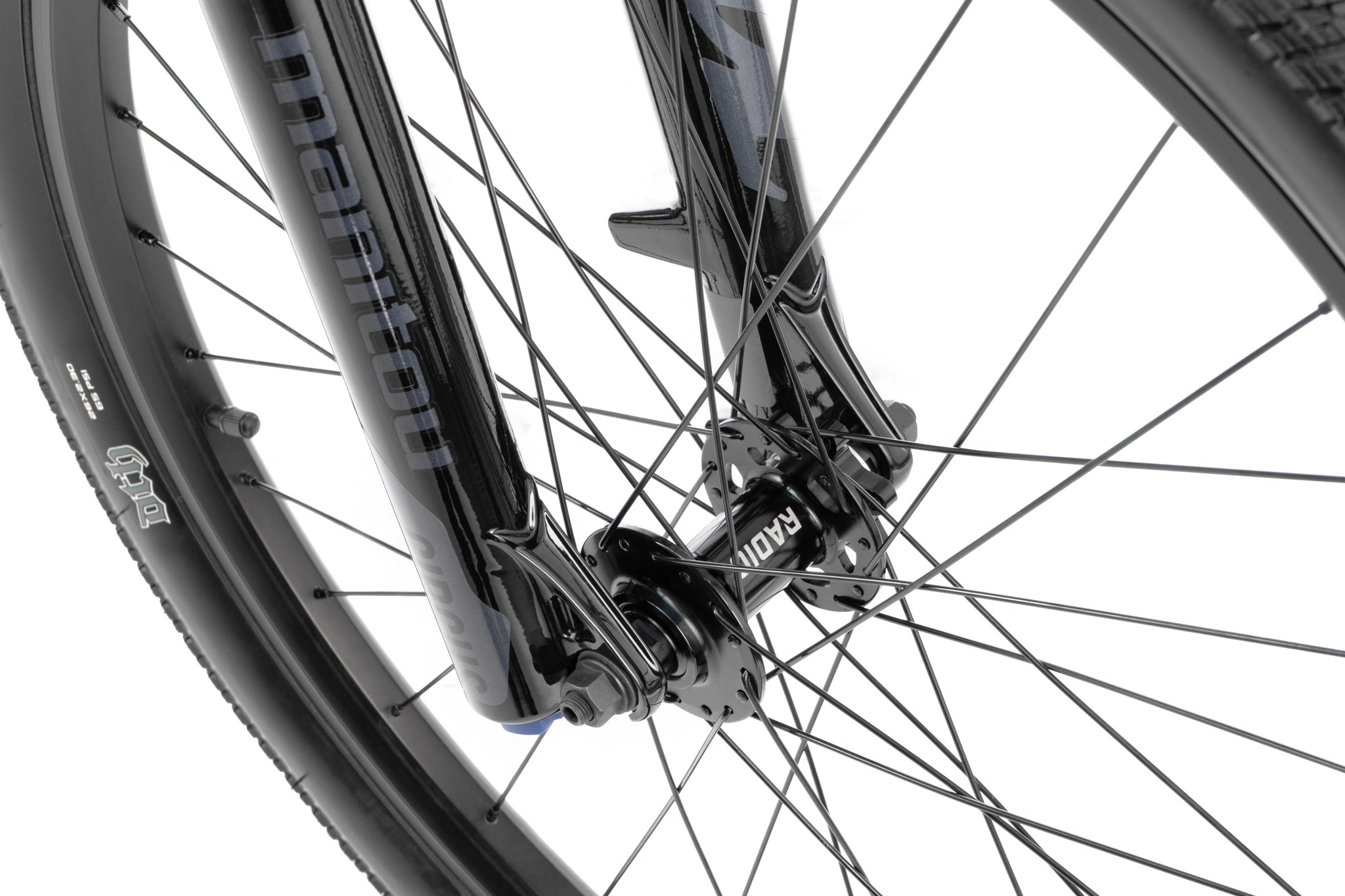

FRONT HUB: RADIO “PRO-DJ” disc hub, alloy, sealed, 3/8″s crmo axle, 32h

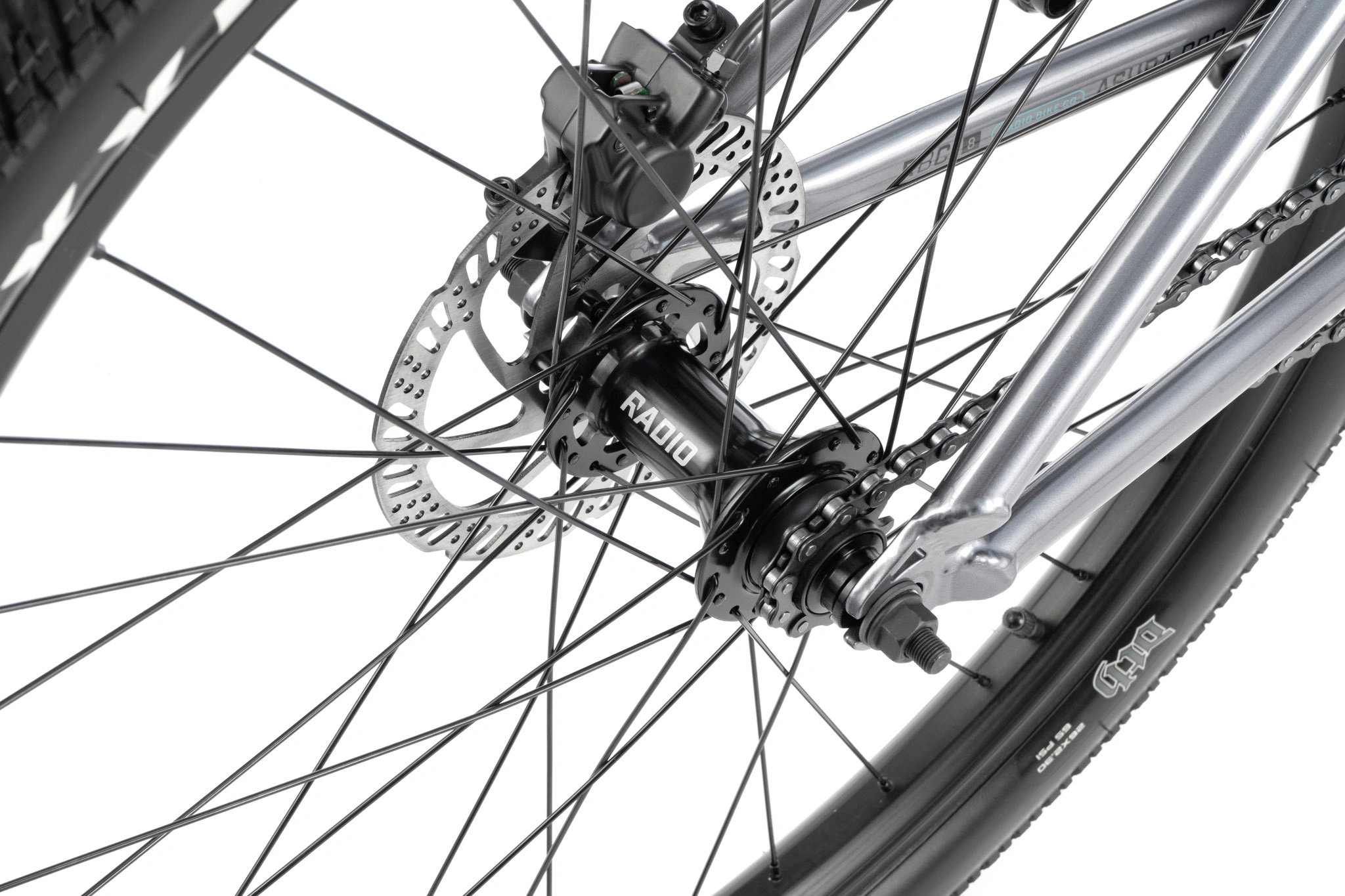

REAR HUB: RADIO “PRO-DJ” disc hub, alloy, sealed, 3/8″s crmo axle, 32h
FRONT RIM: RADIO “DB32” rim, double wall
REAR RIM: RADIO “DB32” rim, double wall

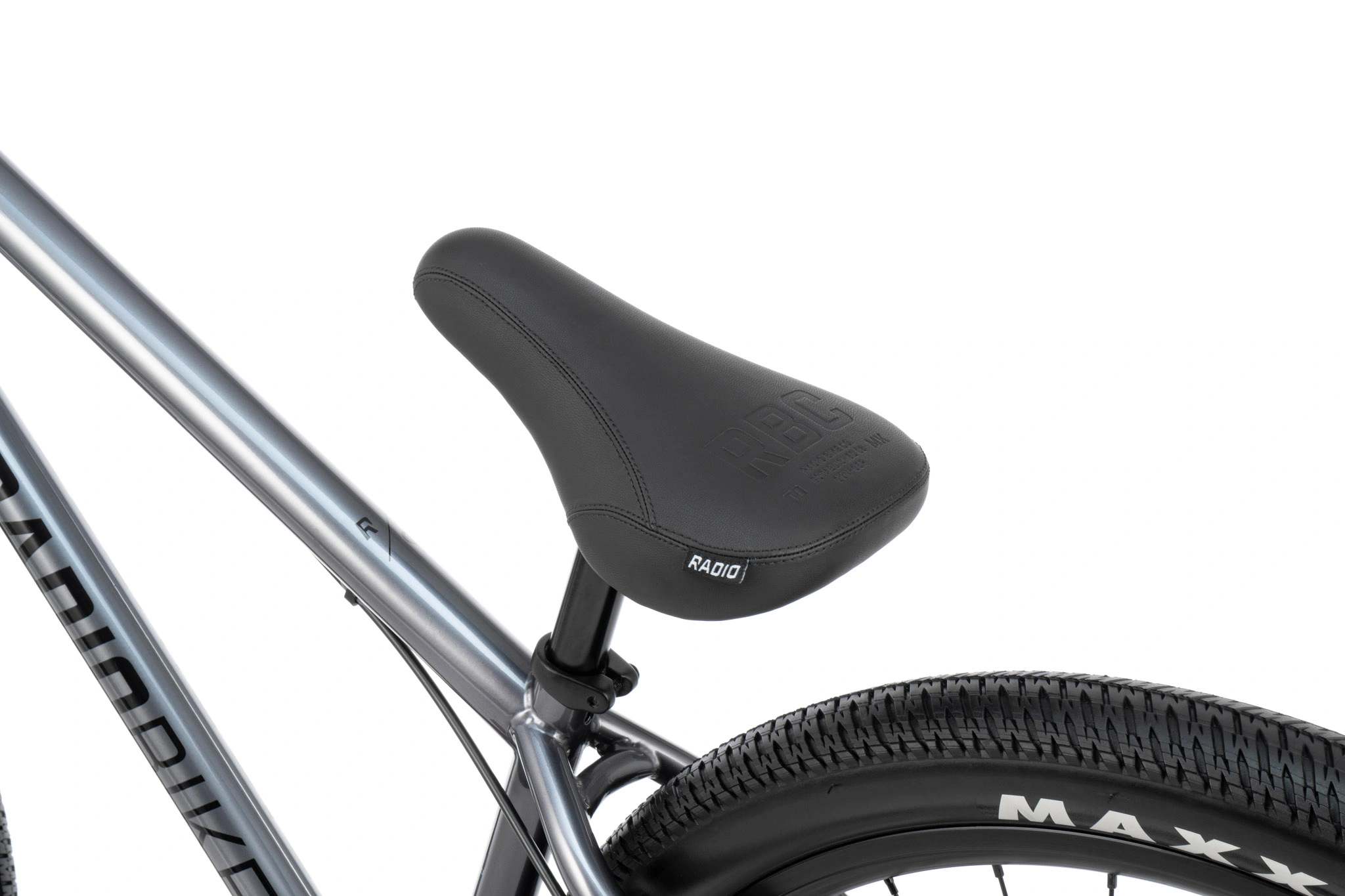

SEAT: RADIO “DJ” combo seat, medium padded
SEAT CLAMP: RADIO “SLIM” seat clamp, alloy
TIRES: MAXXIS “DTH” tires, 2.3″, front & rear
Weight: 12.74kg / 28.1lbs
Frame Geometry:
Top Tube Length 22.7″
Chain Stay Length 15″
Head Tube Angle 70°
Seat Tube Angle 72.5°
Bottom Bracket Height 4mm drop
Standover Height 10.5″
Handlebar Geometry:
Rise 50mm
Width 740mm
Backsweep 8°
Upsweep 3°
