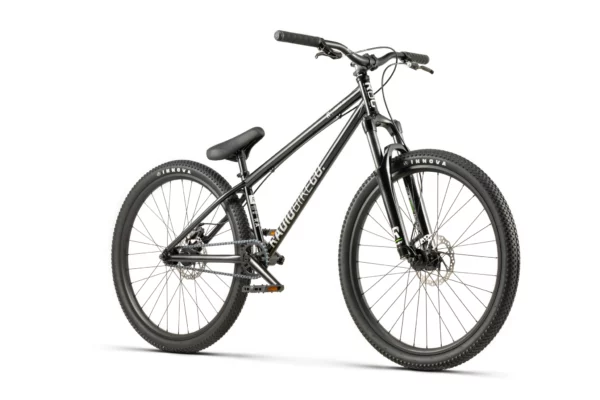

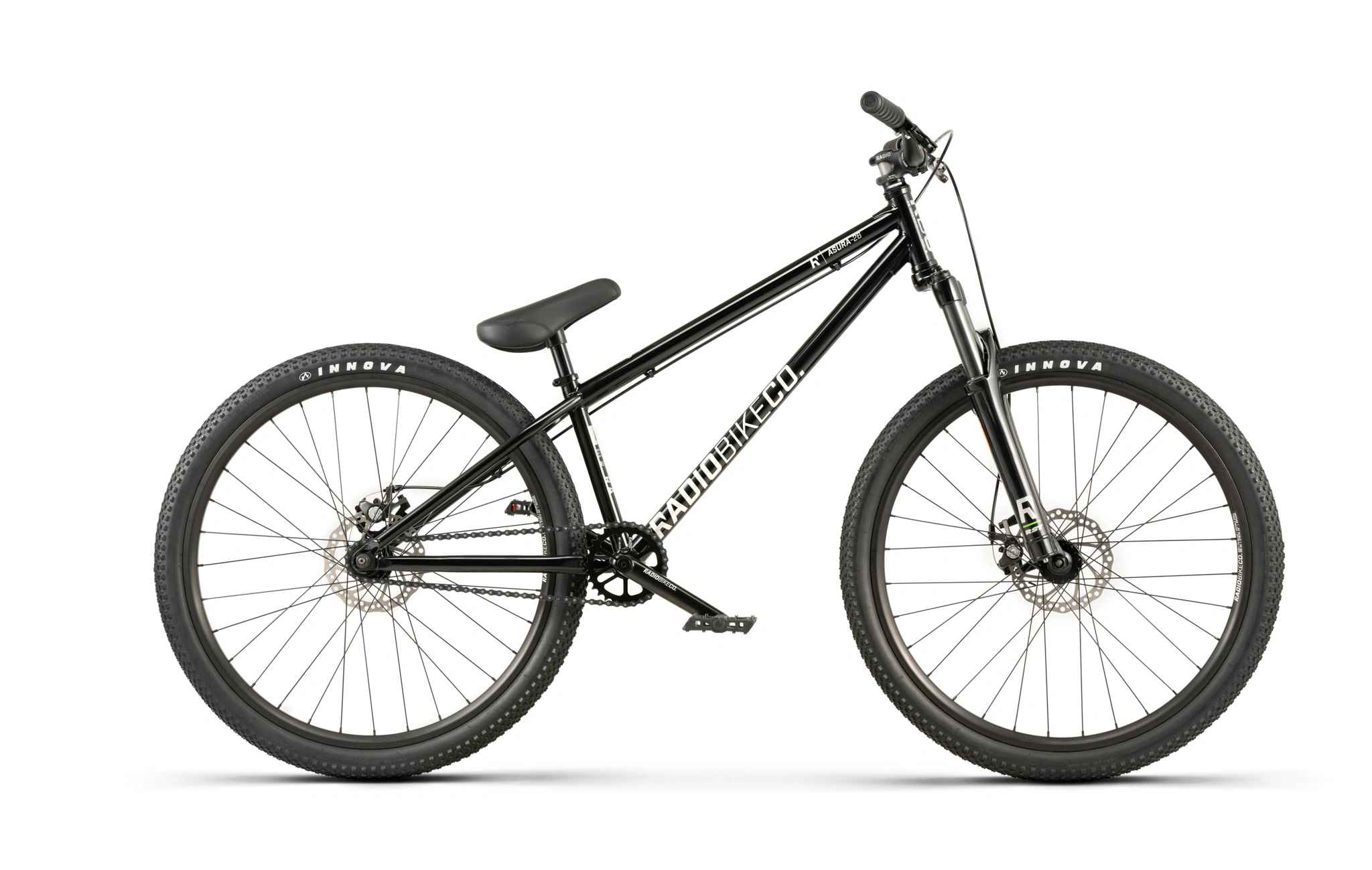

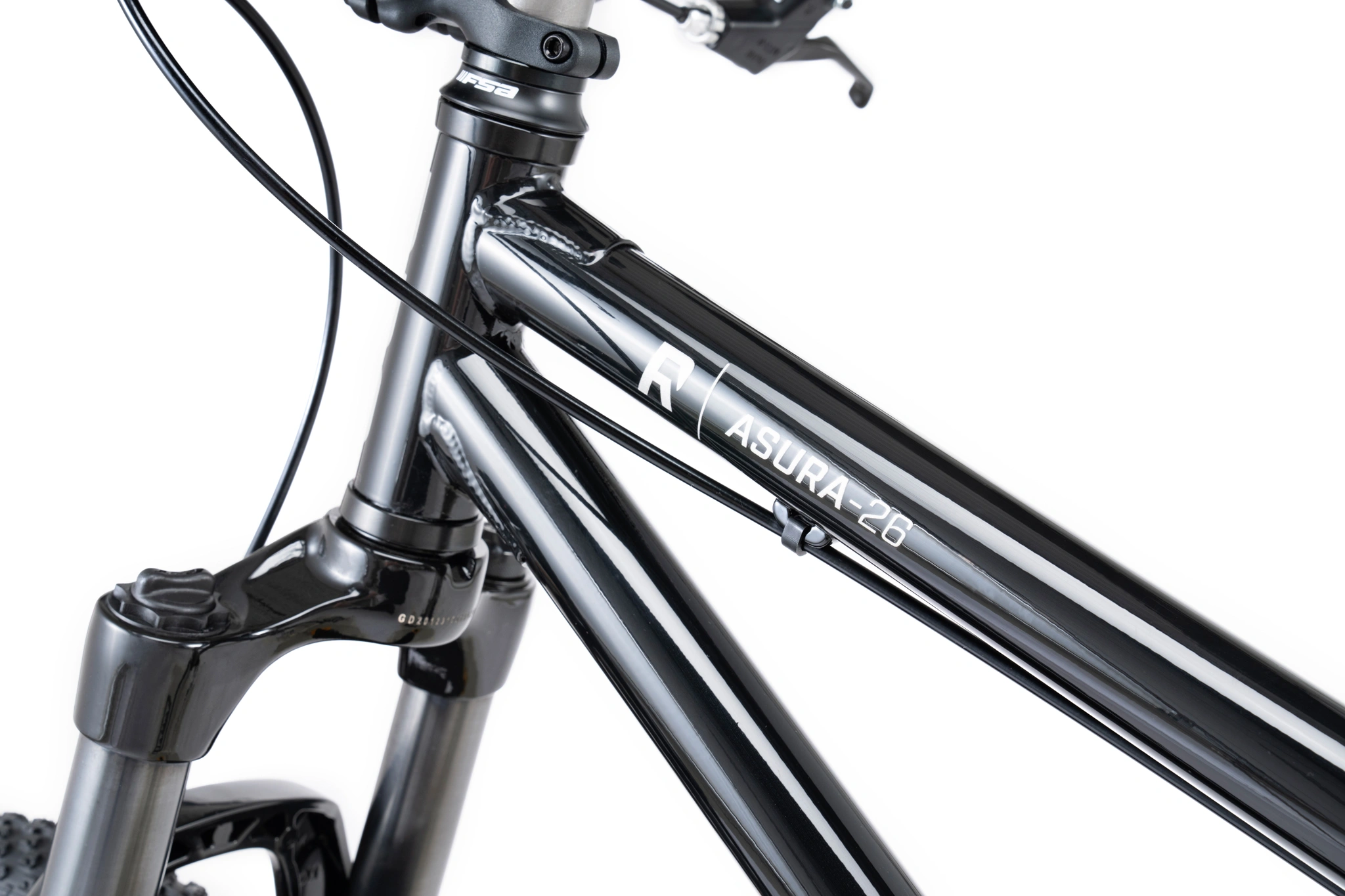

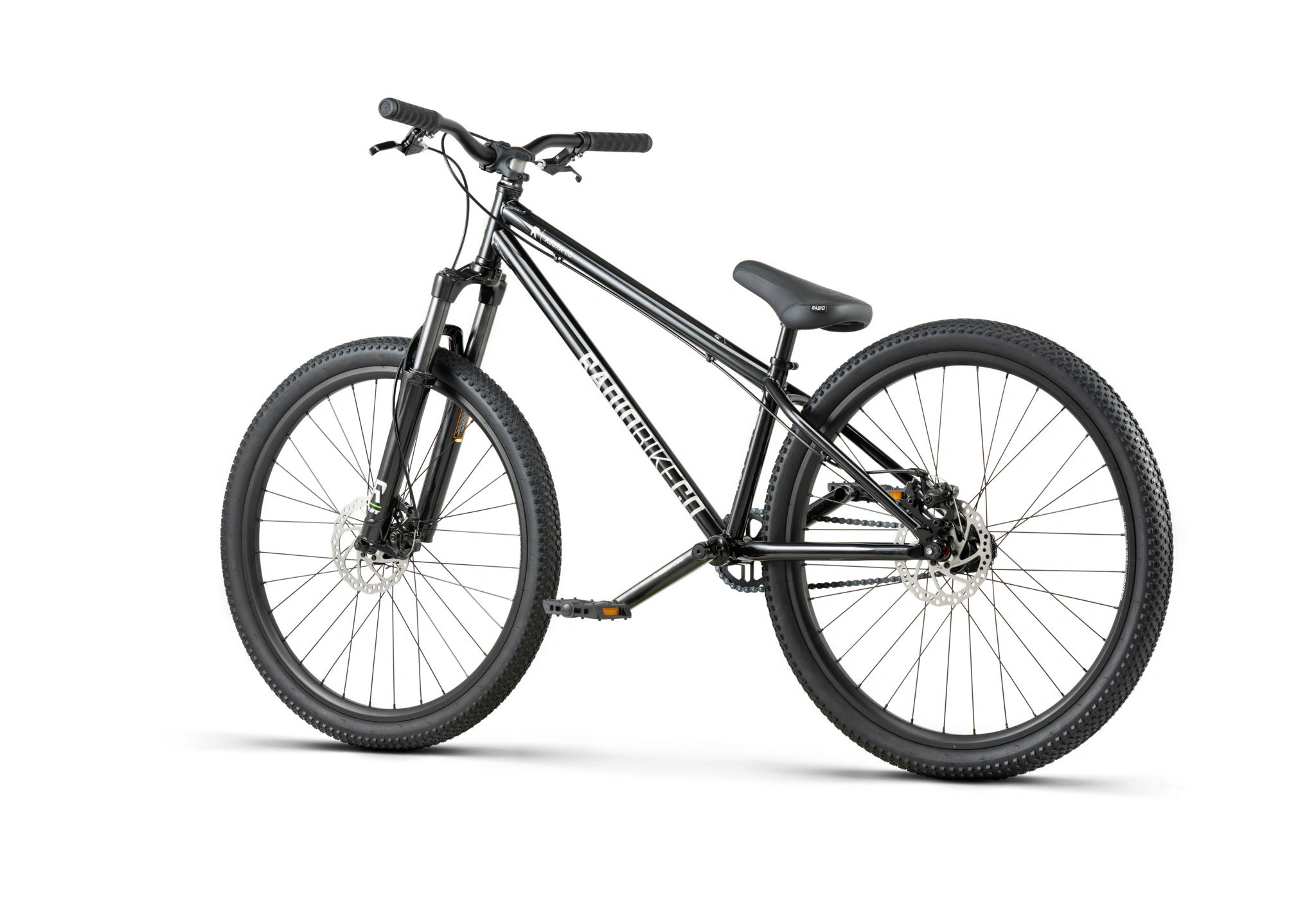

Pay in three equal instalments 3 x FRAME: RADIO “ASURA” frame, crmo top tube & down tube, 1020 hi-ten

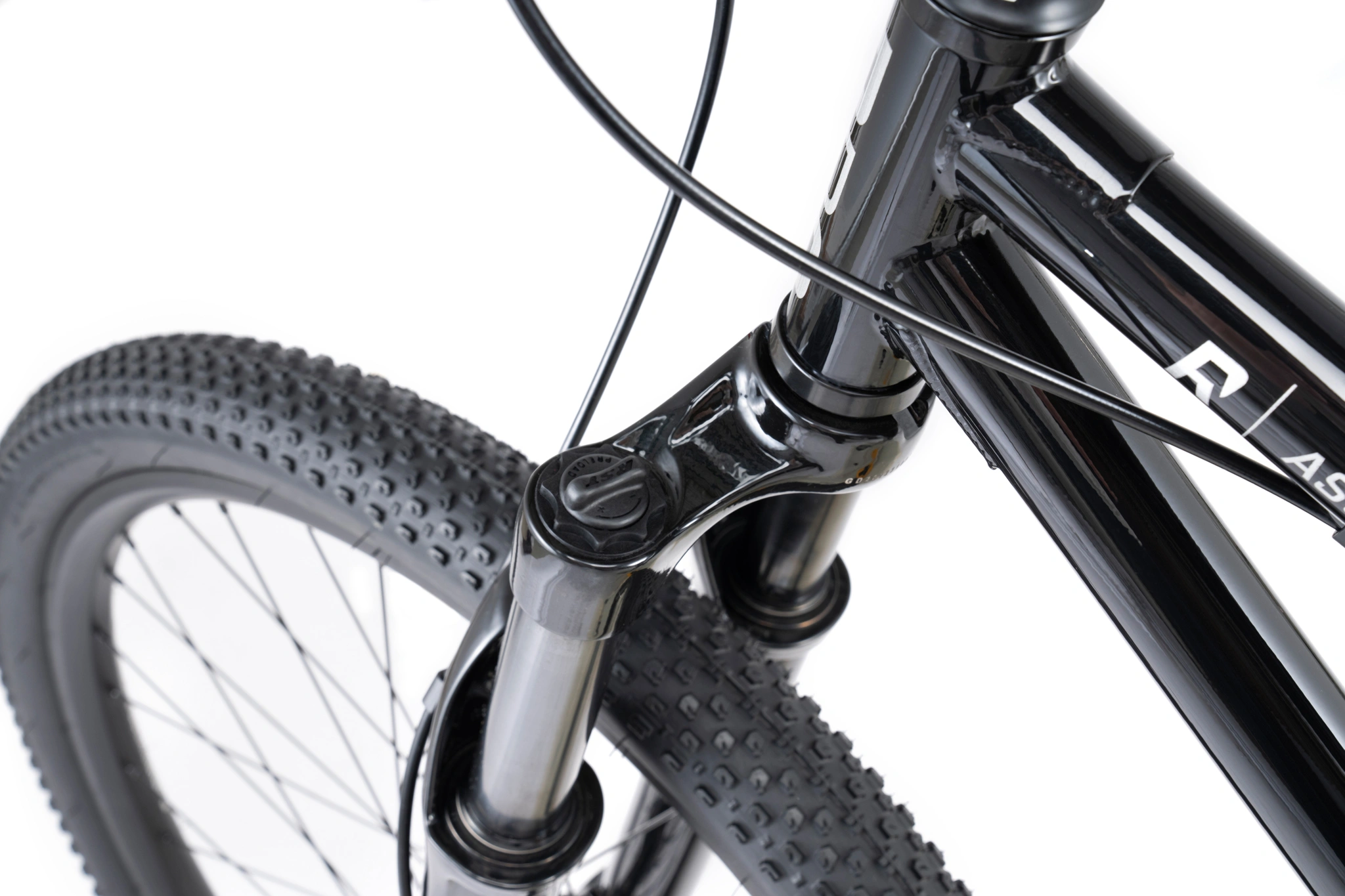

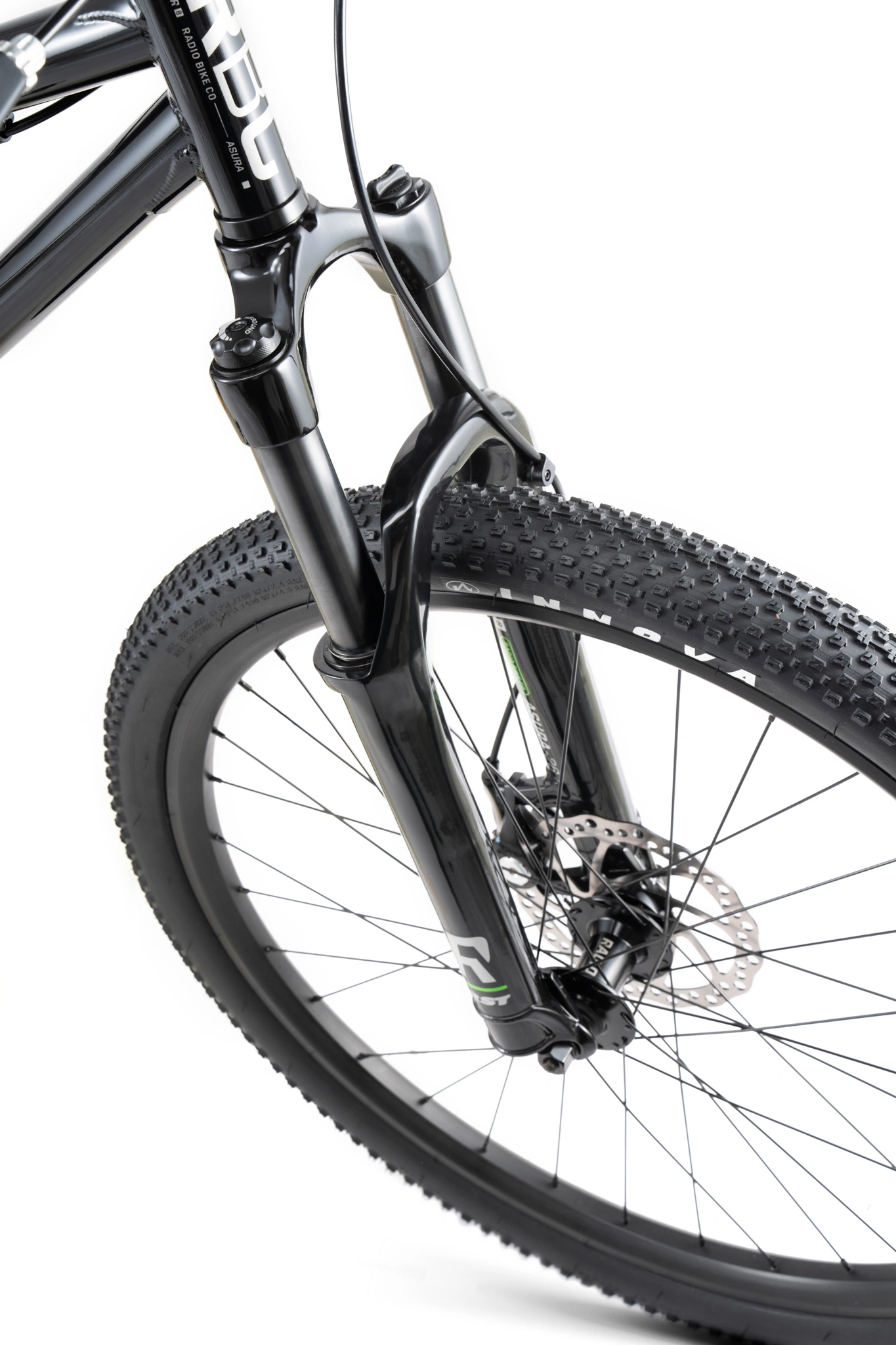

FORK: RST “DIRT RA” fork, 100mm travel

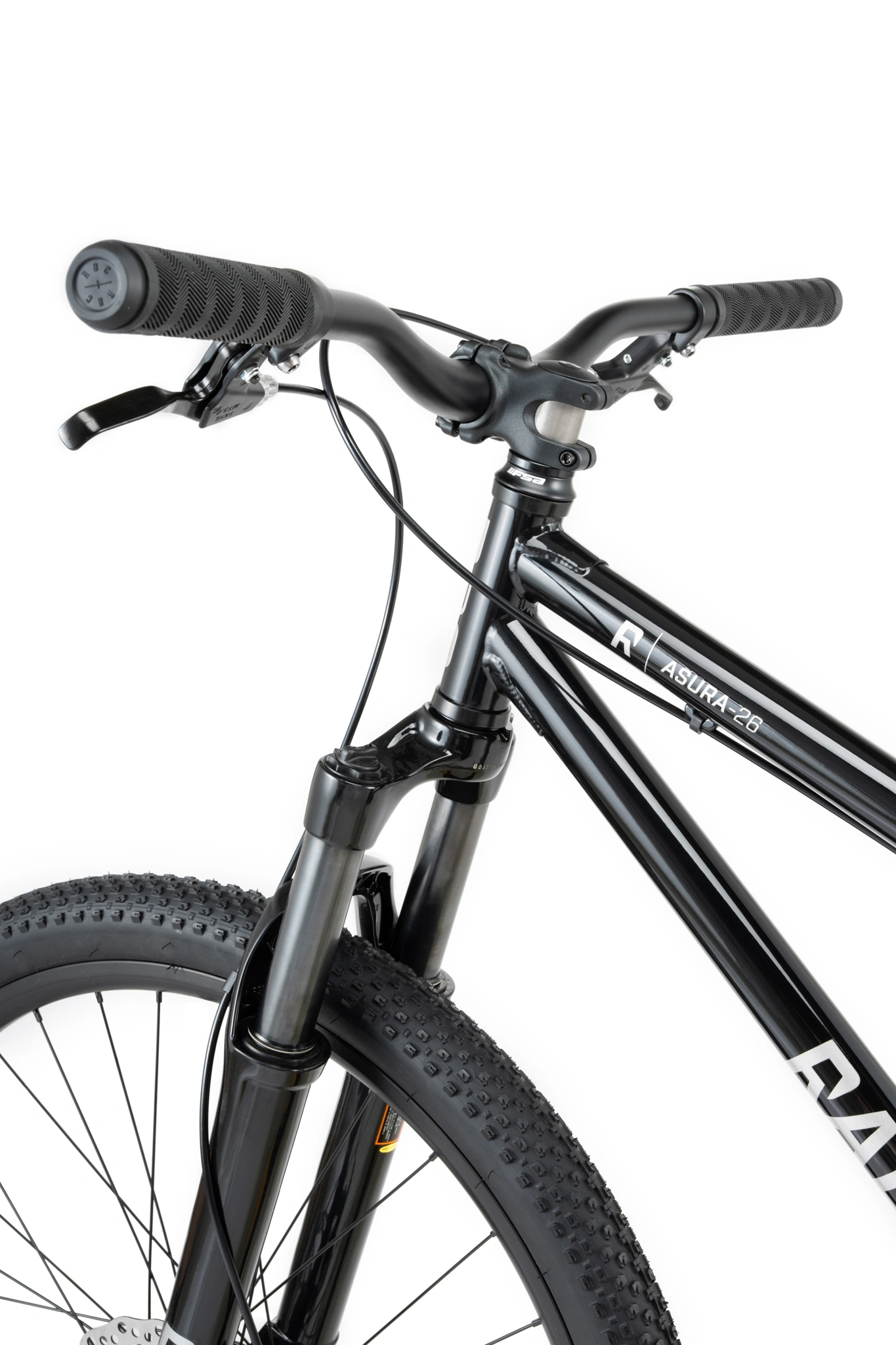

HANDLEBAR: RADIO “ASURA” bar, 6061-T6 alloy, 31.8mm
GRIPS: RADIO “FREQUENCY XL” grips, flangeless, 160mm
STEM: RADIO “ZOOM” frontload stem, alloy, 40mm reach
HEADSET: FSA “NO.28” A-headset

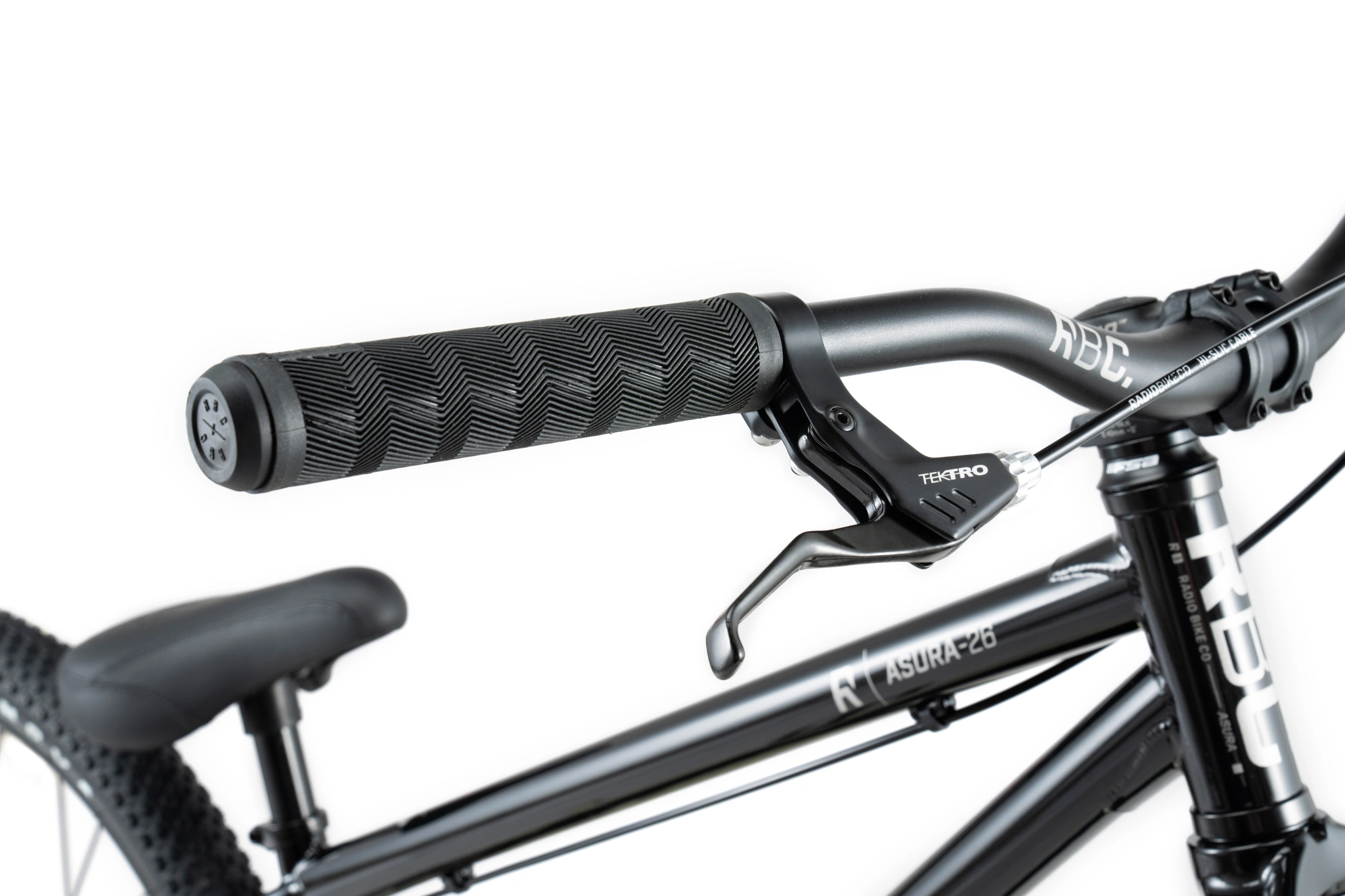

BRAKE LEVER: TEKTRO “RS-360A” lever, front & rear

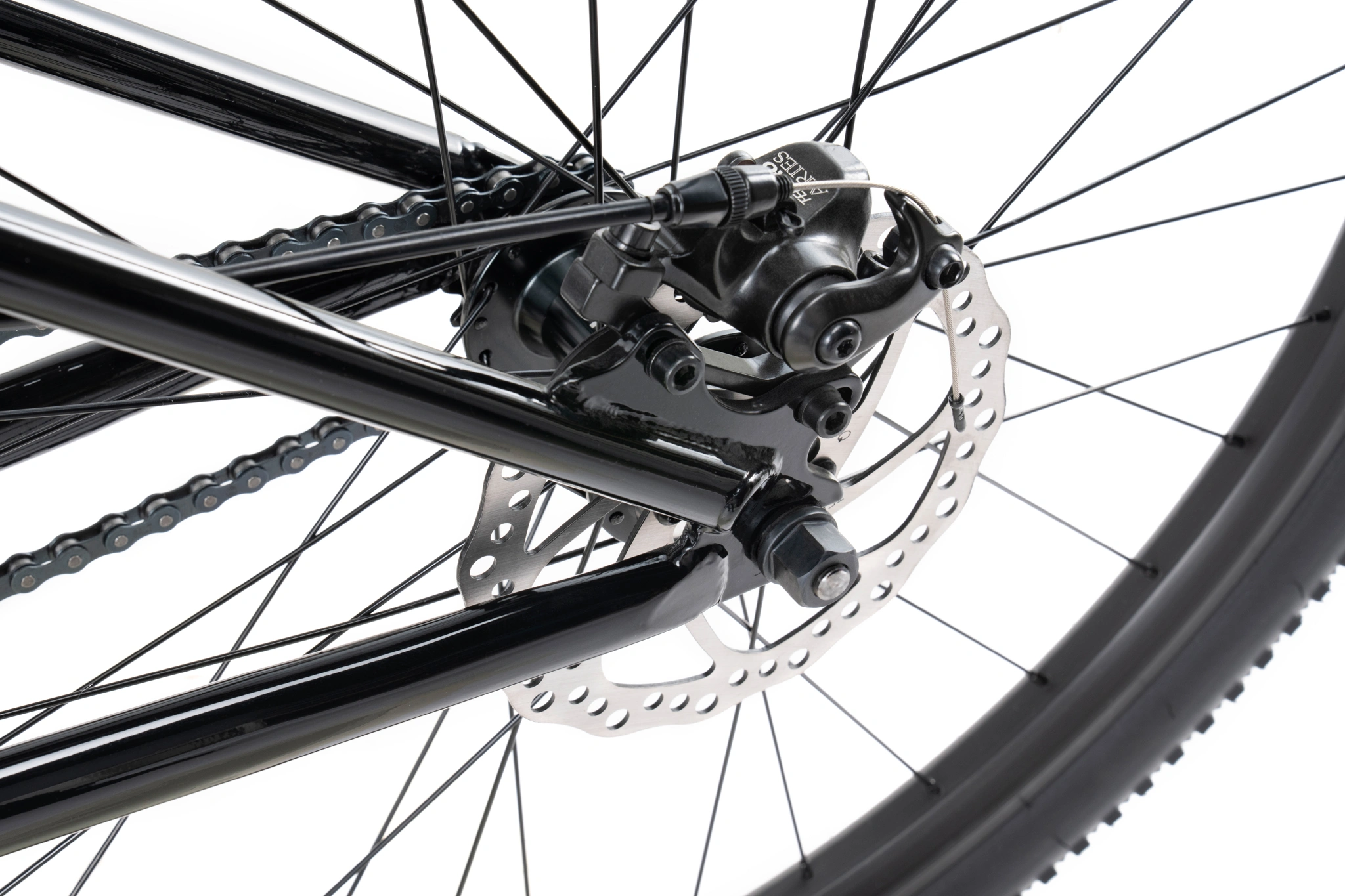

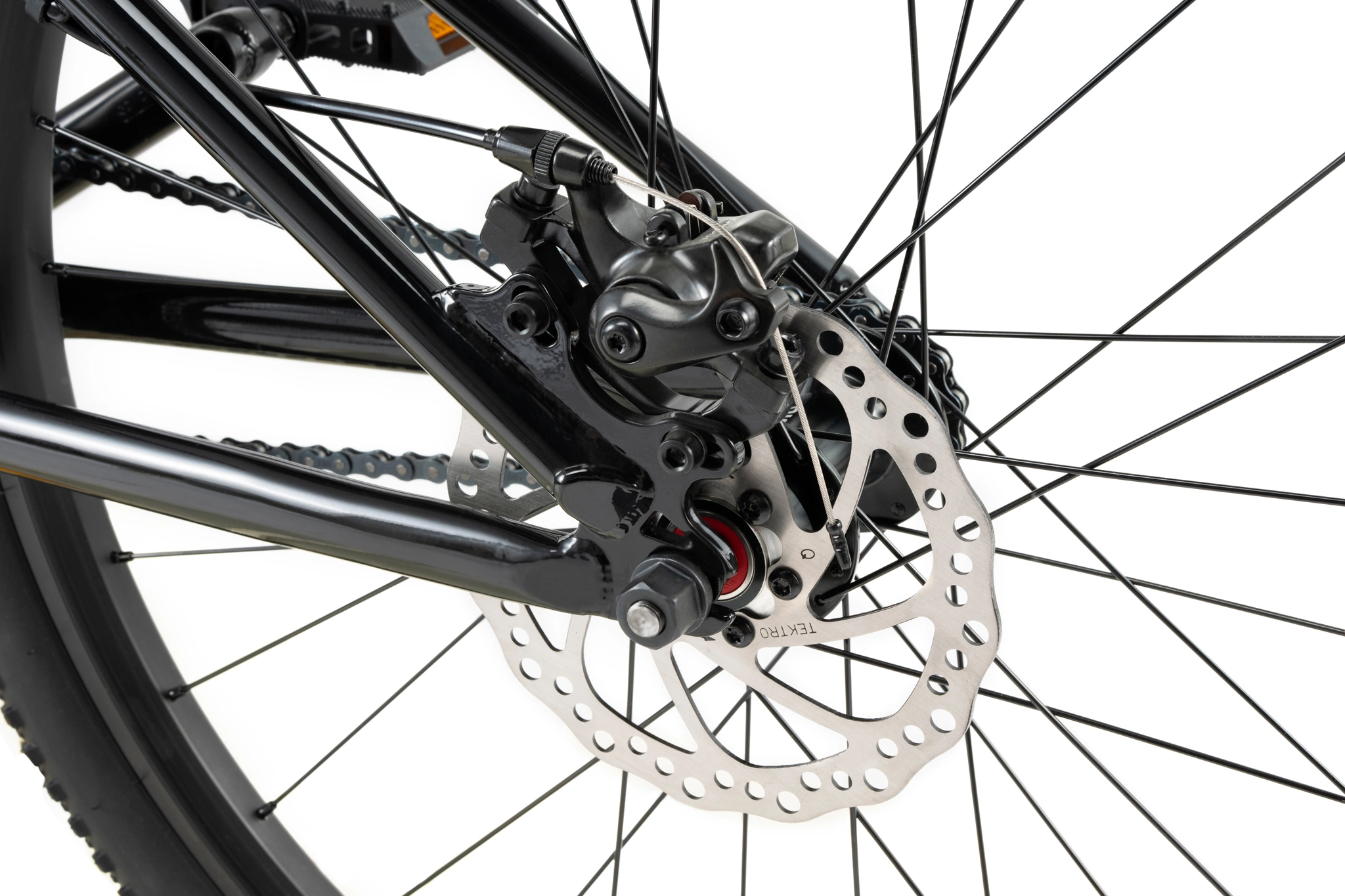

BRAKE: TEKTRO “ARIES” mechanical disc brake, 160mm rotor, front & rear

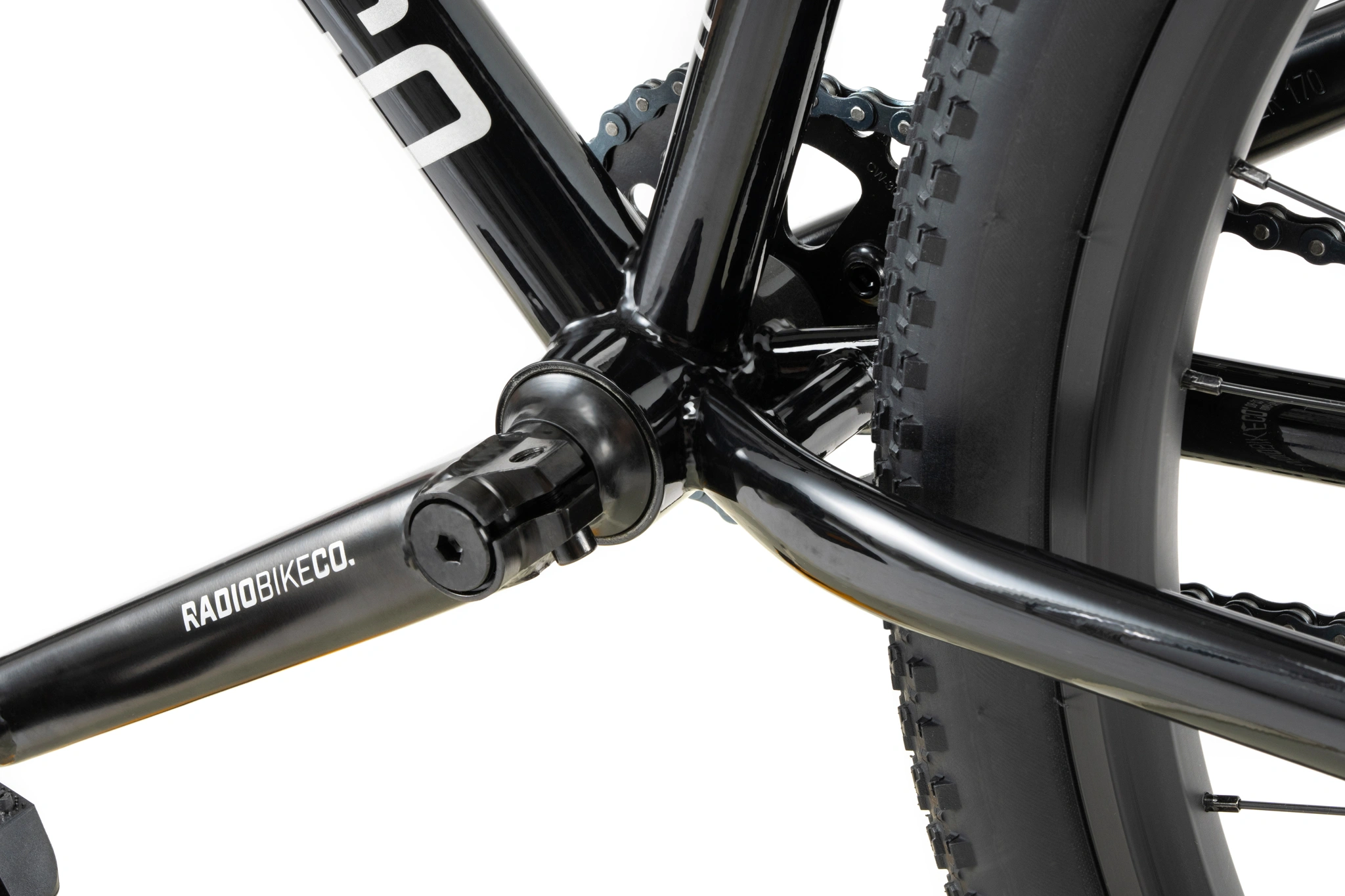

CRANK: RADIO “PRO” 3pc crank, tubular, crmo, 170mm, 8 spline
BB: RADIO “MID” bb set, press fit, sealed bearing

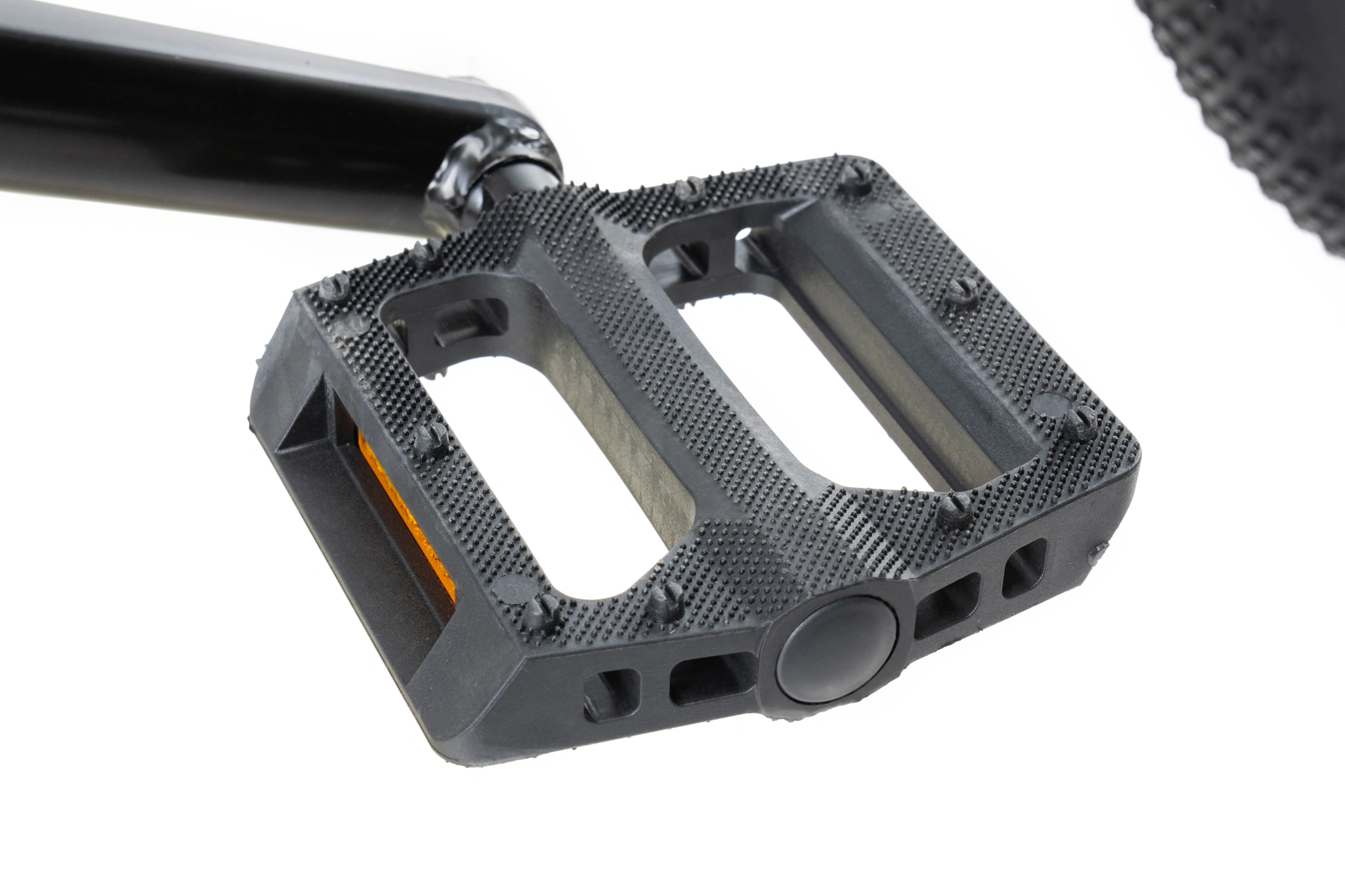

PEDALS: RADIO “SLIM” pedals, nylon/fiberglass
CHAIN: SALT “AM” chain, WZ1 type

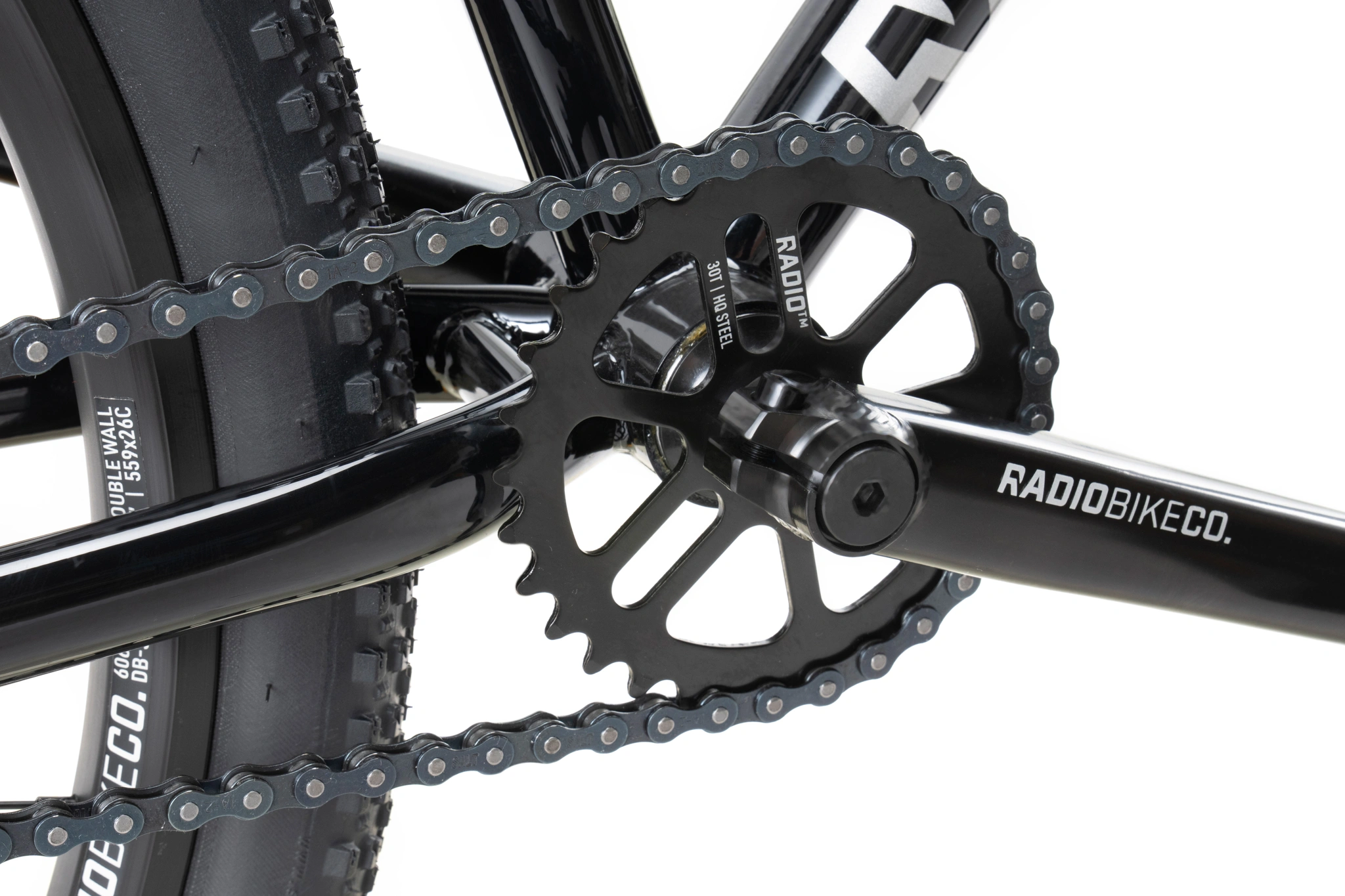

SPROCKET: RADIO “ROOKIE” sprocket, steel, 30t
DRIVER: ATA freewheel, 14t, crmo

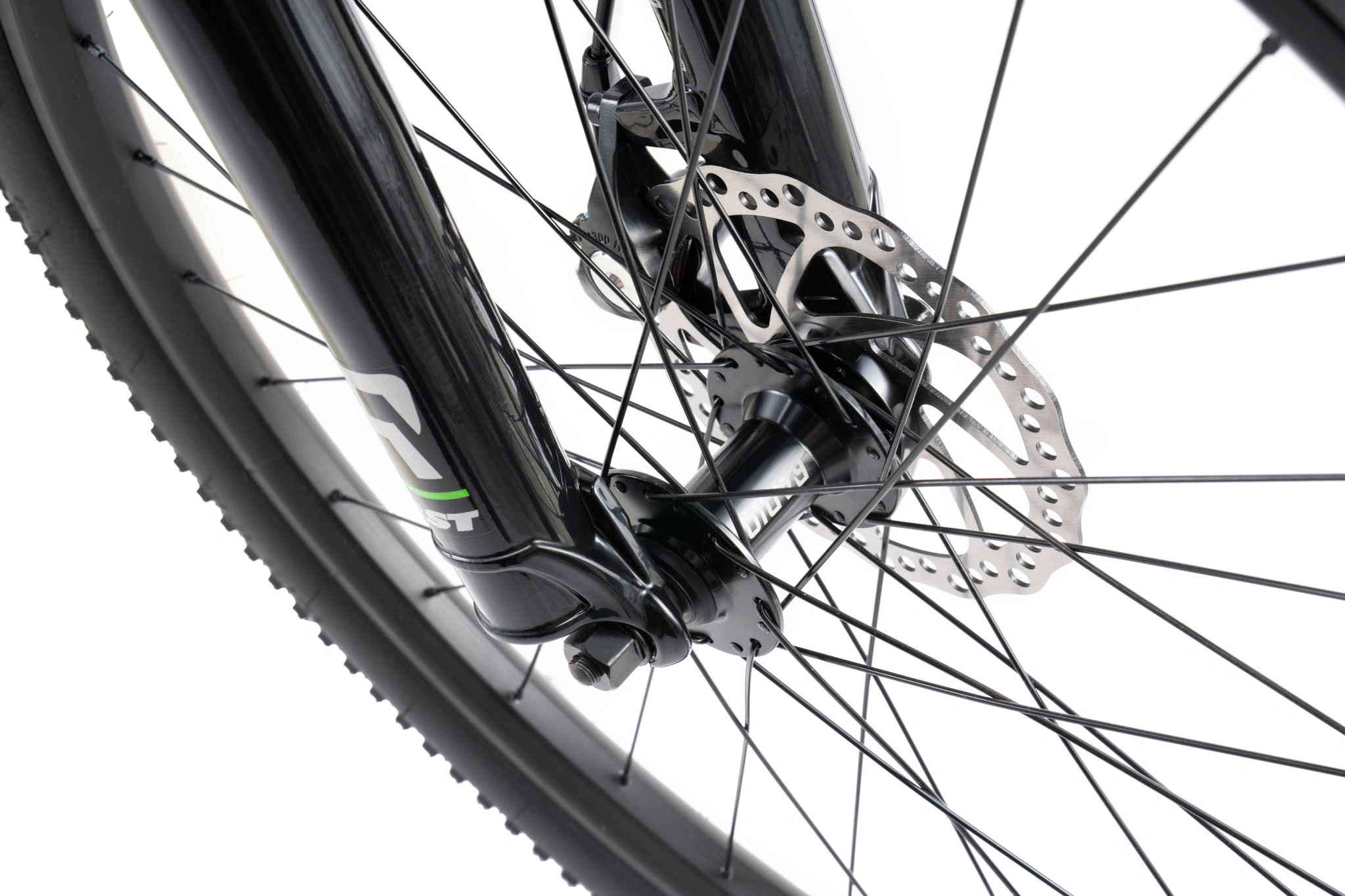

FRONT HUB: RADIO “ROOKIE-DJ” disc hub, alloy, loose ball, 3/8″s crmo axle, 32h

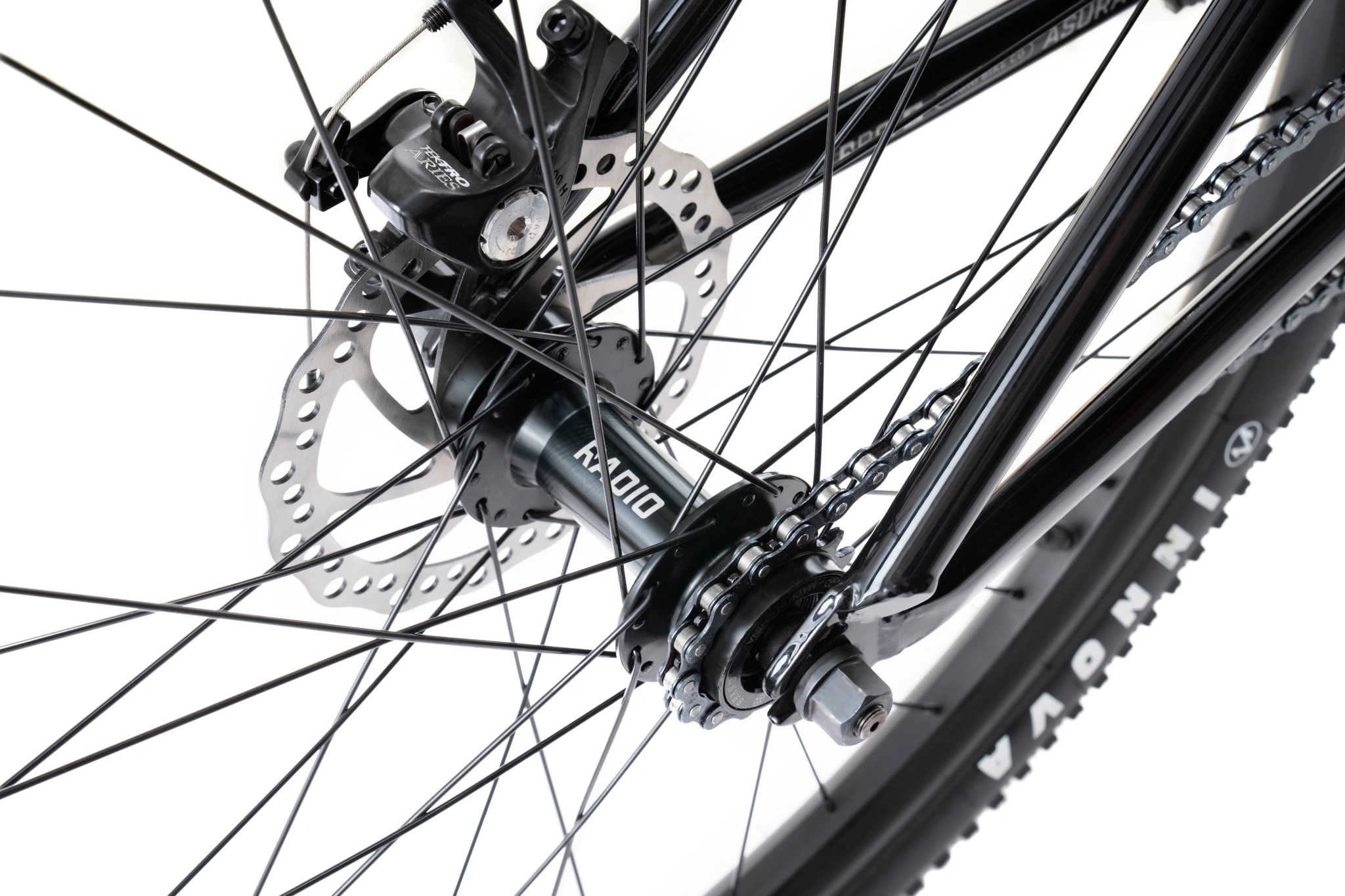

REAR HUB: RADIO “ROOKIE-DJ” disc hub, alloy, sealed, 3/8″s crmo axle, 32h
FRONT RIM: RADIO “DB32” rim, double wall
REAR RIM: RADIO “DB32” rim, double wall

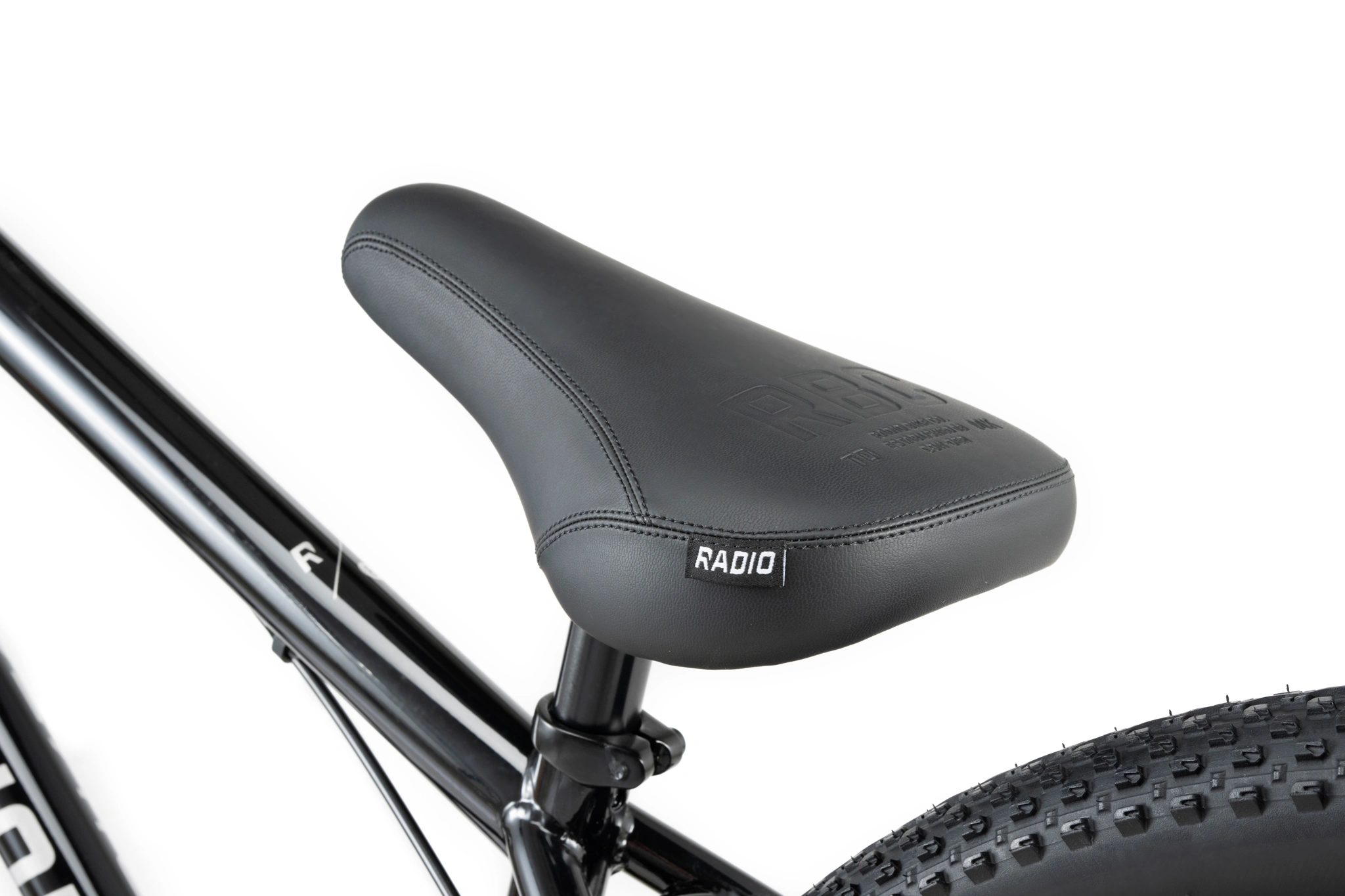

SEAT: RADIO “DJ” combo seat, medium padded
SEAT CLAMP: RADIO “SLIM” seat clamp, alloy

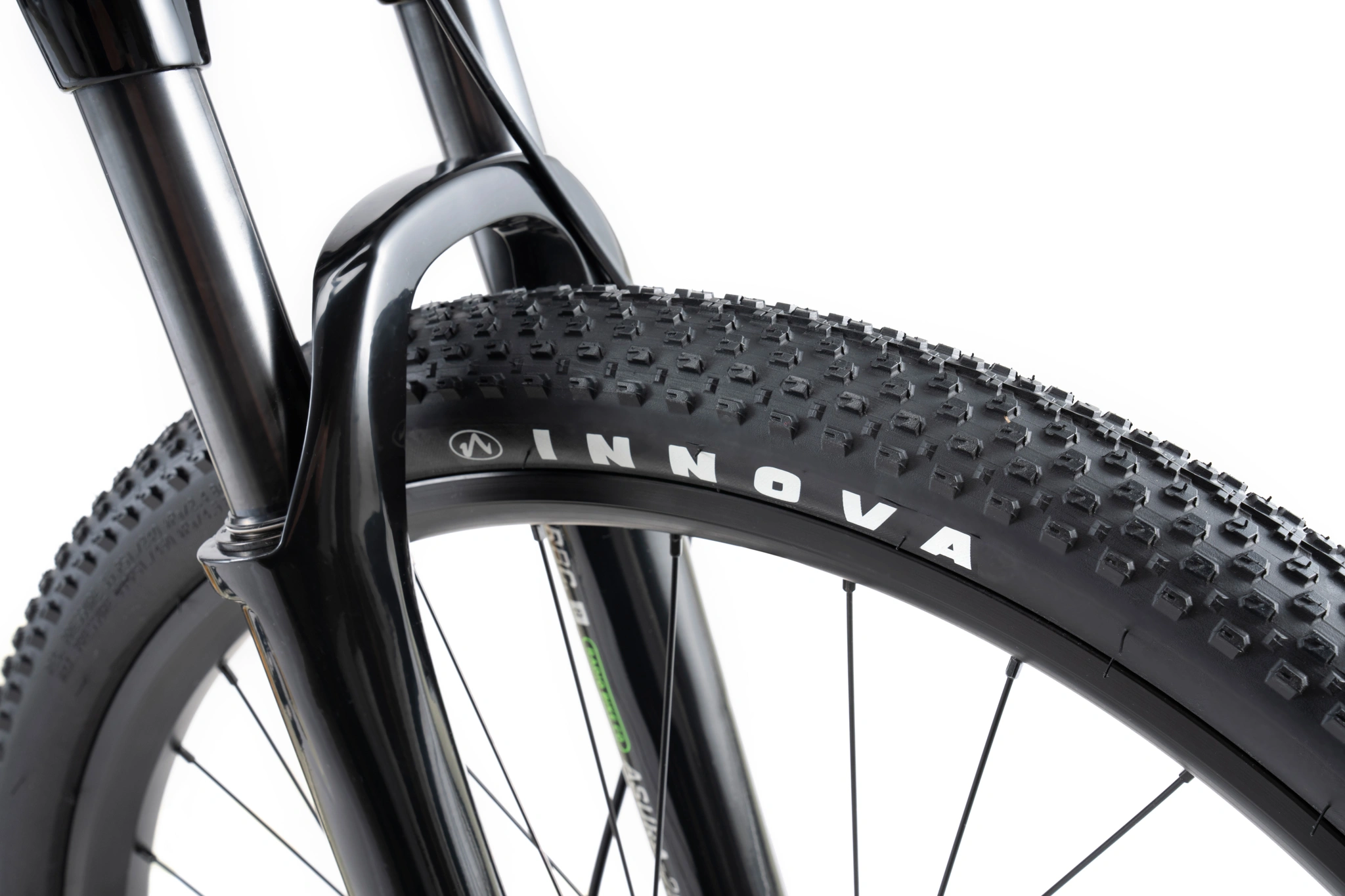

TIRES: RADIO “DJ1131″ tires, 2.0″, front & rear
Weight: 14.04kg / 30.89lbs
Frame Geometry:
Top Tube Length 22.7″
Chain Stay Length 15.5″
Head Tube Angle 70°
Seat Tube Angle 72.5°
Bottom Bracket Height 4mm drop
Standover Height 10.5”
Handlebar Geometry:
Rise 50mm
Width 740mm
Backsweep 8°
Upsweep 3°
