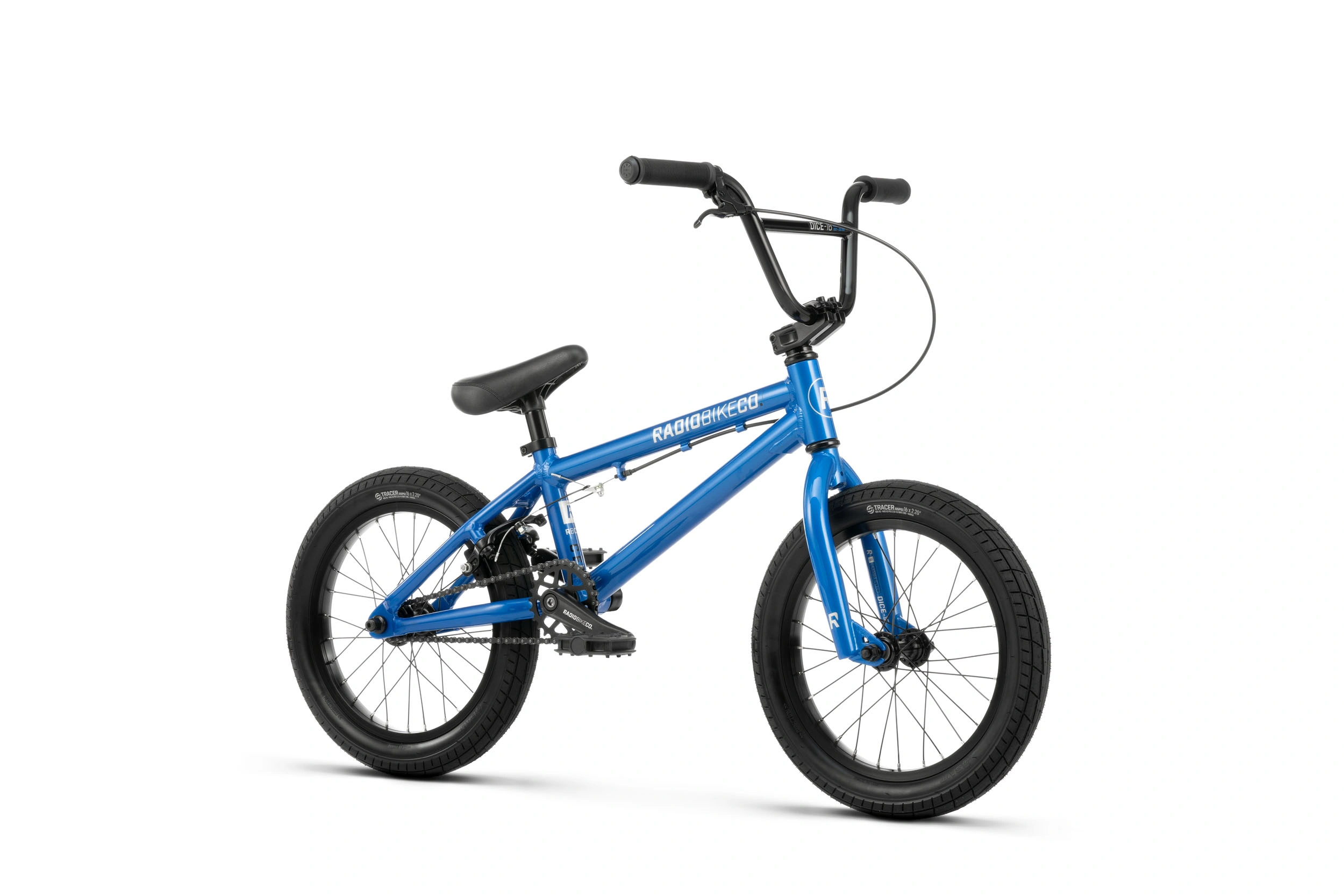

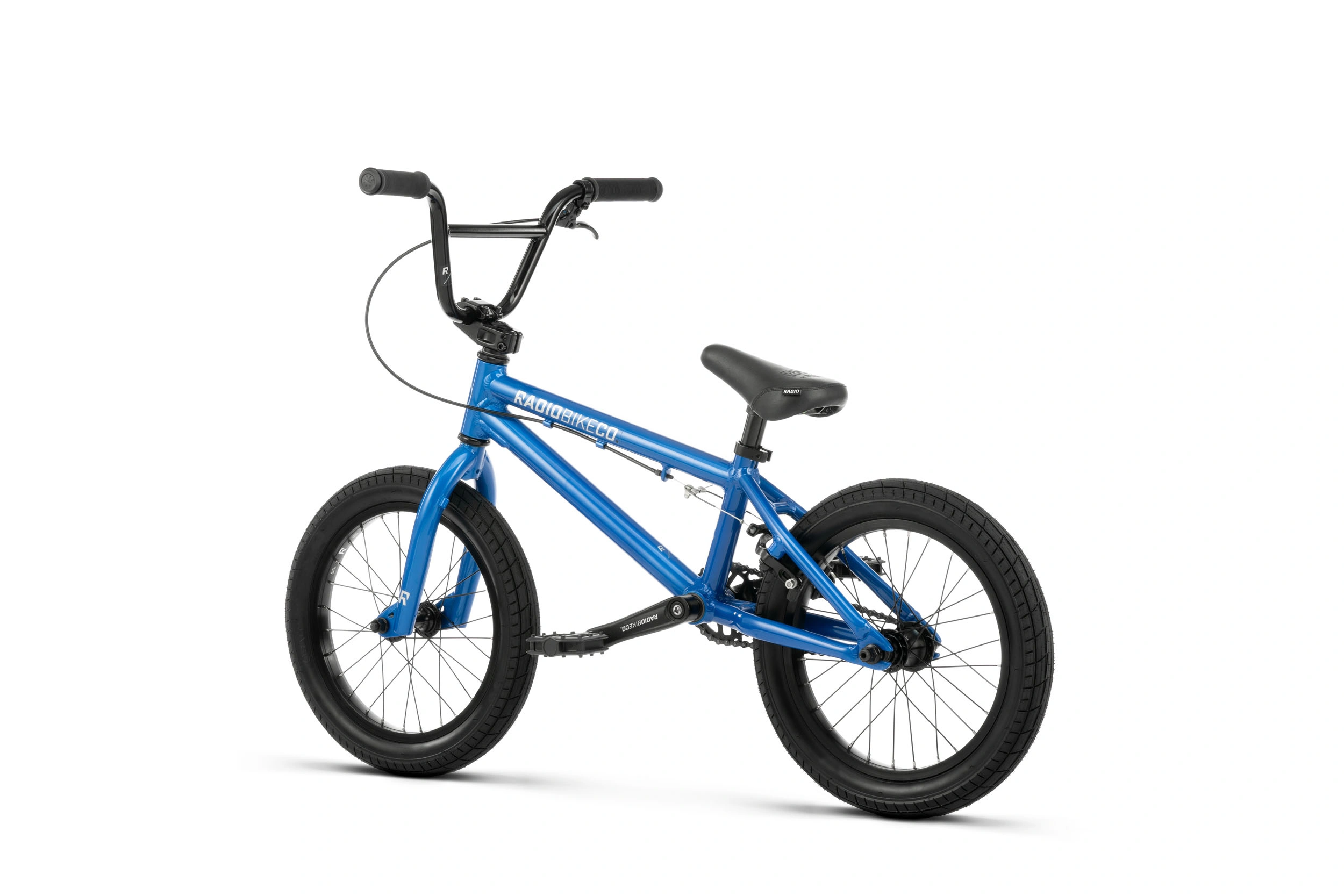

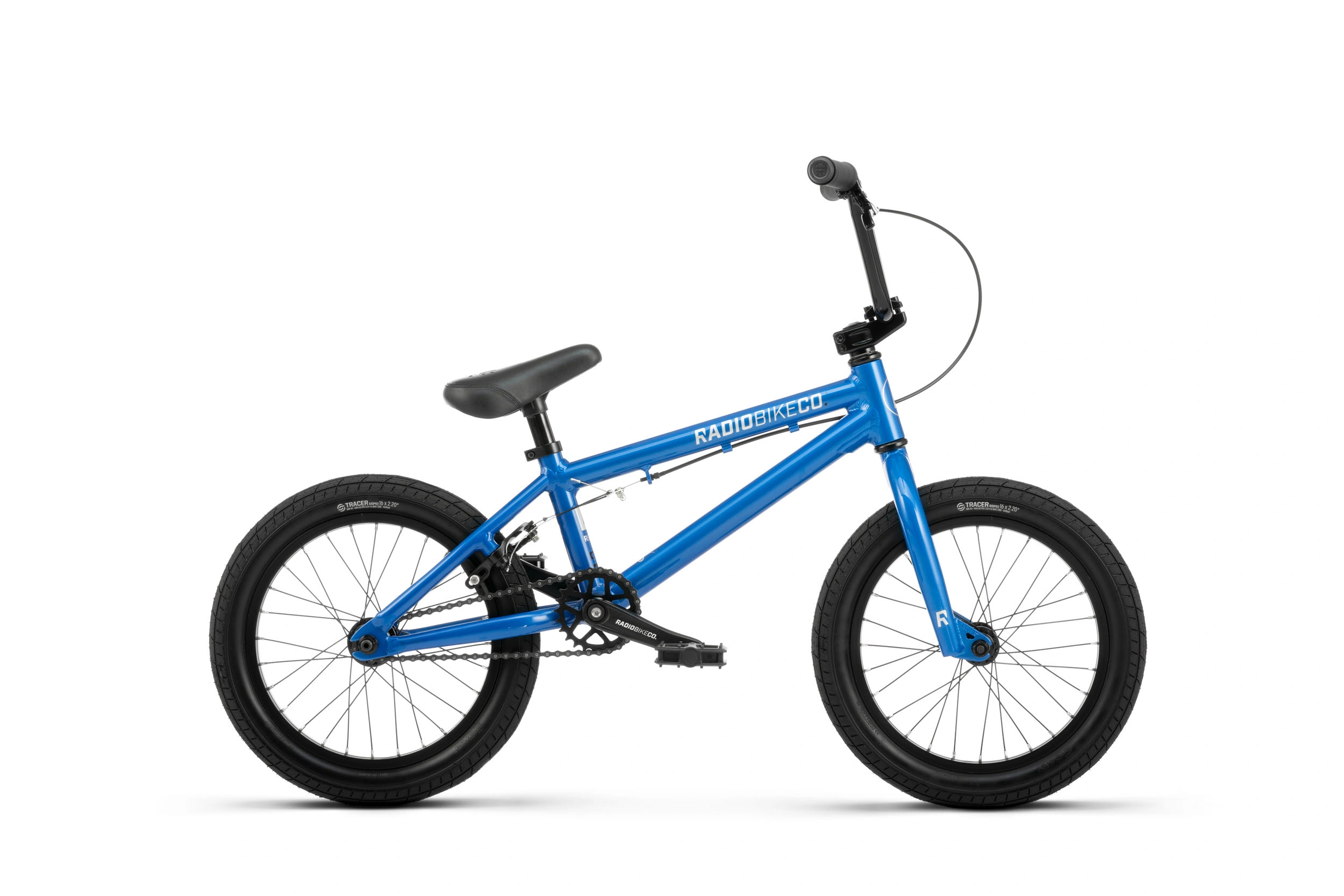

Pay in three equal instalments 3 x FRAME: RADIO “DICE 16” frame, full 6061 alloy
FORK: RADIO “ROOKIE 16” fork, 1020 hi-ten, tapered legs
HANDLEBAR: RADIO “ROOKIE 16” bar, 1020 hi-ten
GRIPS: RADIO “AM” grips, flangless, 130mm

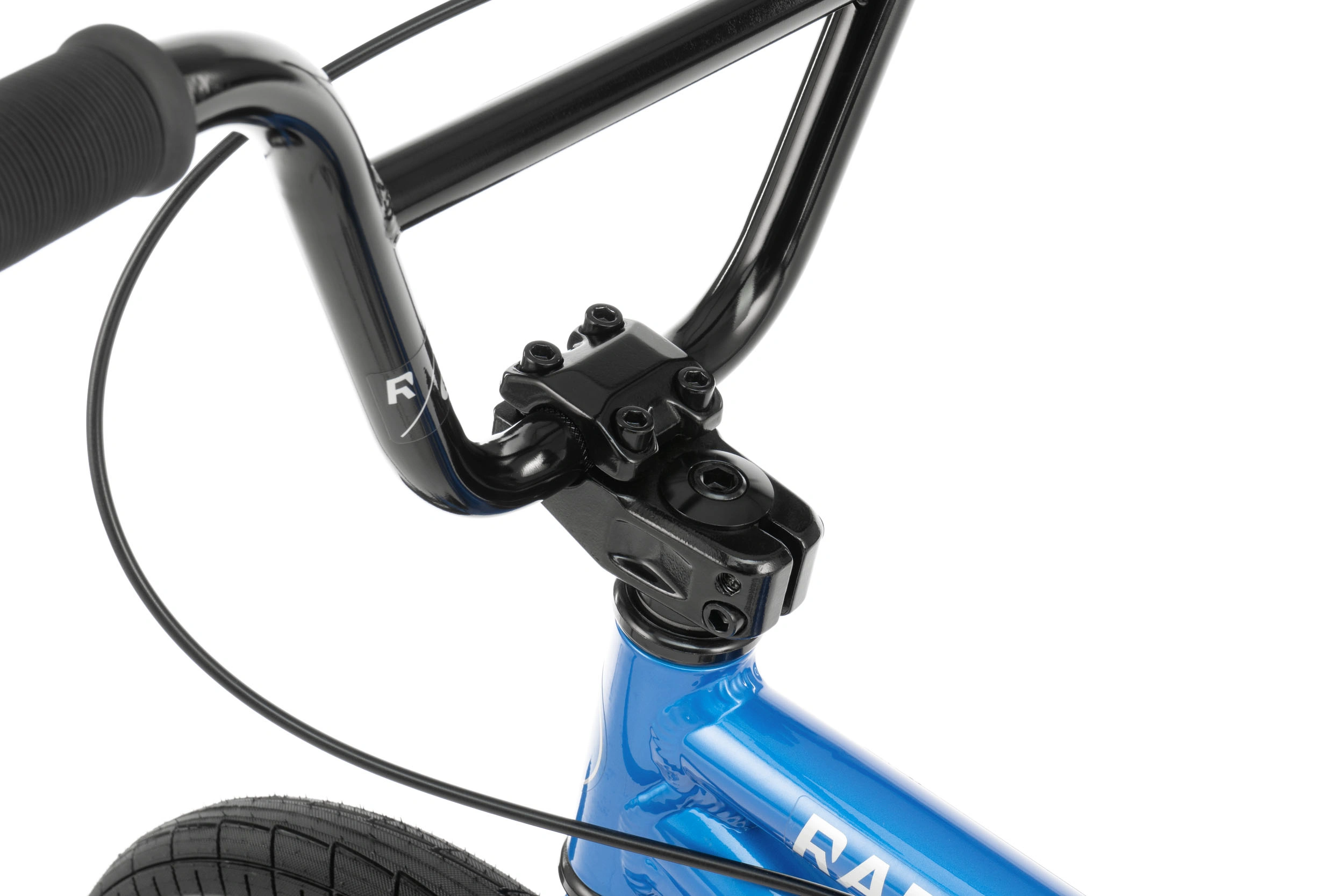

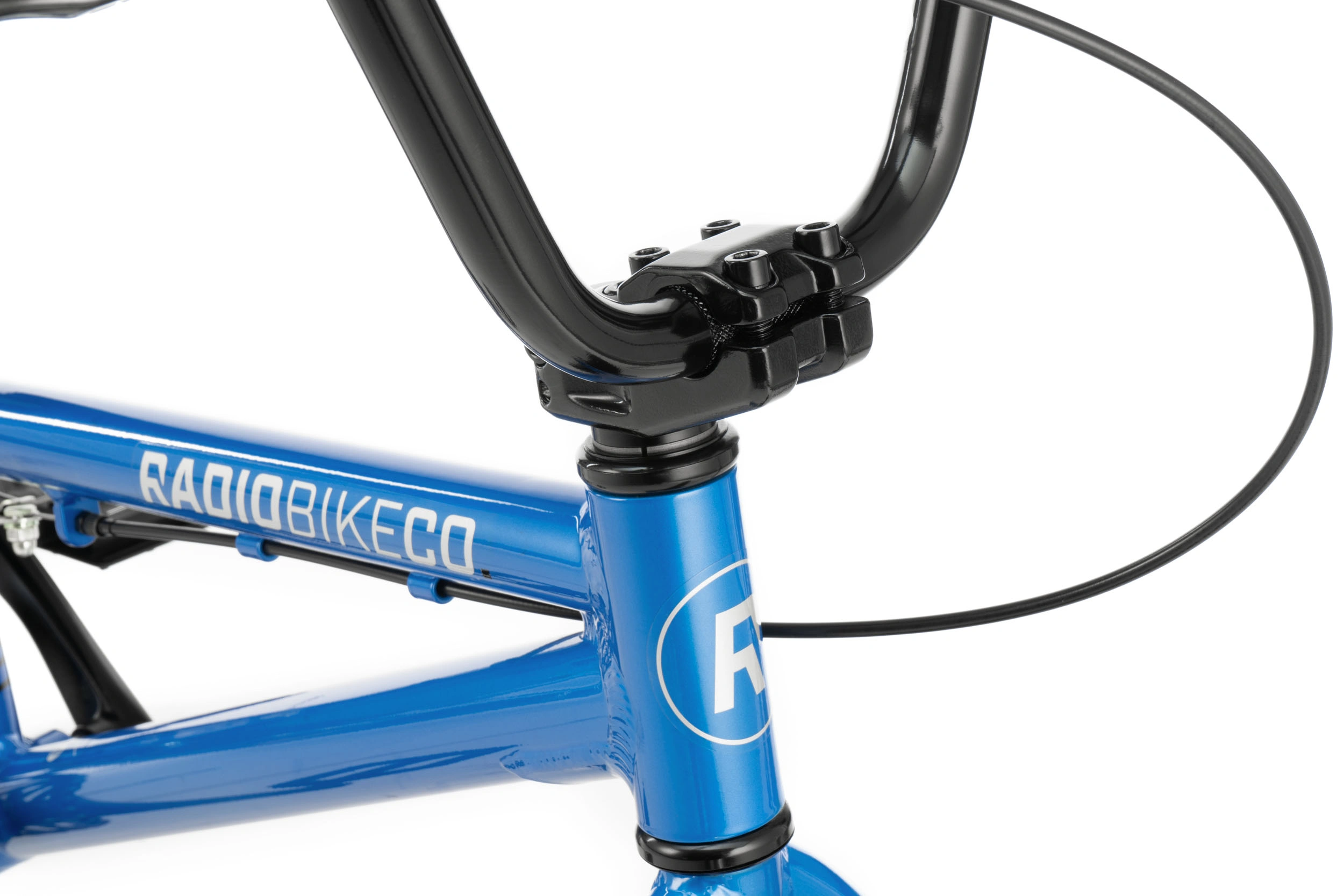

STEM: RADIO “JUNIOR” topload stem, 40mm reach
HEADSET: FSA A-headset, loose ball
BRAKE LEVER: RADIO “JUNIOR 16” brake lever, alloy, front & rear
BRAKE: RADIO “AM” caliper brake, alloy, front / RADIO “AM-U” u-brake, alloy, rear

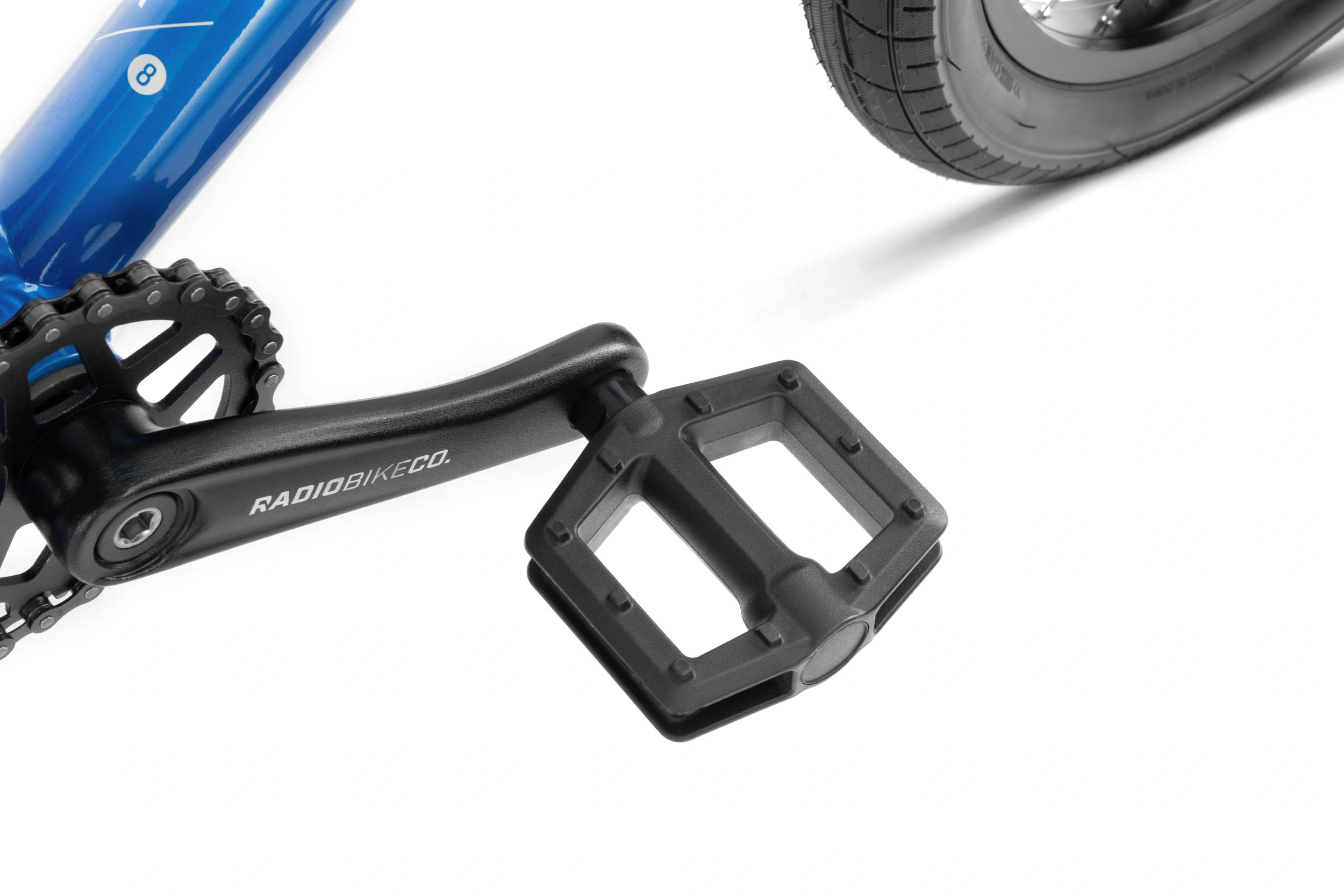

CRANK: RADIO “JUNIOR 16” 3pc crank, forged alloy, 127mm
BB: BSA (68) bb set, 19mm, sealed, JIS taper
PEDALS: RADIO “VP225” pedals, nylon/fiberglass
CHAIN: KMC “S1” chain

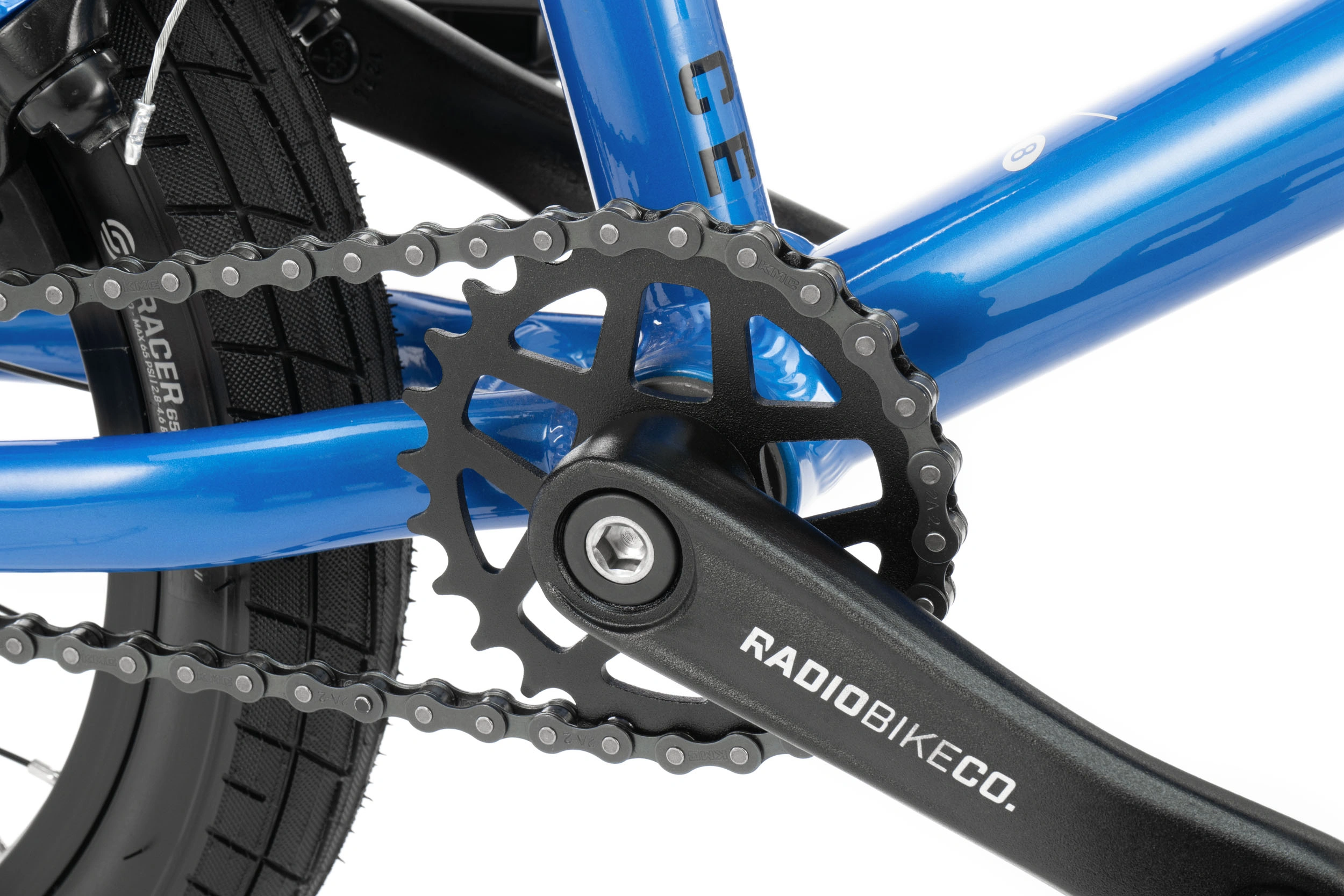

SPROCKET: RADIO “JUNIOR” sprocket, steel, 25t
DRIVER: cassette driver, 10t, lb

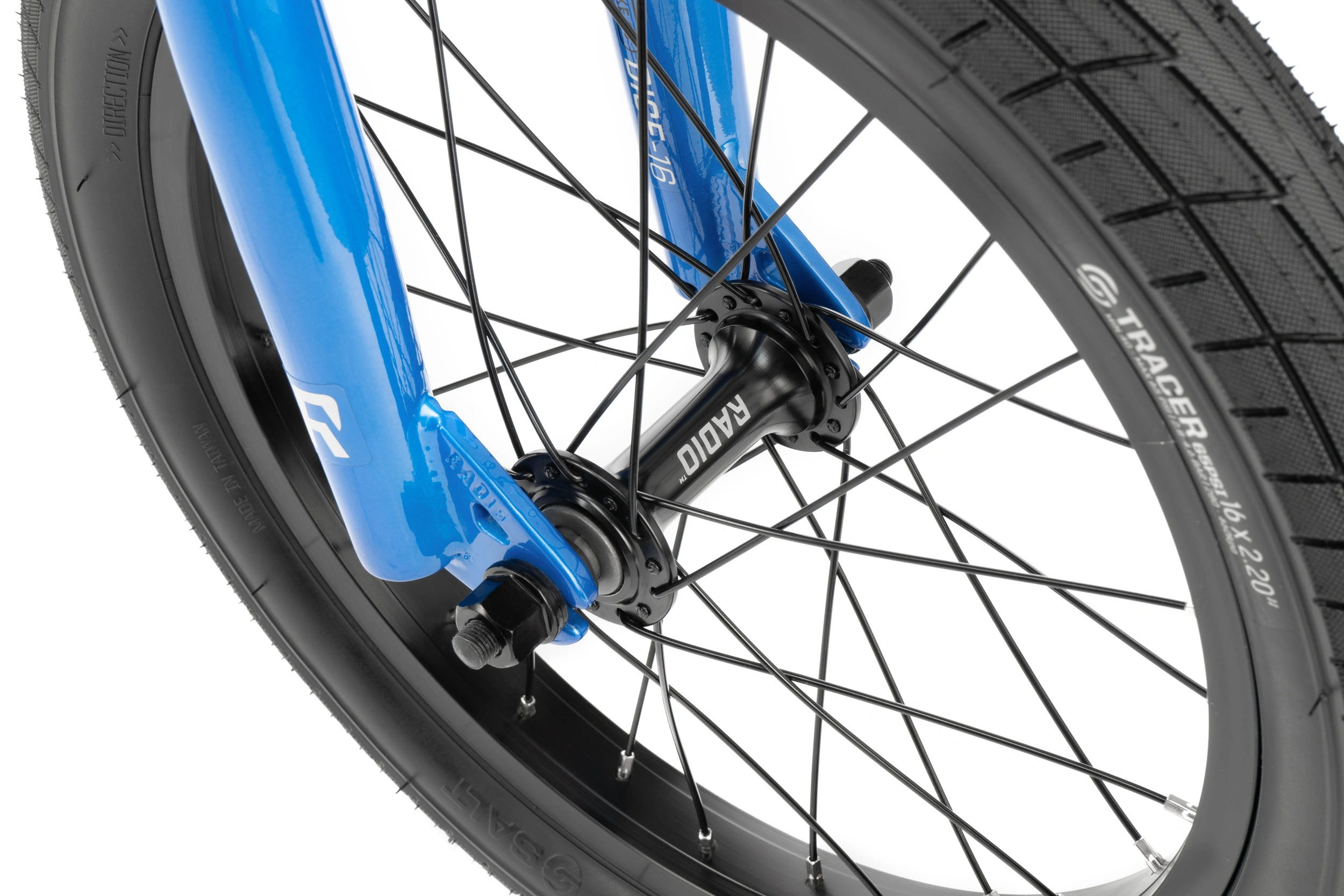

FRONT HUB: RADIO “AM” hub, alloy, loose ball, 3/8″s male axle, 28h

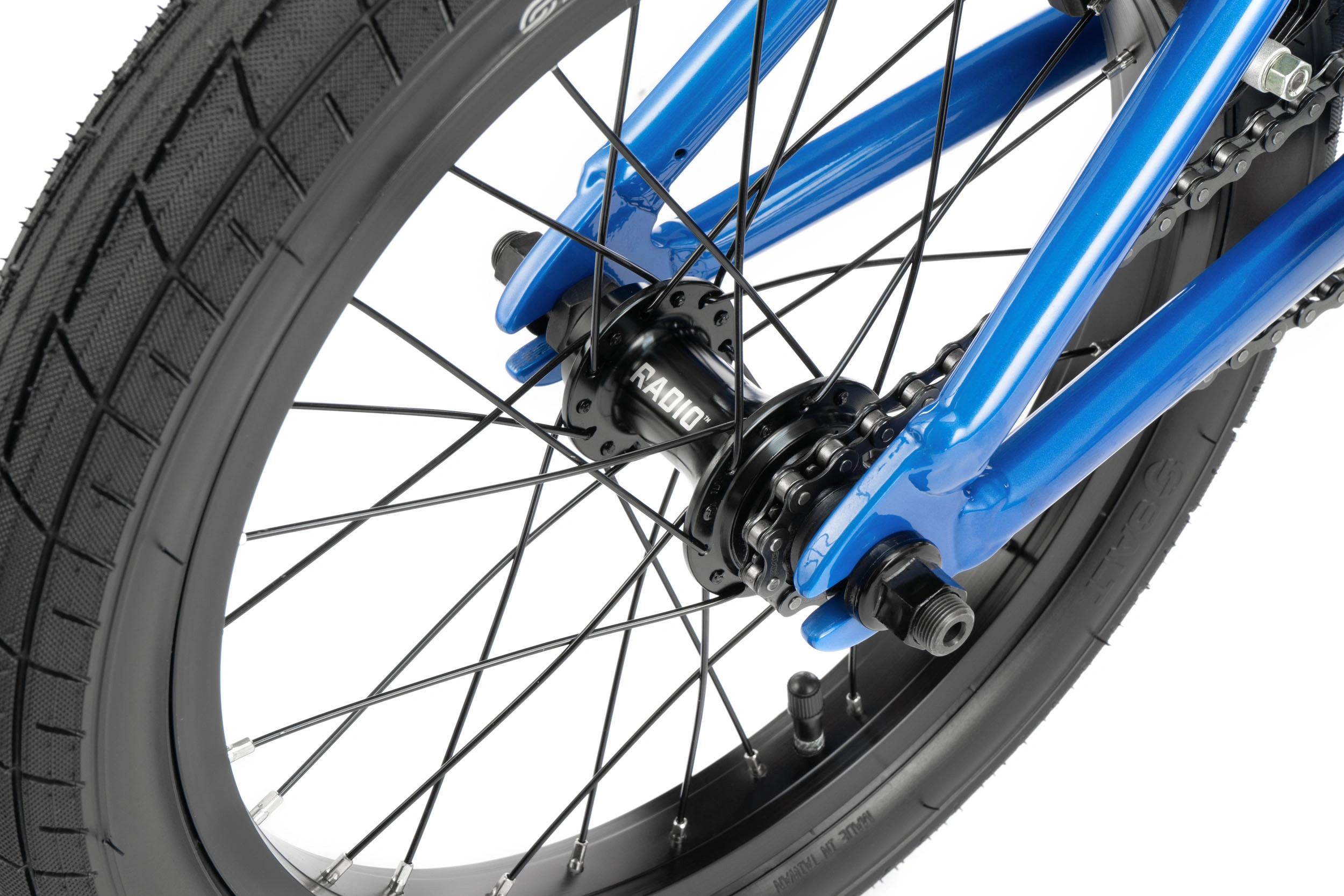

REAR HUB: RADIO “AM” cassette hub, alloy, semi-sealed, 10t, 3/8″s axle, 28h
FRONT RIM: RADIO “ROOKIE” rim, single wall
REAR RIM: RADIO “ROOKIE” rim, single wall

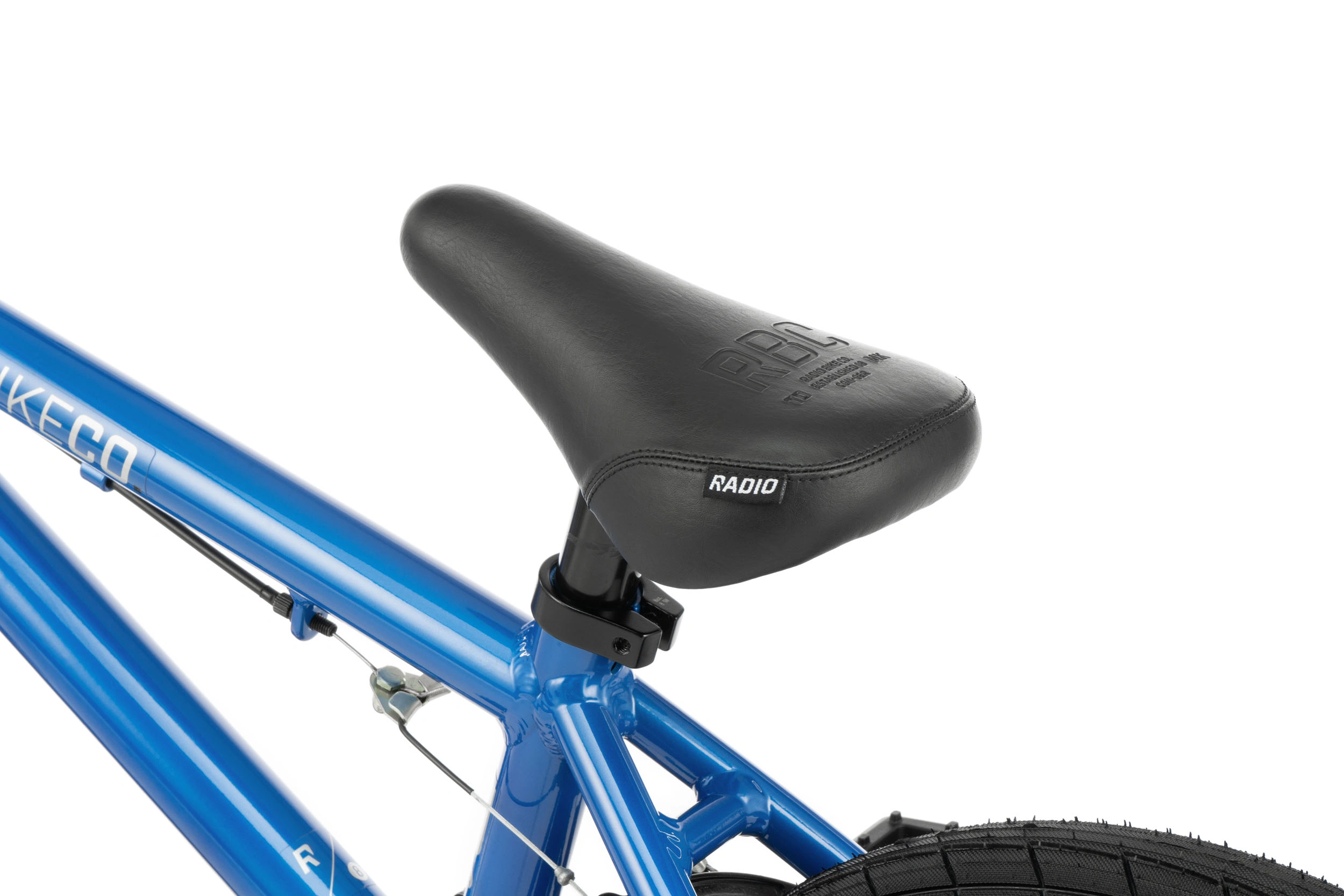

SEAT: RADIO “ROOKIE” combo seat
SEAT CLAMP: RADIO “SLIM” seat clamp, alloy

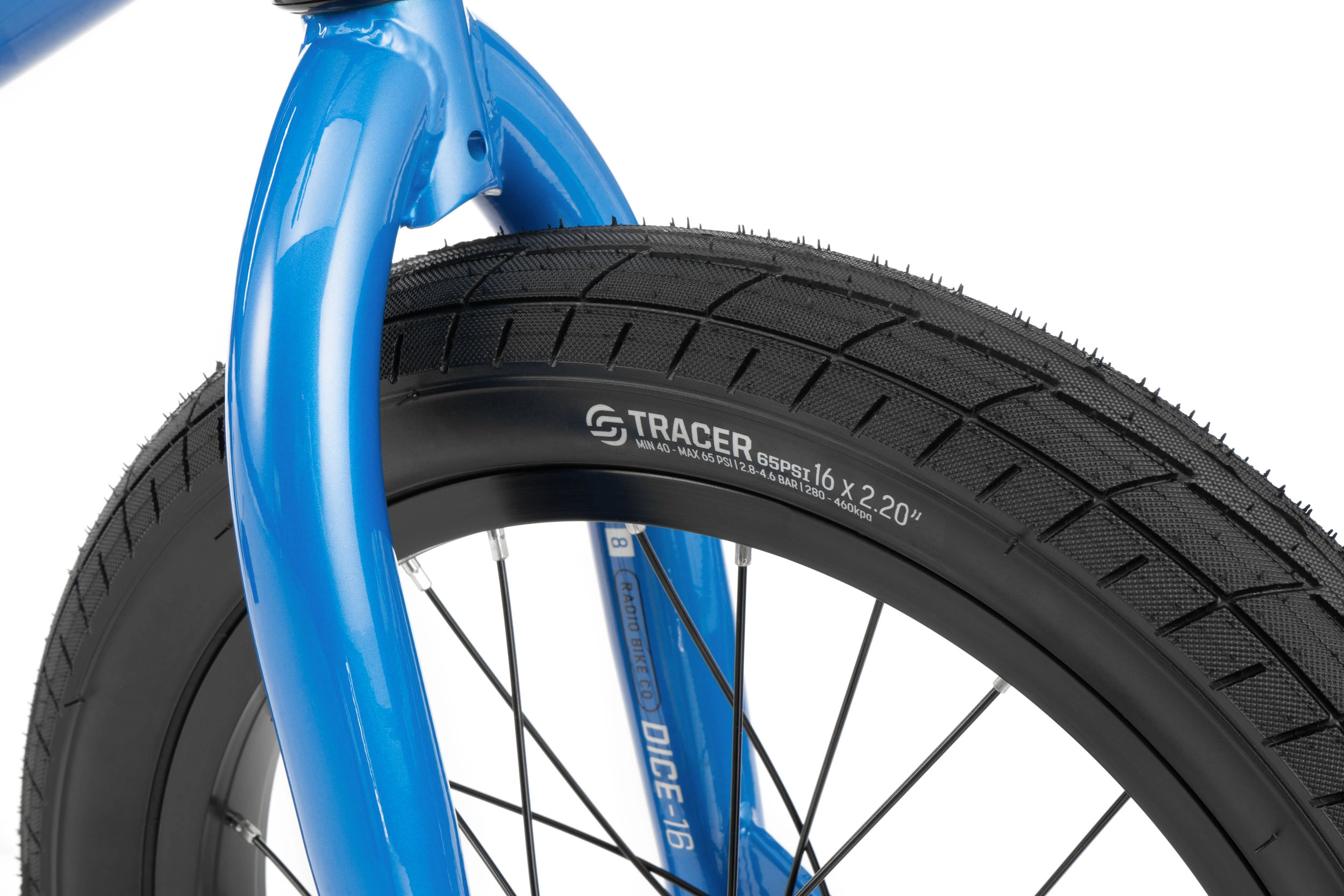

TIRES: SALT “TRACER” tires, 2.2″, front & rear
Weight: 8.46kg / 18.65lbs
Frame Geometry:
Top Tube Length 16″
Chain Stay Length 11.1″
Head Tube Angle 75°
Seat Tube Angle 71.5°
Bottom Bracket Height 9.75″
Standover Height 6.2″
Handlebar Geometry:
Rise 6.75″
Width 23.6″
Backsweep 10°
Upsweep 3°
