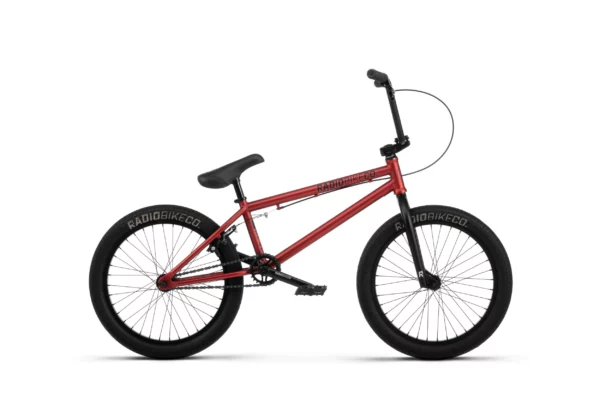

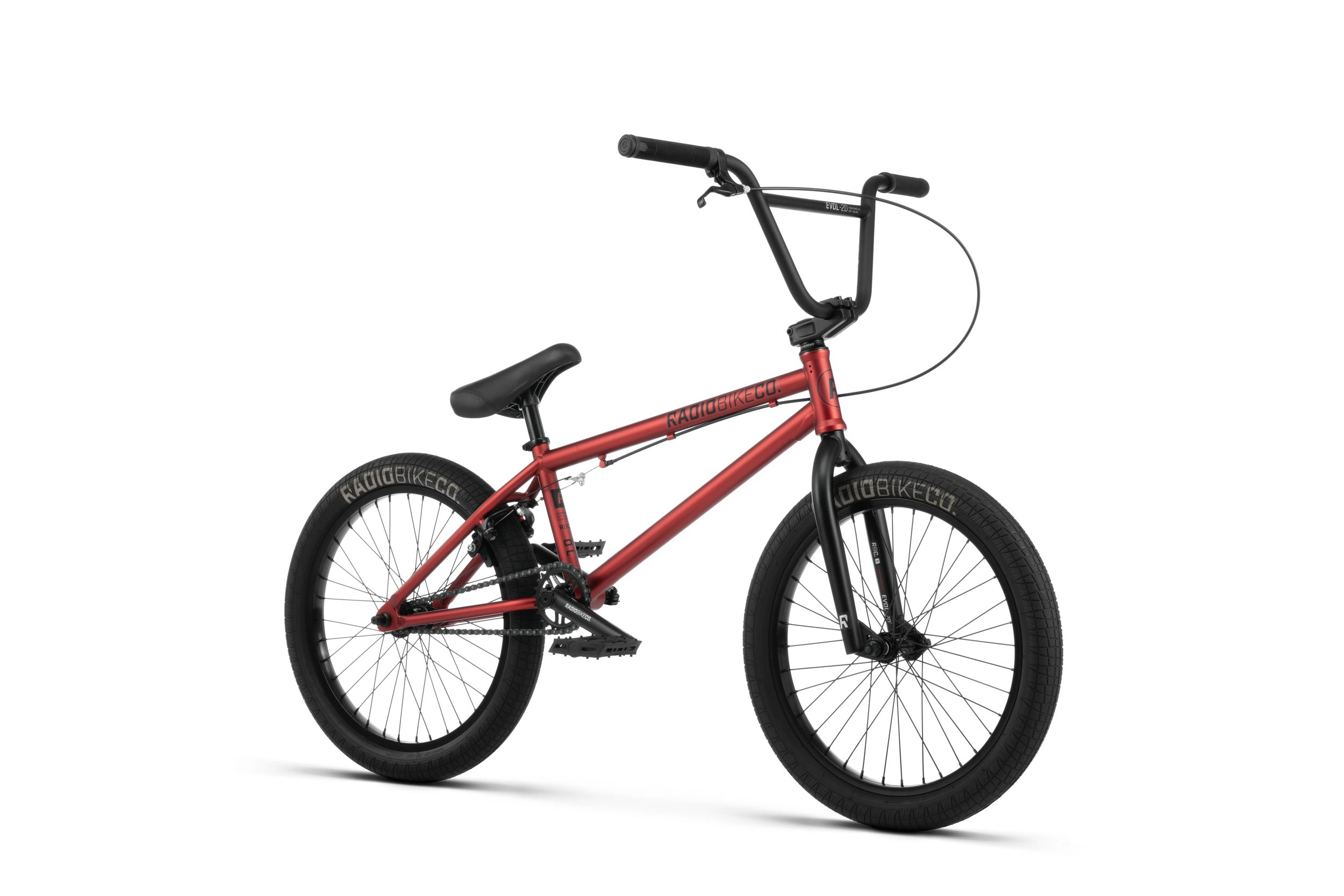

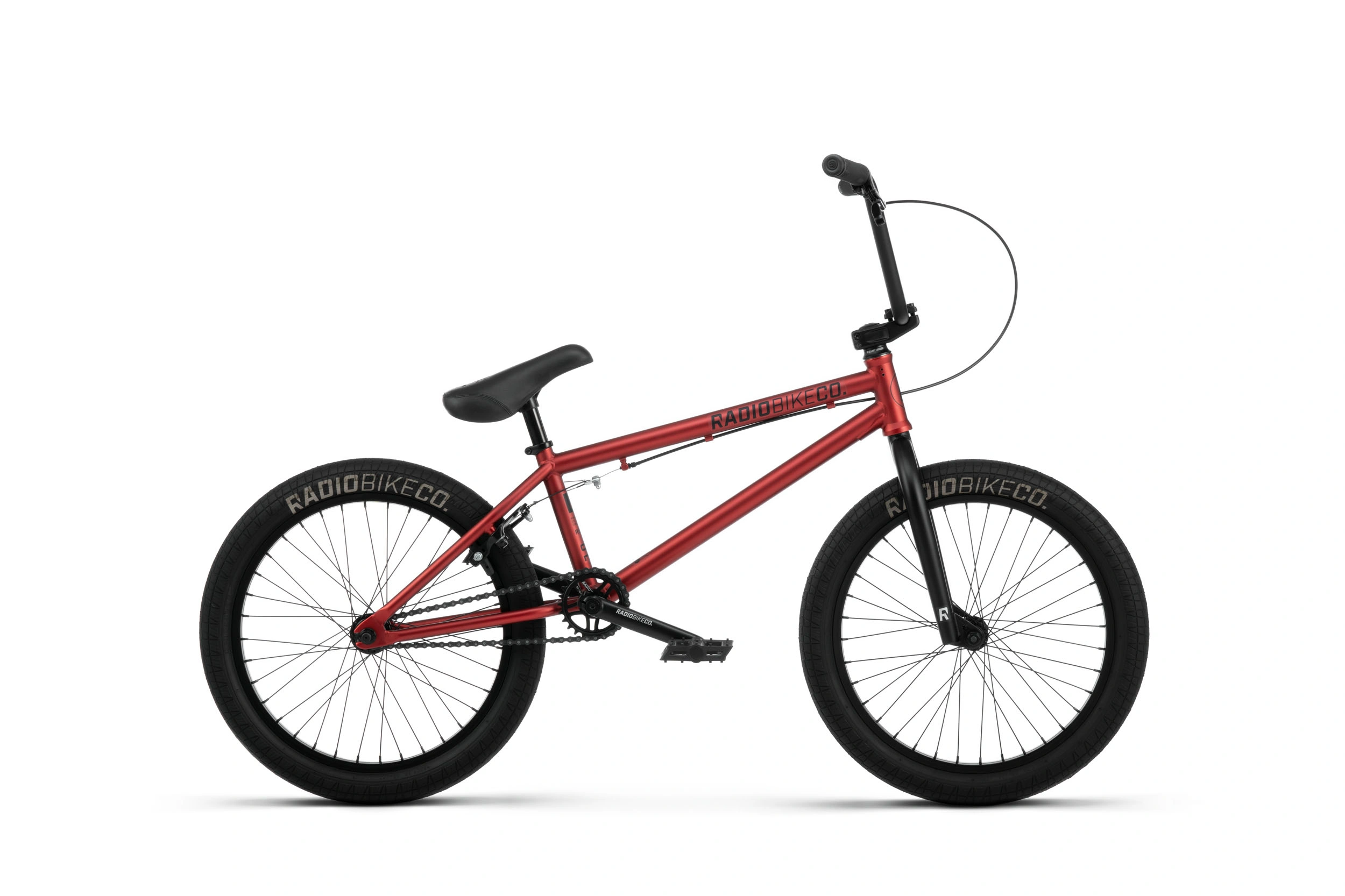

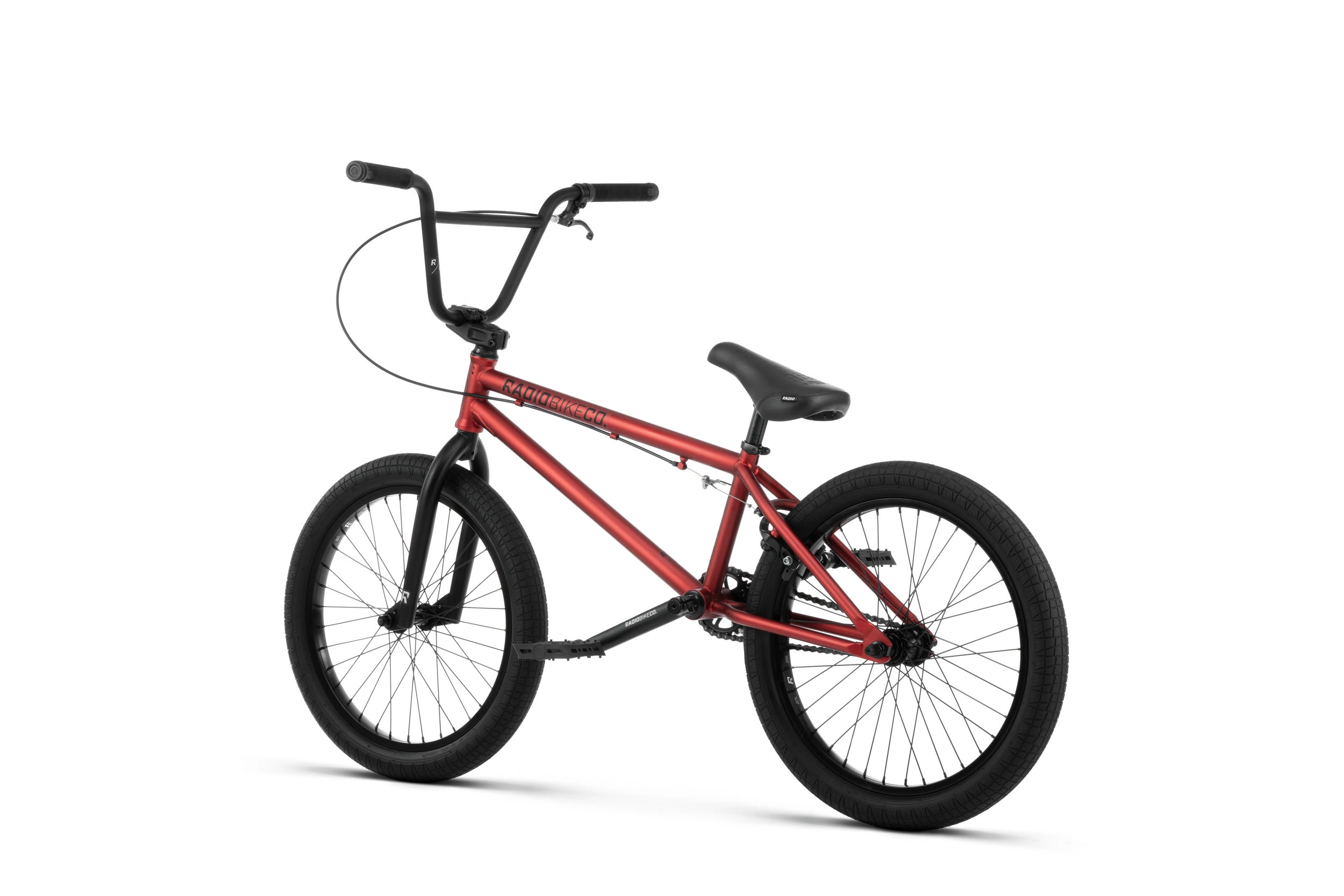

Pay in three equal instalments 3 x FRAME: RADIO “EVOL” frame, crmo top tube, 1020 hi-ten

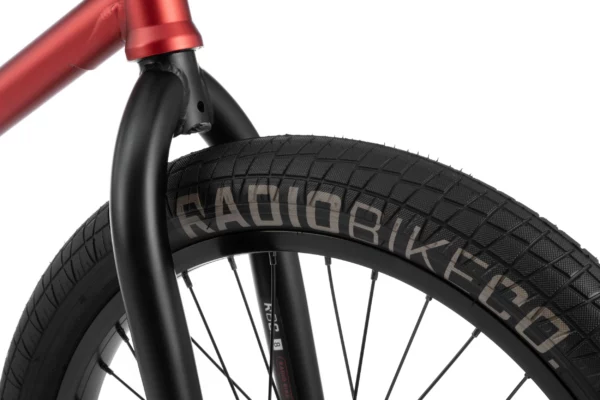

FORK: RADIO “AM” fork, 1020 hi-ten, crmo steerer, tapered legs

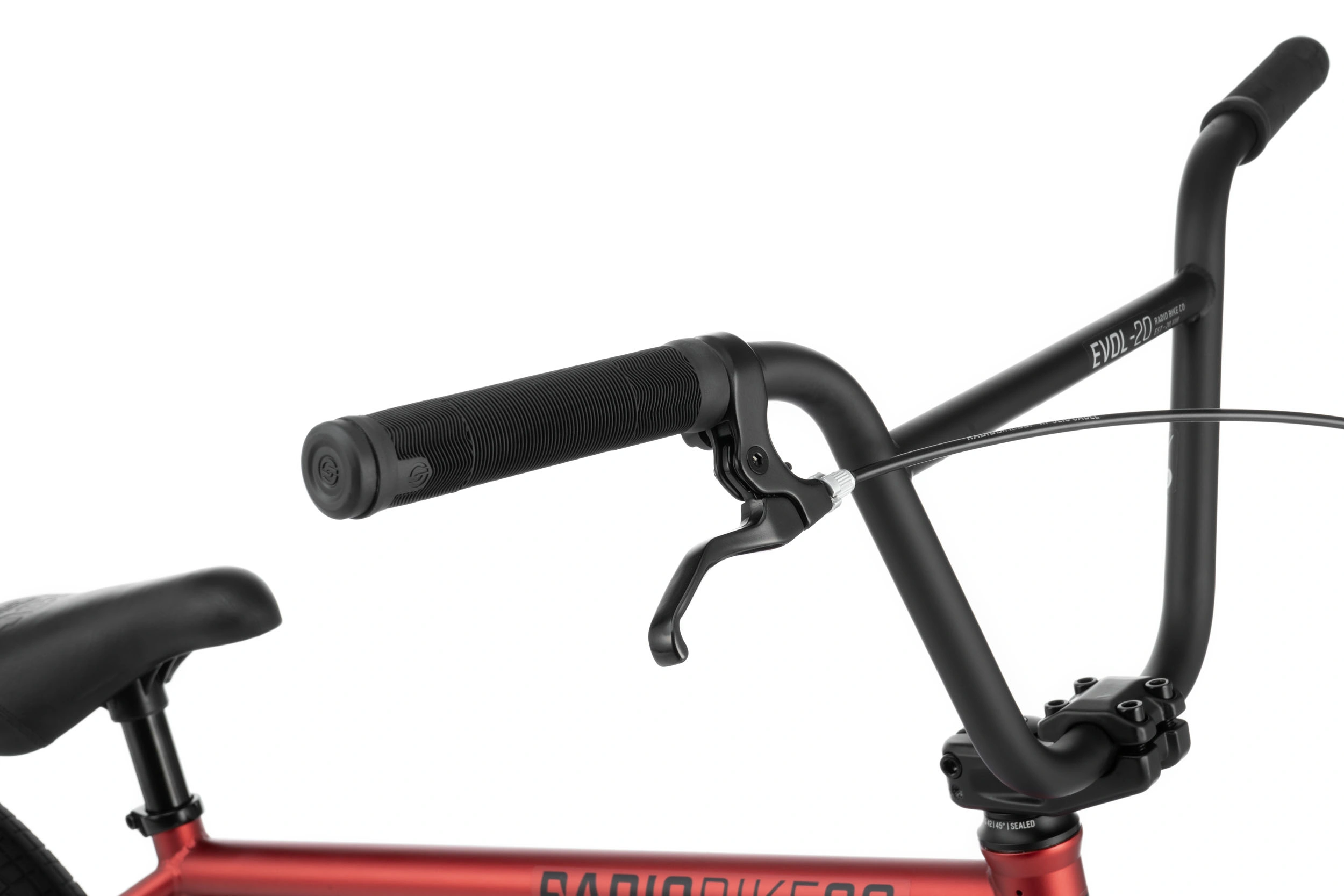

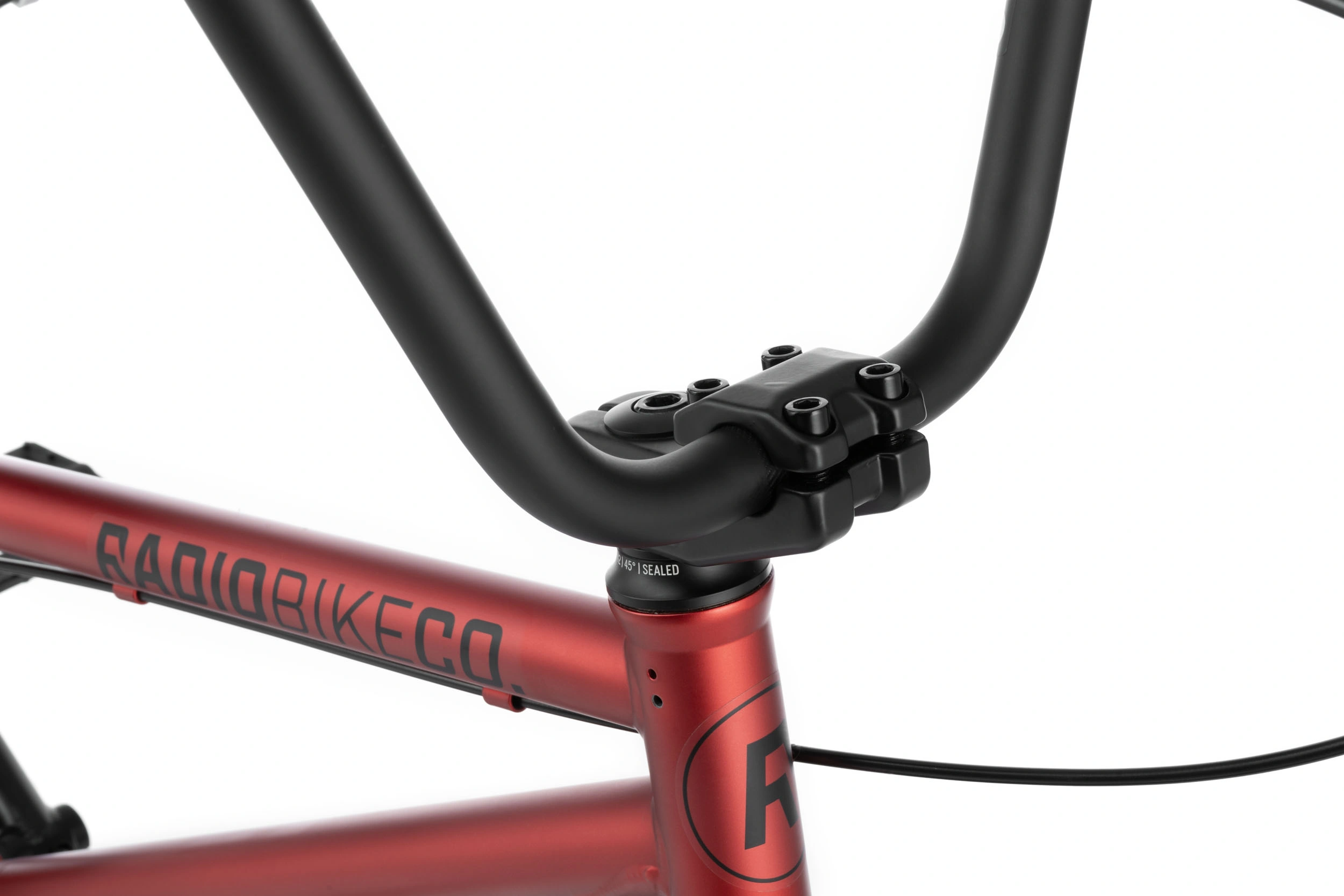

HANDLEBAR: RADIO “AM 20” bar, 1020 hi-ten
GRIPS: SALT “EX” grips, flangless, 155mm

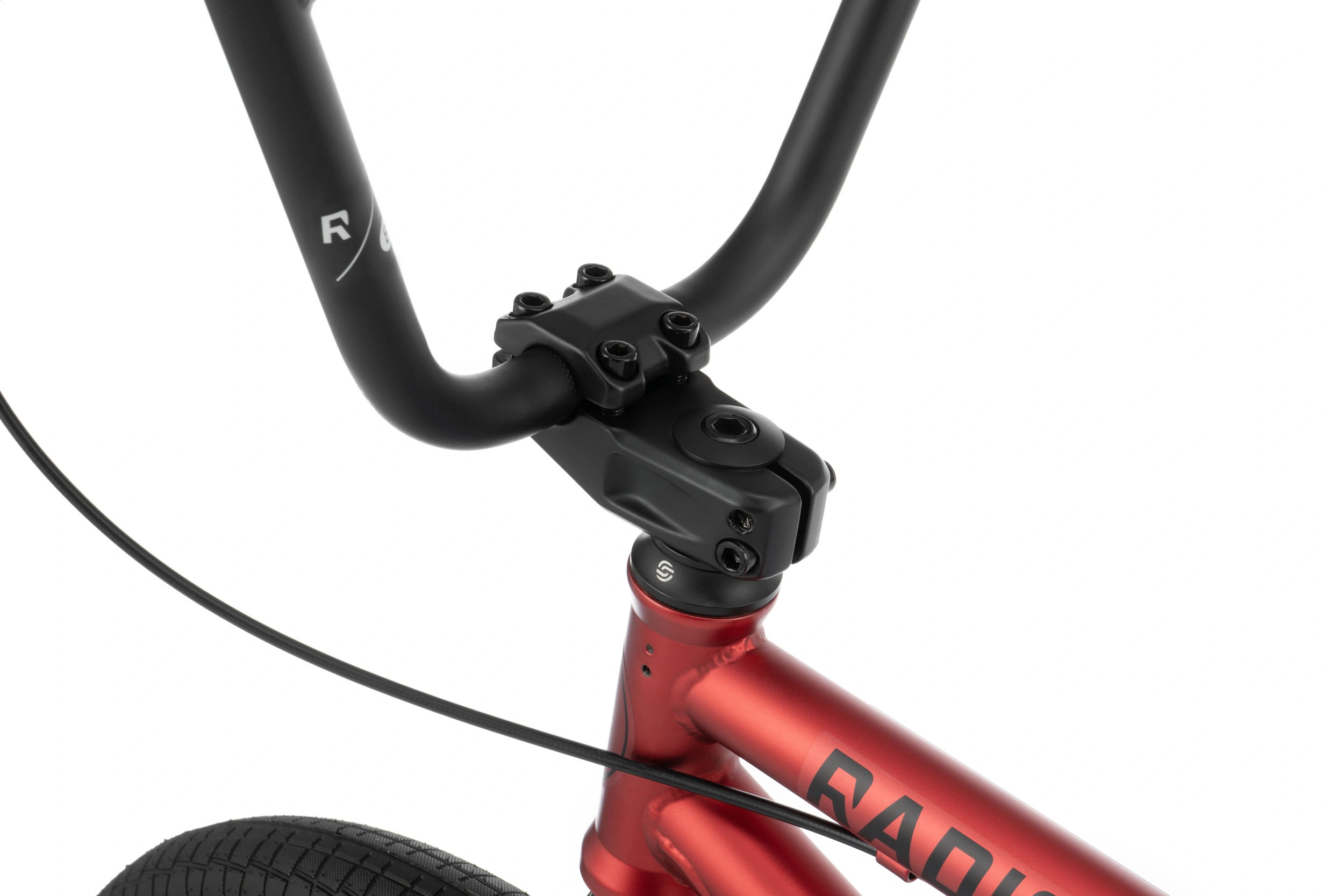

STEM: RADIO “AM” topload stem, 50mm reach
HEADSET: SALT “PRO” integrated headset, sealed bearing
ROTOR: holes for removable gyro tabs
BRAKE LEVER: RADIO “AM” brake lever, alloy, rear
BRAKE: RADIO “AM” u-brake, alloy, rear

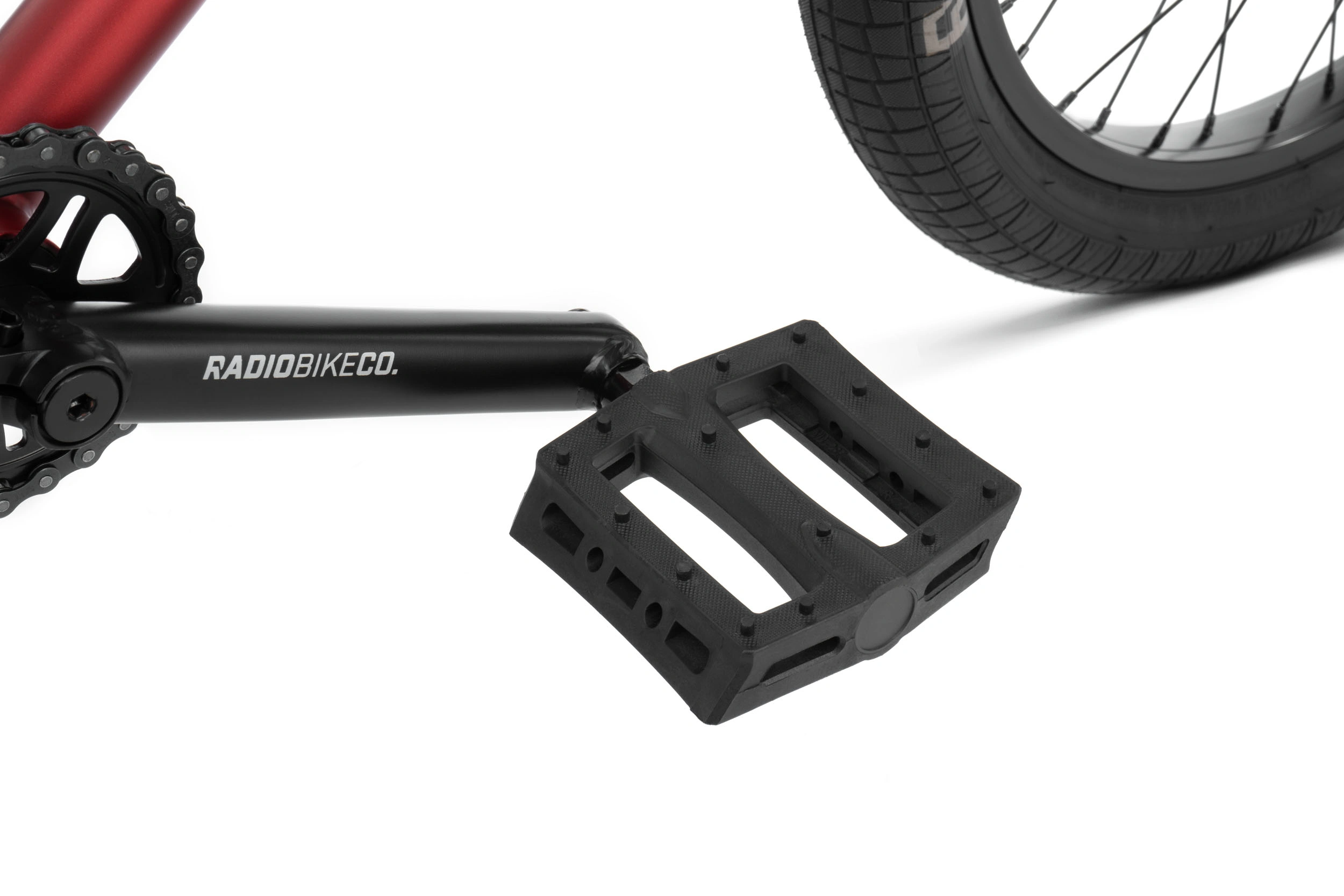

CRANK: RADIO “ROOKIE” 3pc crank, tubular, crmo, 165mm, 8 spline
BB: RADIO “MID” bb set, press fit, sealed bearing
PEDALS: RADIO “PRO” pedals, nylon/fiberglass
CHAIN: SALT “AM” chain, WZ1 type

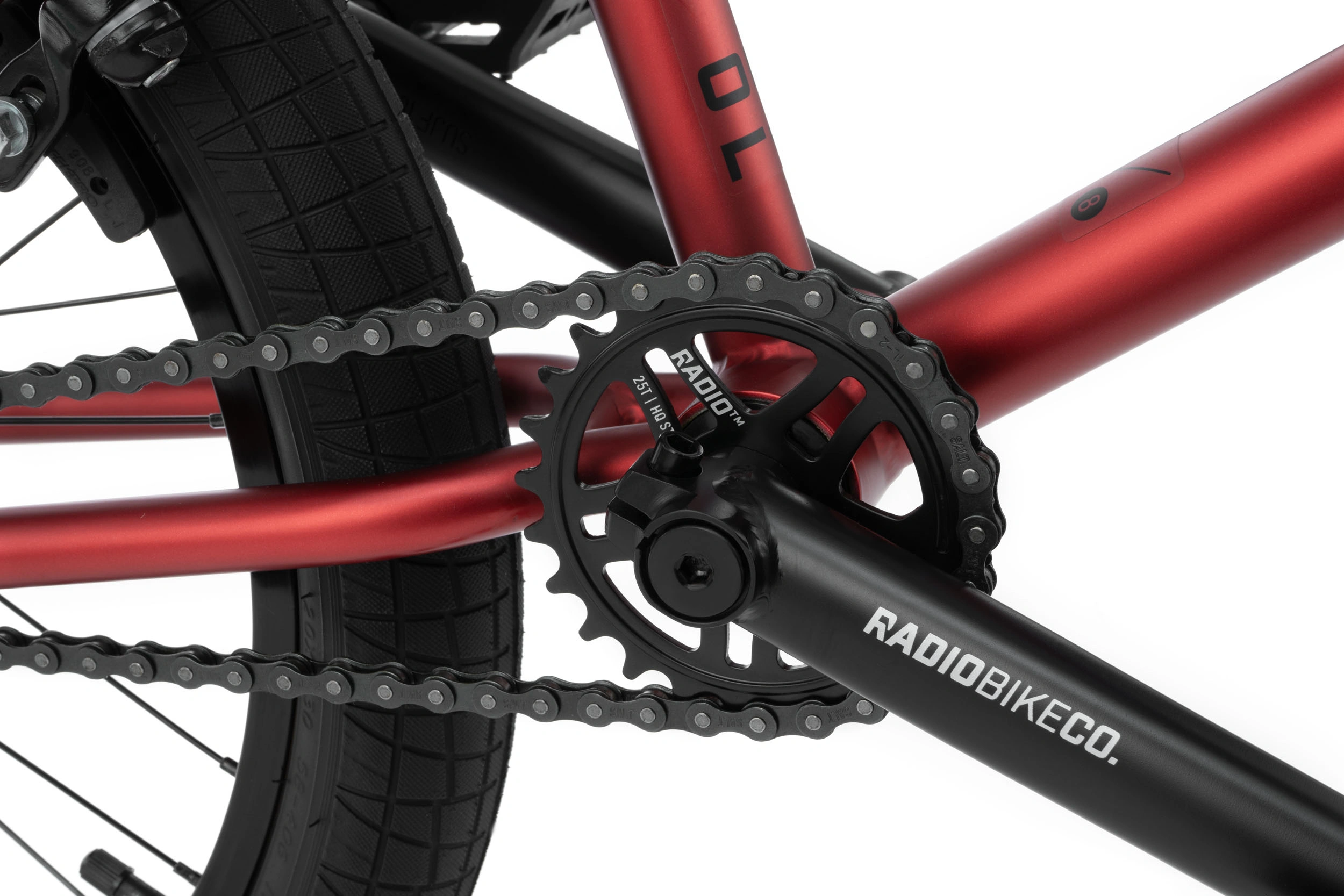

SPROCKET: RADIO “VISION” sprocket, steel, 25t
DRIVER: cassette driver, 9t, lb

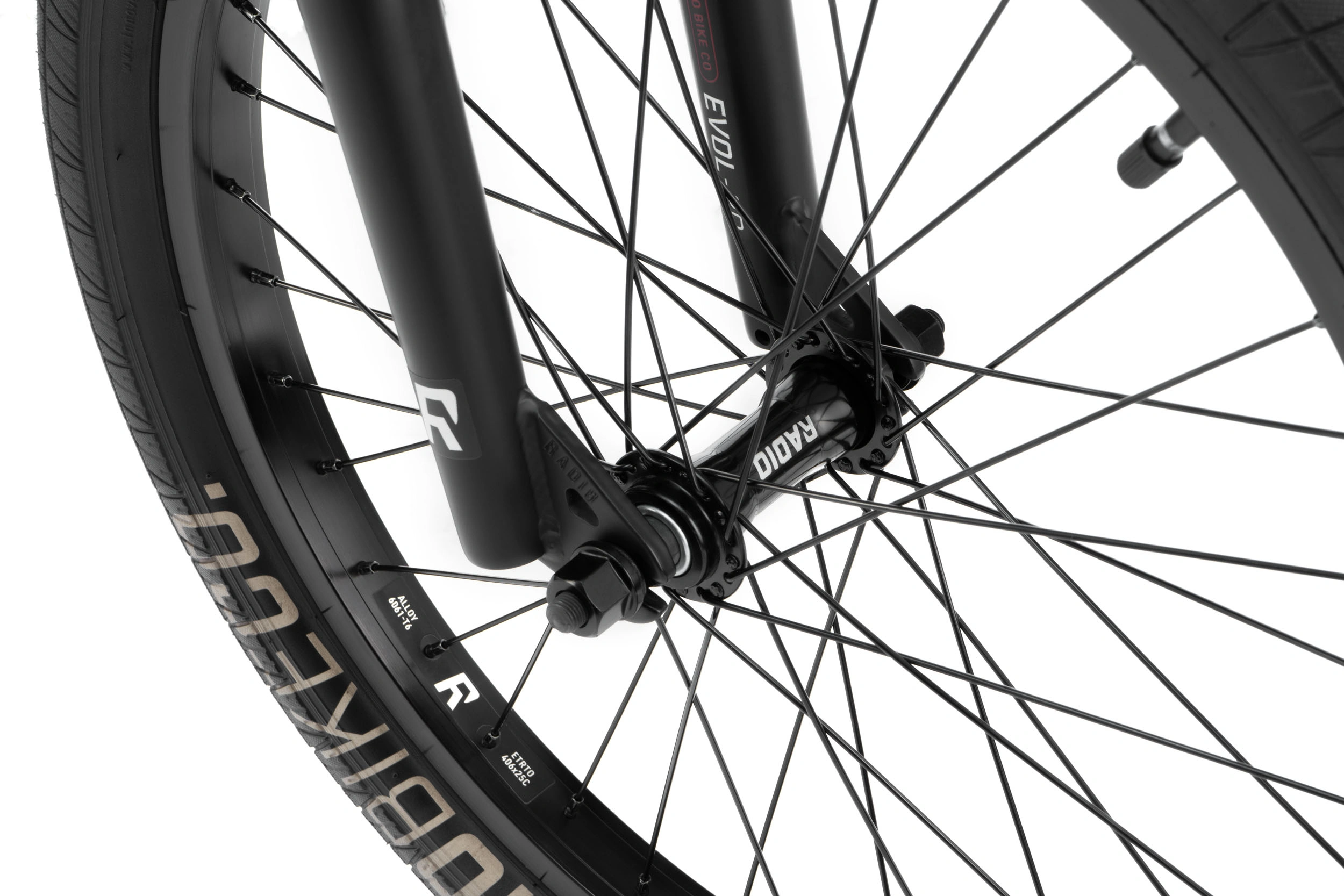

FRONT HUB: RADIO “ROOKIE” hub, steel, loose ball, 3/8″s, 36h

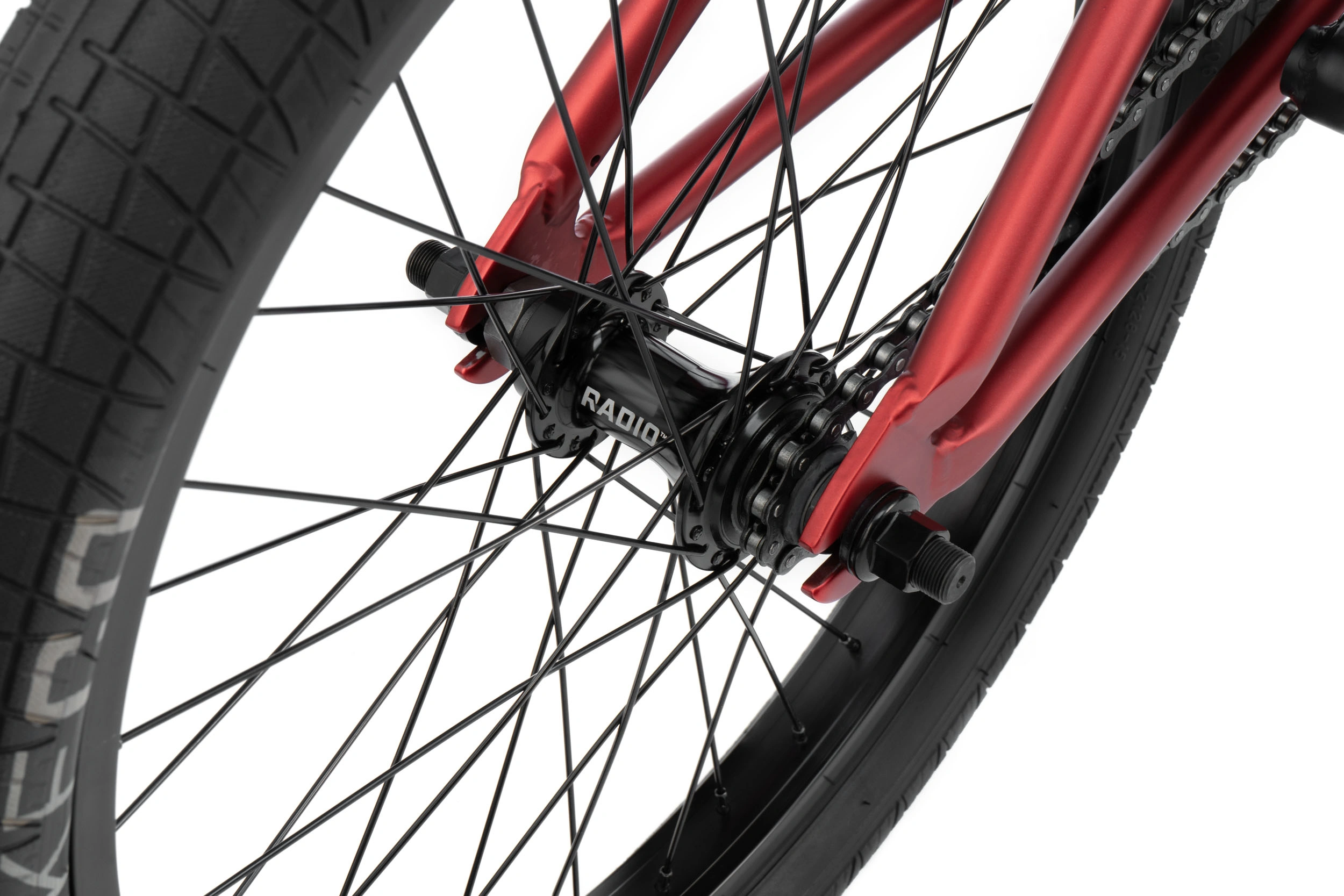

REAR HUB: RADIO “AM” cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
FRONT RIM: RADIO “ROOKIE” rim, single wall
REAR RIM: RADIO “ROOKIE” rim, single wall

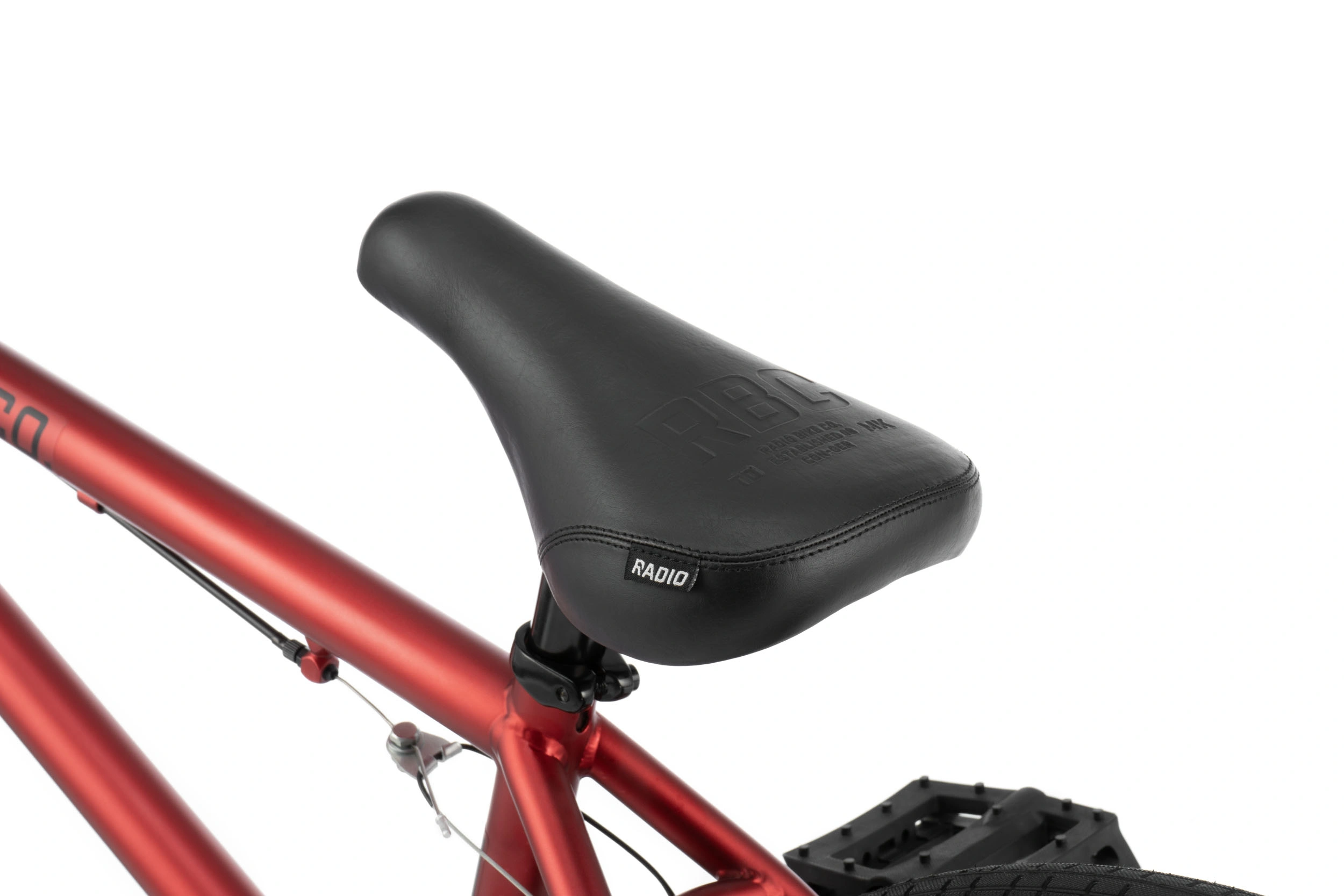

SEAT: RADIO “CENTURY” combo seat, slim padded
SEAT CLAMP: RADIO “SLIM” seat clamp, alloy
TIRES: RADIO “ROOKIE” tires, 2.3″, front & rear
Weight: 12.25kg / 27.02lbs
Frame Geometry:
Top Tube Length 20.3″
Chain Stay Length 13.2″
Head Tube Angle 75°
Seat Tube Angle 71.5°
Bottom Bracket Height 11.75″
Standover Height 8.25″
Handlebar Geometry:
Rise 8.8″
Width 29″
Backsweep 11°
Upsweep 2°
