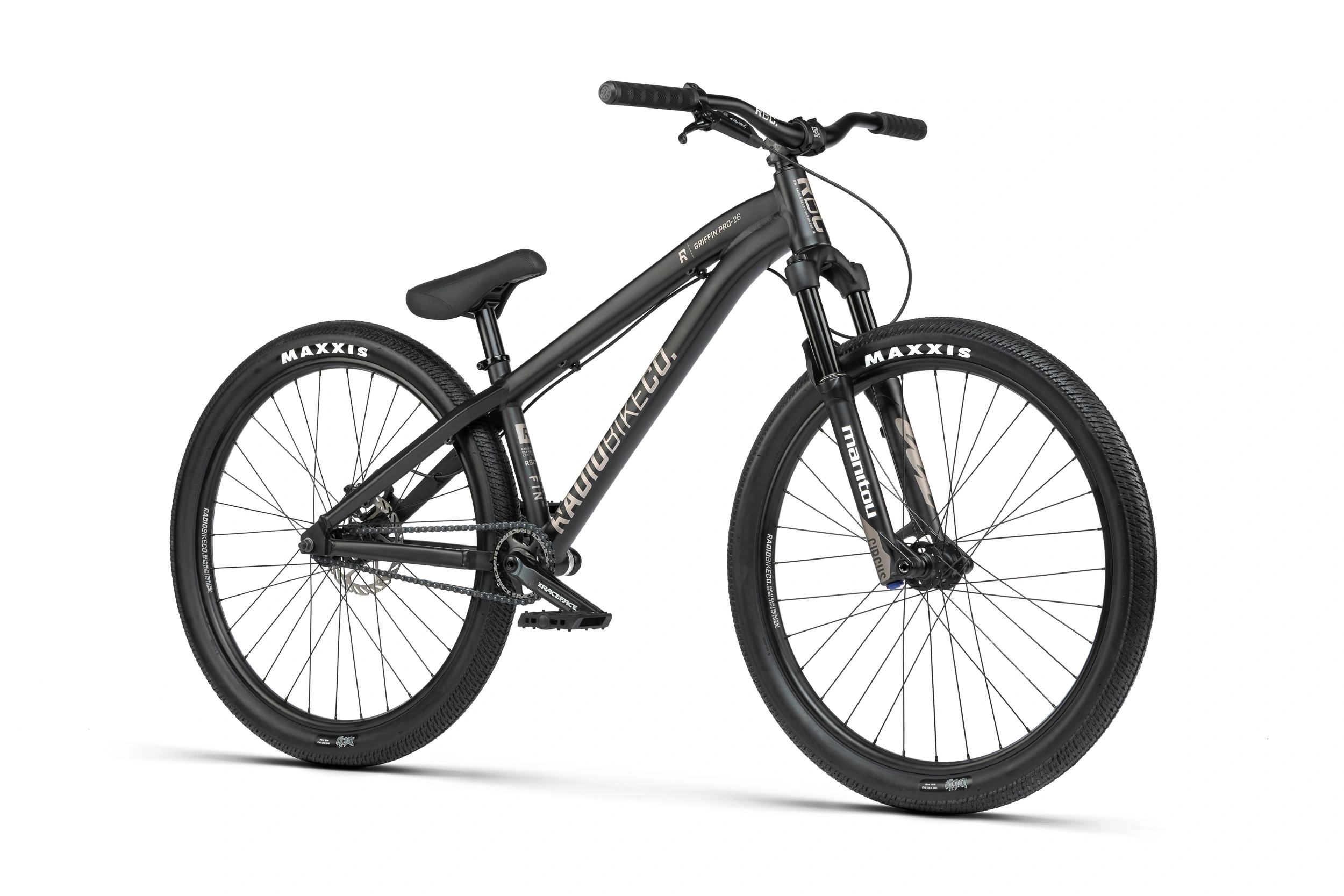

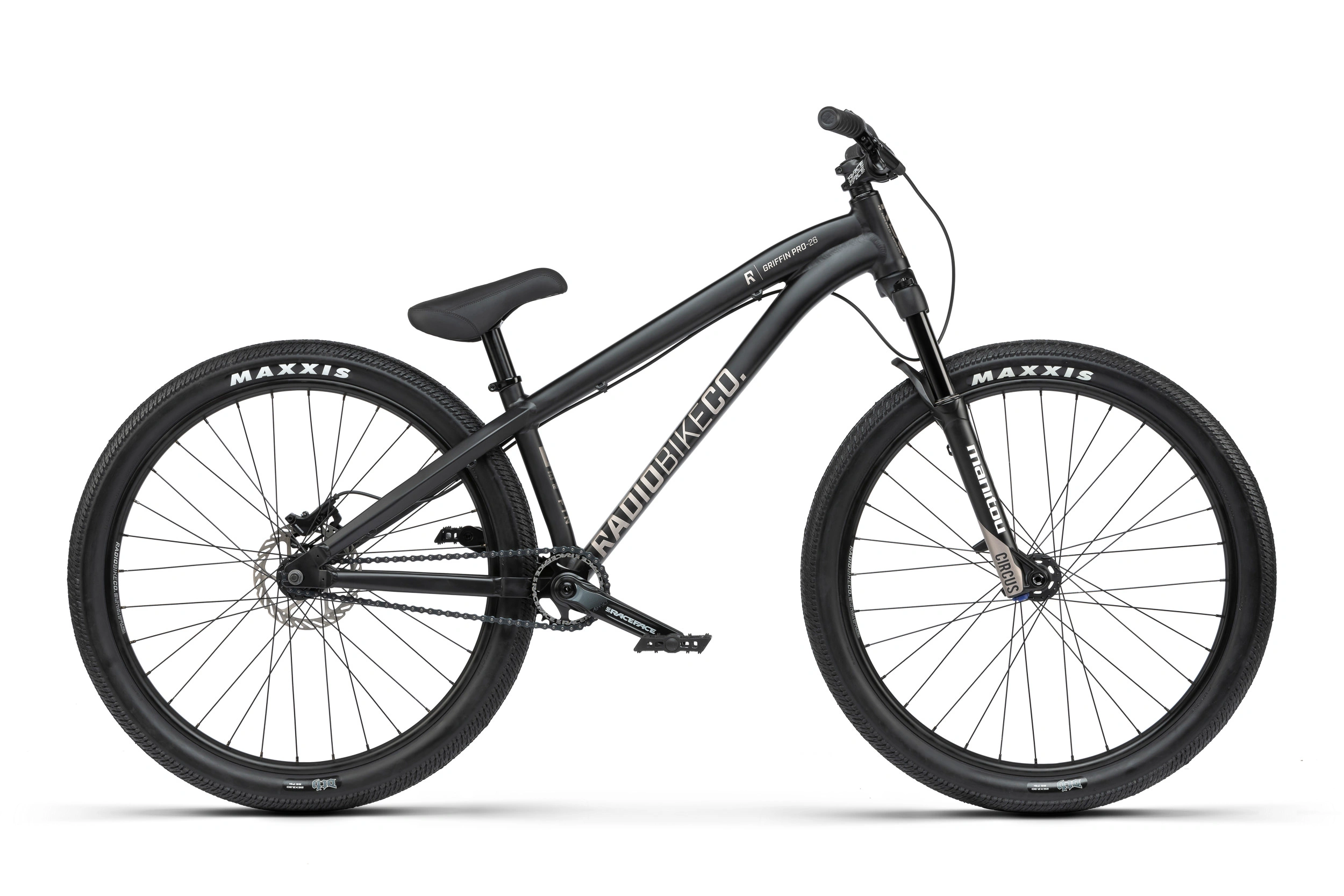

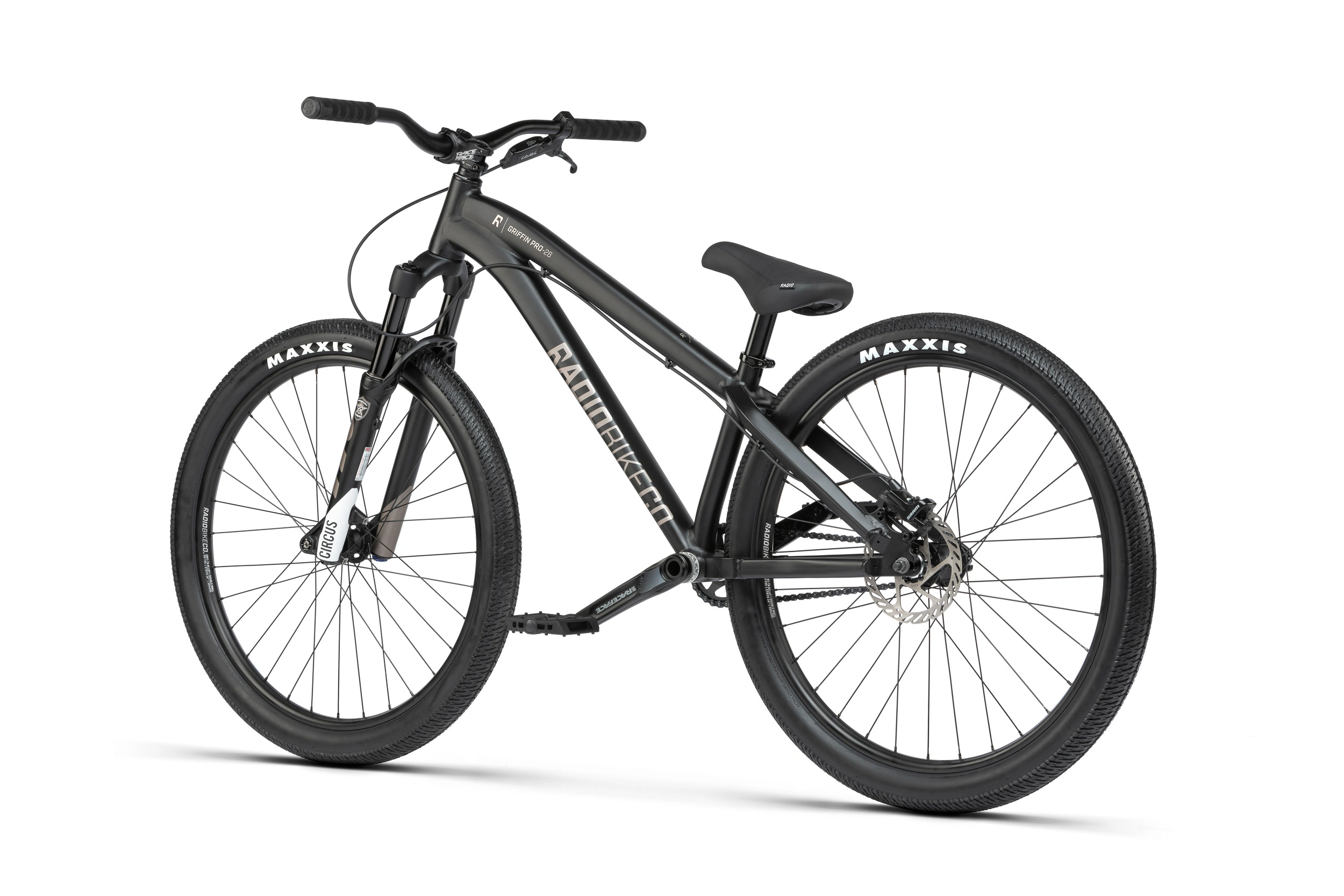

Pay in three equal instalments 3 x FRAME: RADIO “GRIFFIN PRO” frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke
FORK: RST “SHINE AIR” 100mm travel (alt option is the Manitou Circus Sport fork)

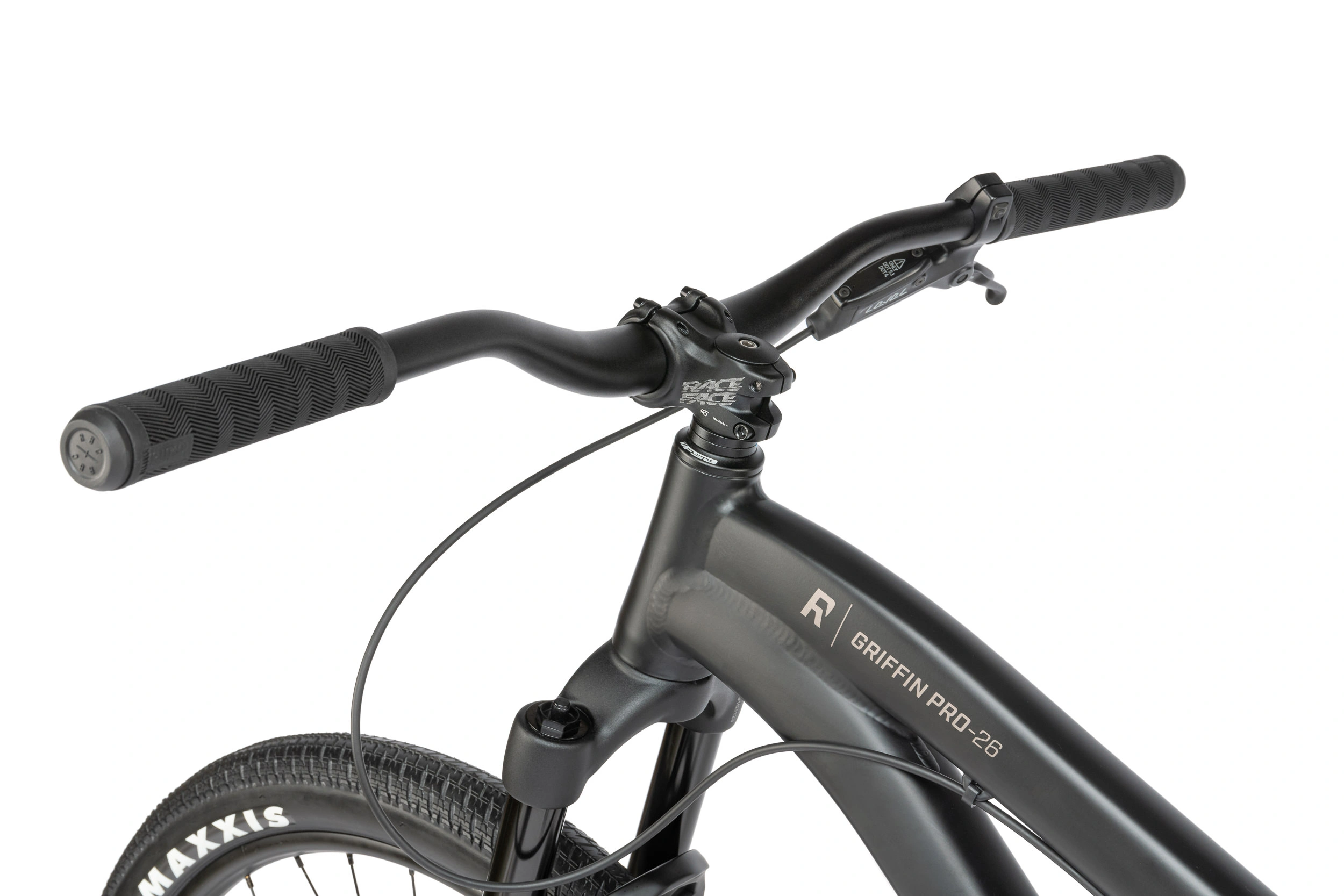

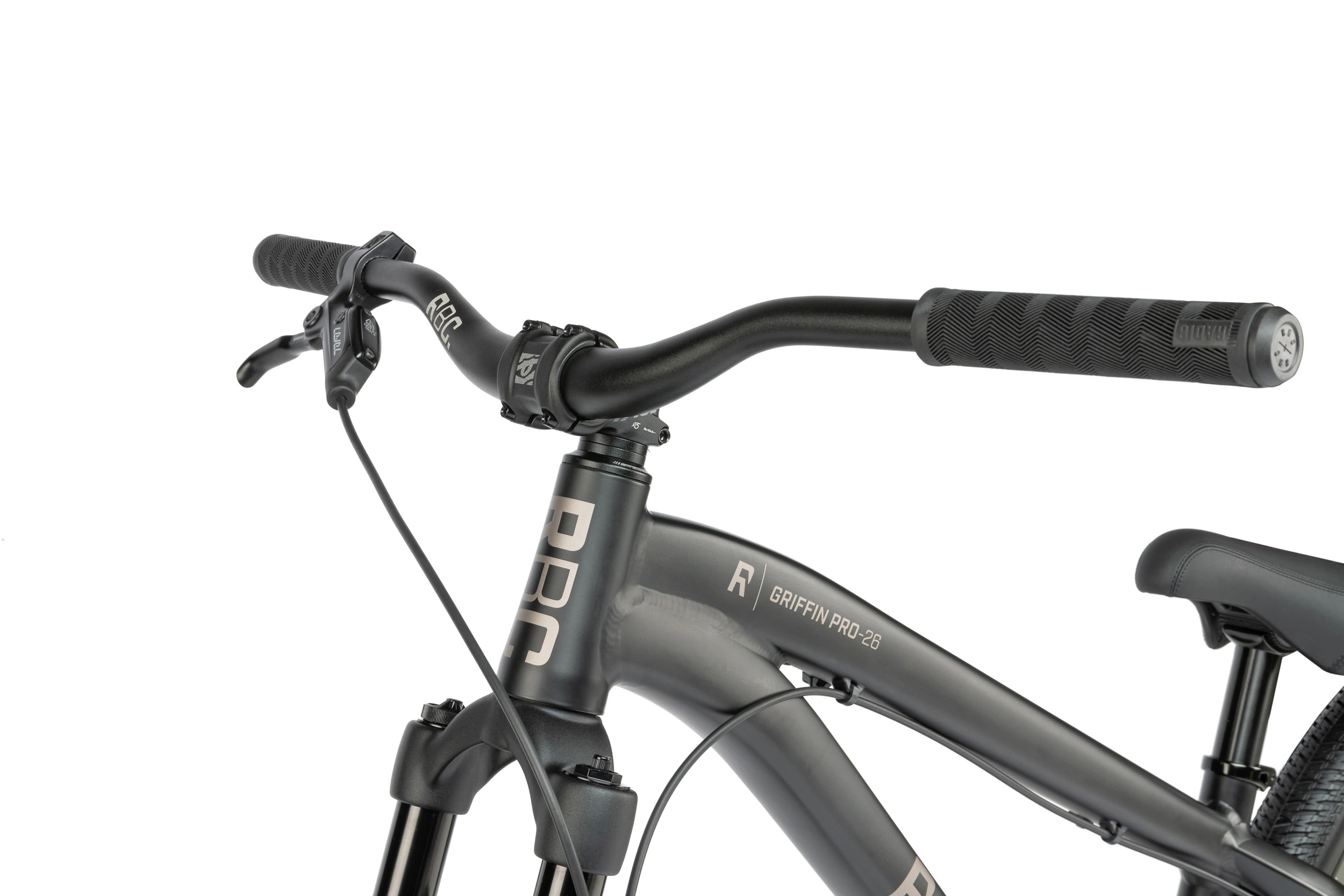

HANDLEBAR: RADIO “GRIFFIN” bar, 6061-T6 alloy, 35mm
GRIPS: RADIO “FREQUENCY XL” grips, flangeless, 160mm
STEM: RACE FACE “CHESTER 35” frontload stem, alloy, 40mm reach
HEADSET: FSA “NO.42/ACB-A” integrated A-headset, 1-1/8″-1.5″

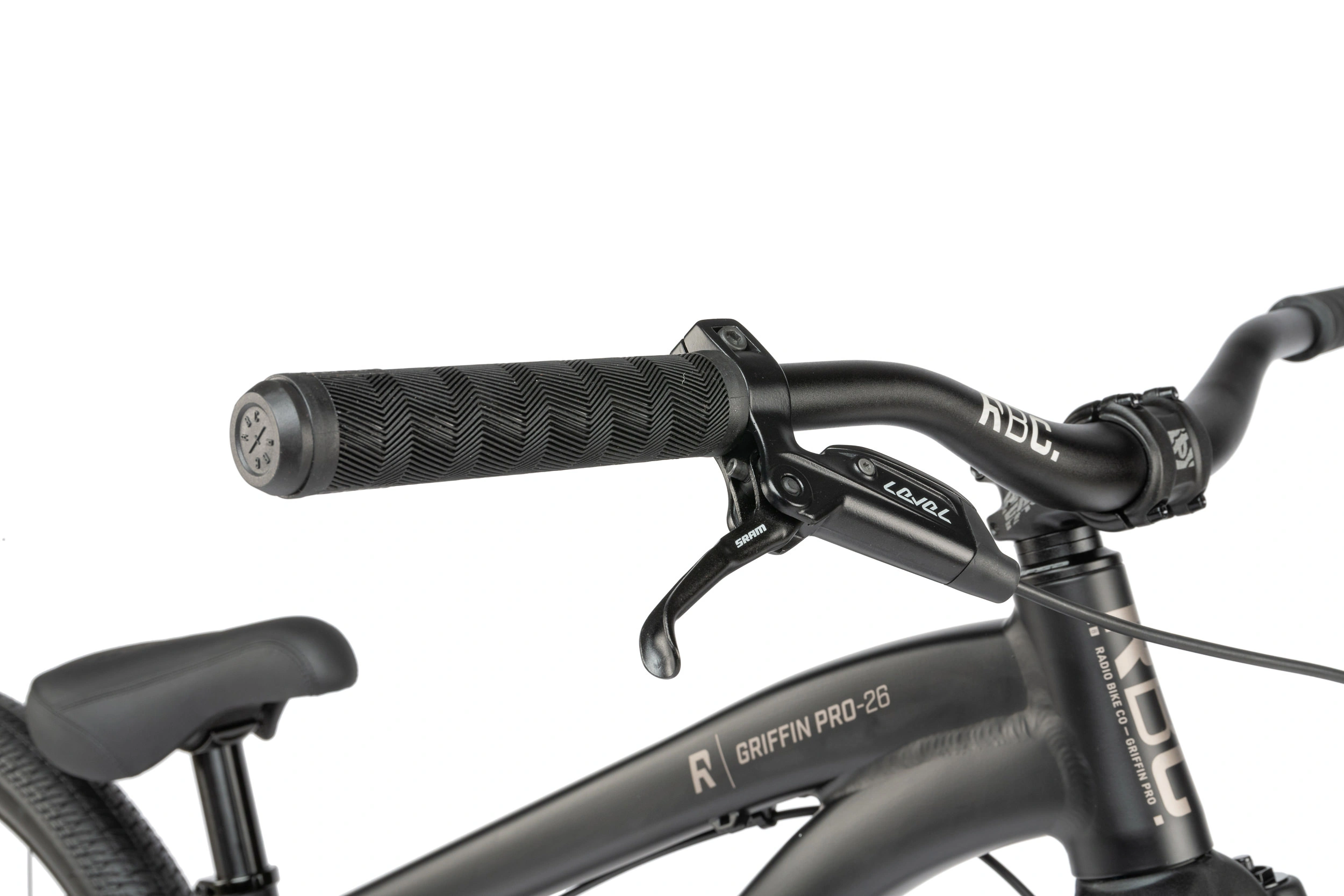

BRAKE LEVER: TEKTRO “RS-360A” front lever / SRAM “DB-LVL-A1” rear lever

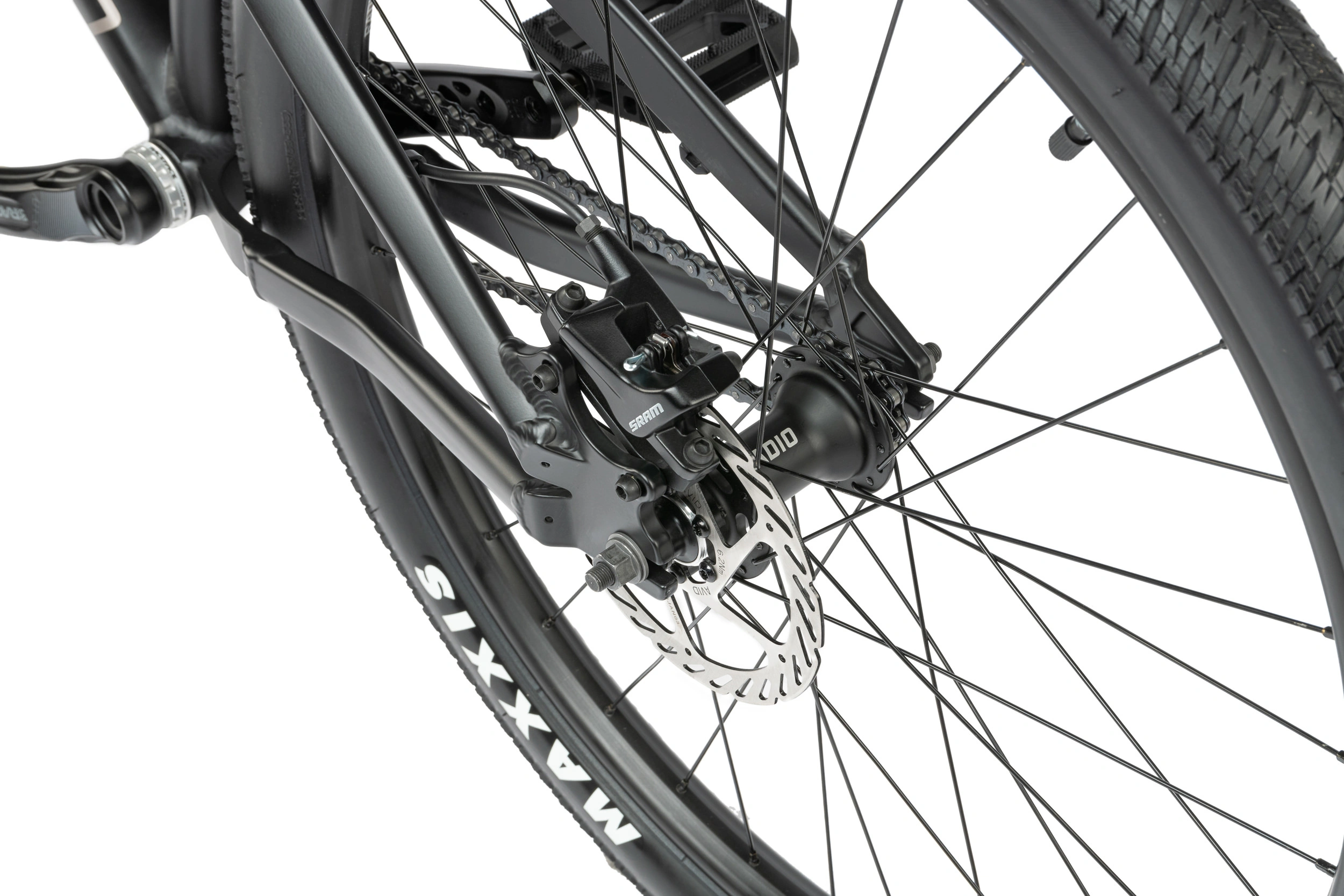

BRAKE: TEKTRO “ARIES” mechanical disc brake, 160mm rotor, front / SRAM “DB-LVL-A1” hydraulic disc brake, 160mm rotor, rear

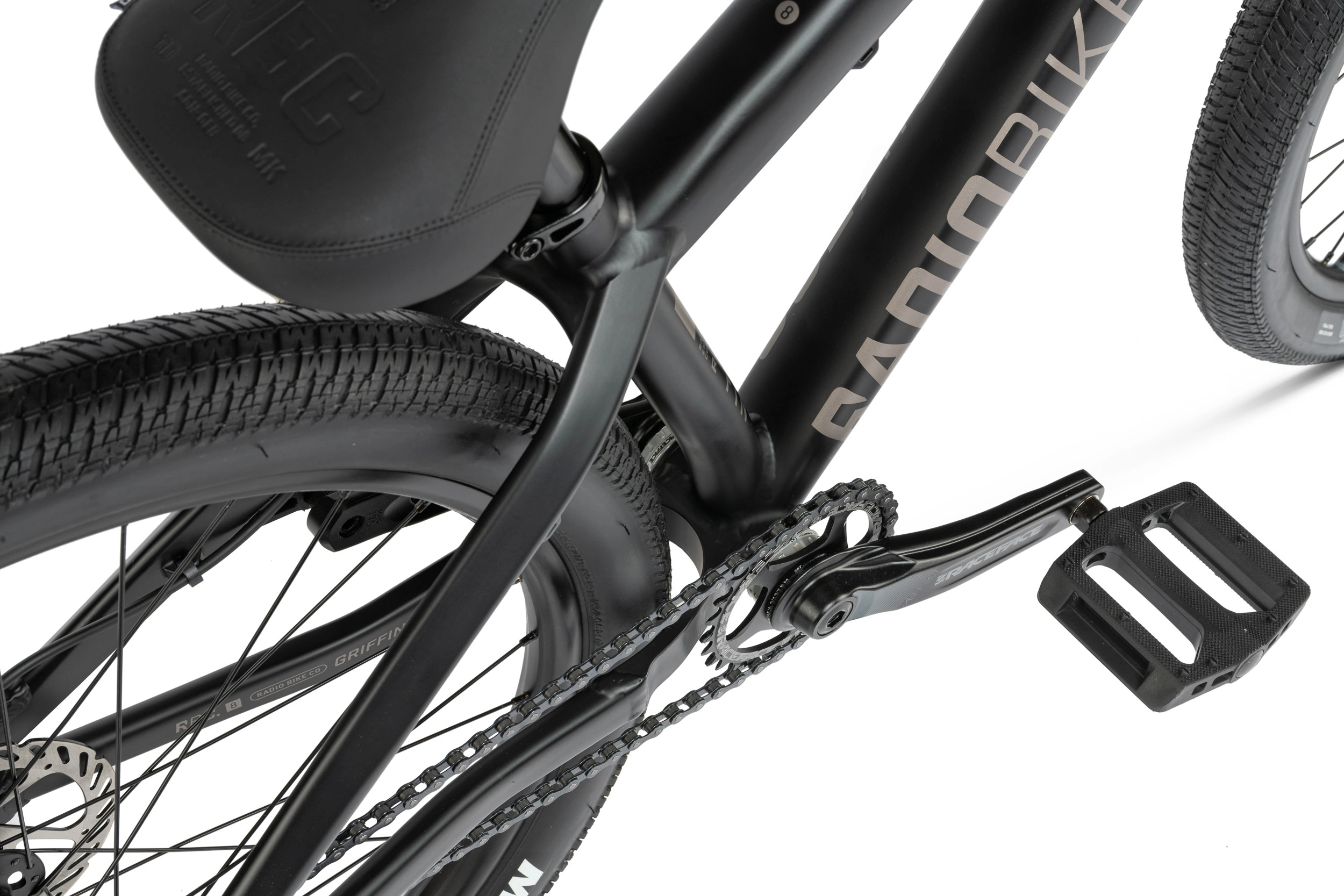

CRANK: RACE FACE “AEFFECT” crank, alloy, 170mm

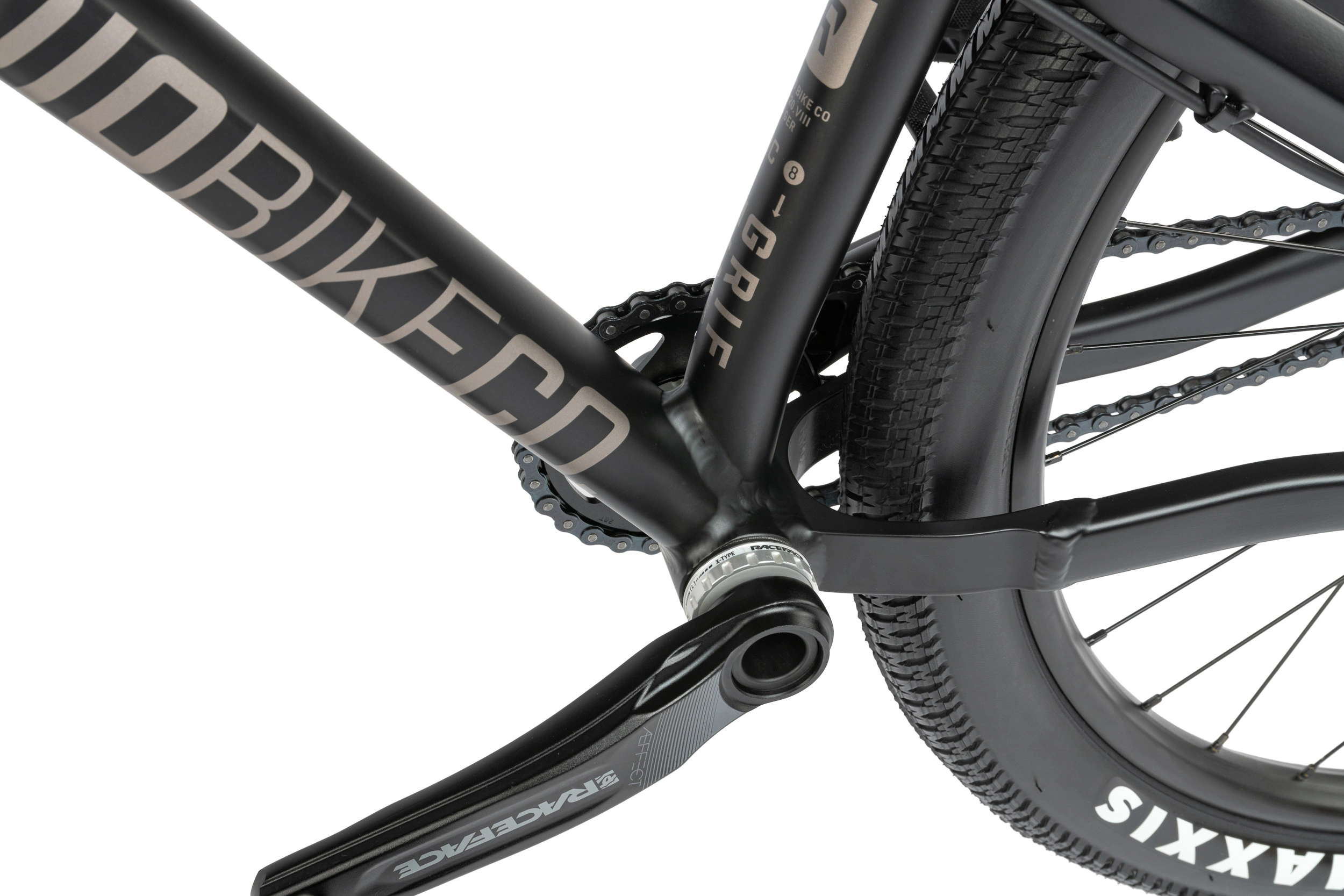

BB: RACE FACE “AEFFECT” BSA bb set, sealed bearing
PEDALS: RADIO “SLIM” pedals, nylon/fiberglass
CHAIN: SALT “AM” chain, WZ1 type

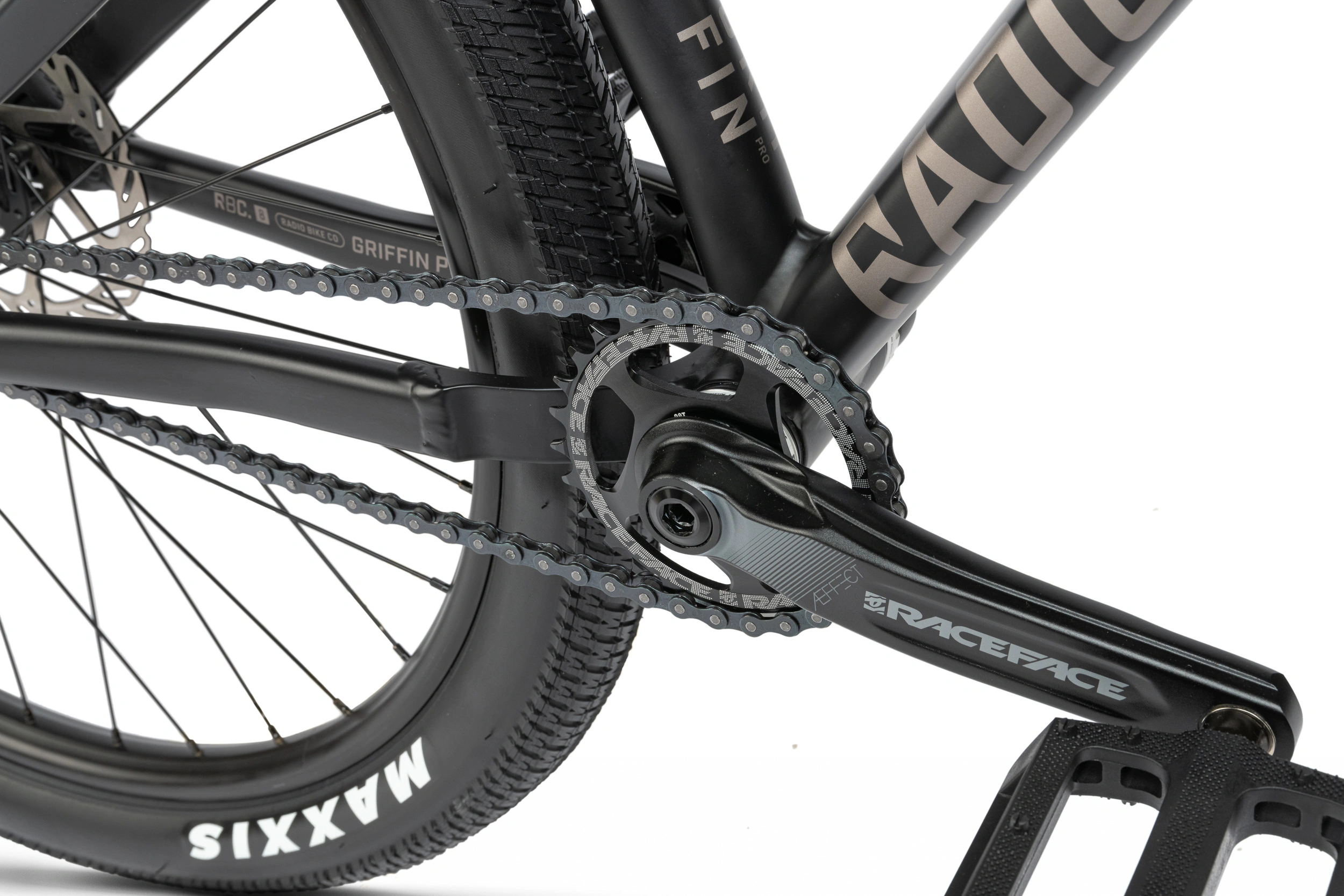

SPROCKET: RACE FACE “AEFFECT” sprocket, alloy, 28t
DRIVER: cassette driver, 10t, sealed bearing

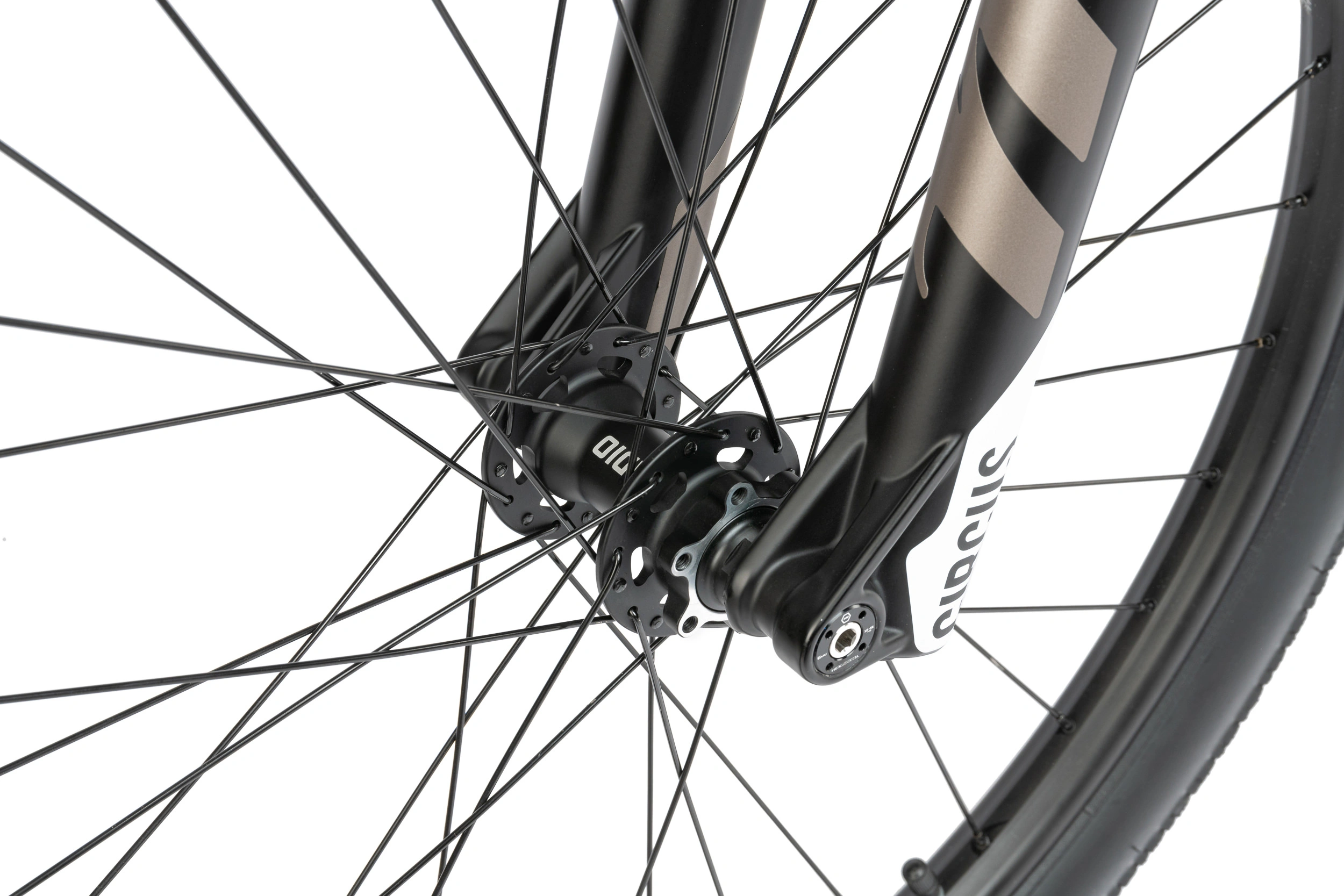

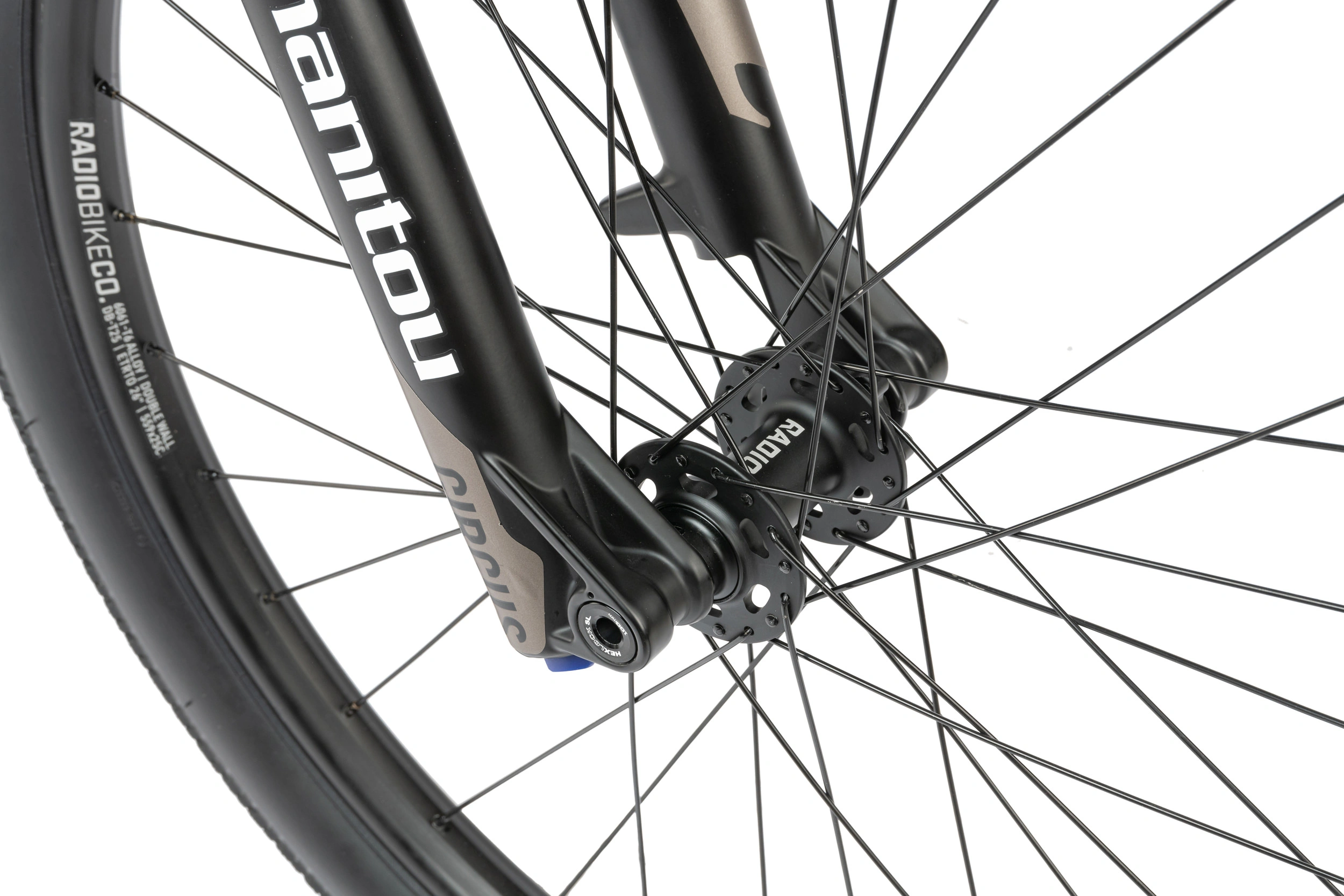

FRONT HUB: RADIO “PRO-DJ” disc hub, alloy, sealed, 15mm alloy through axle, 32h

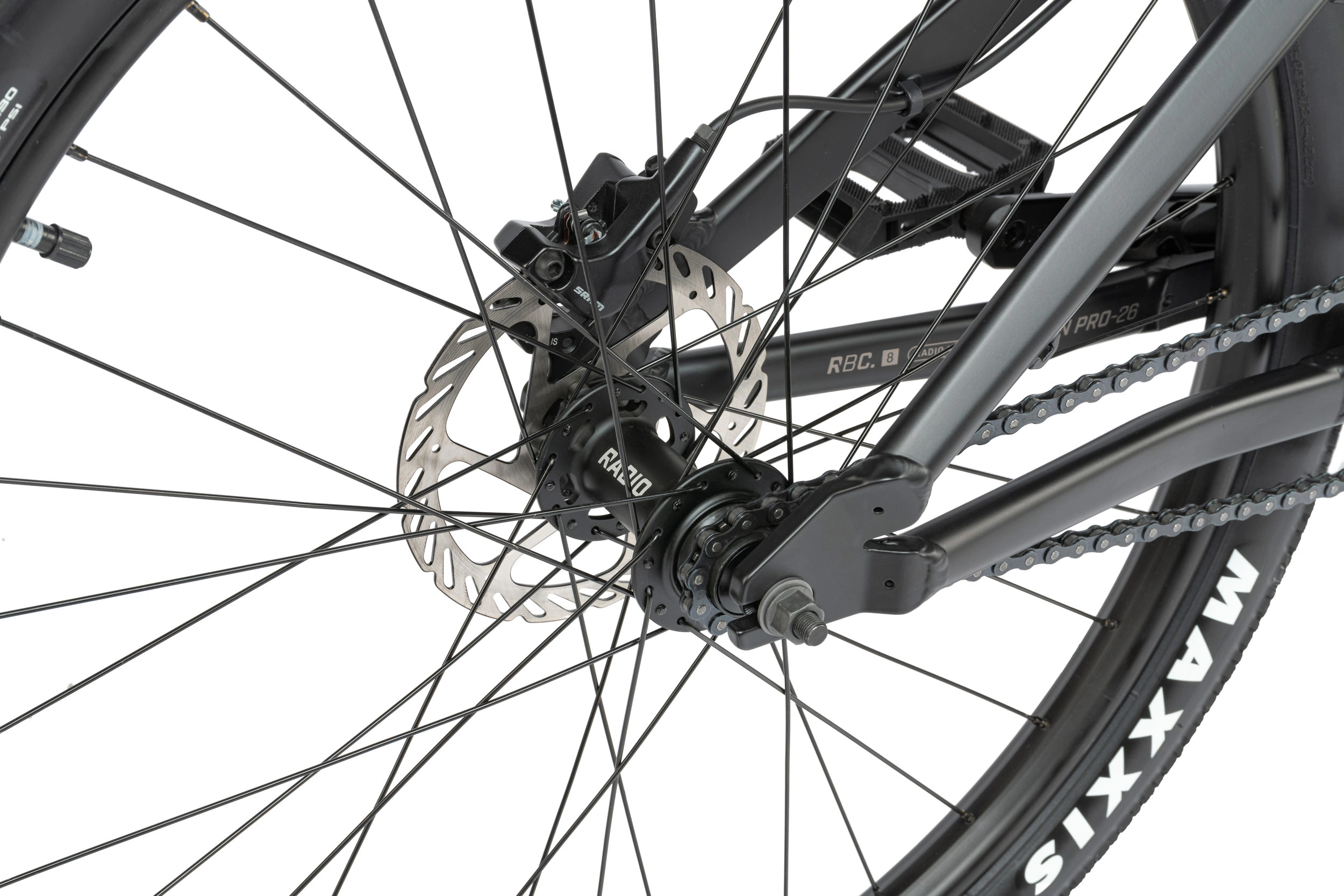

REAR HUB: RADIO “PRO-DJ” disc hub, alloy, sealed, 3/8″s crmo axle, 32h
FRONT RIM: RADIO “DB-T25” rim, double wall, sleeved
REAR RIM: RADIO “DB-T25” rim, double wall, sleeved
SEAT: RADIO “CENTURY” pivotal seat, fat padded
SEAT POST: RADIO “PIVOTAL” seat post, alloy

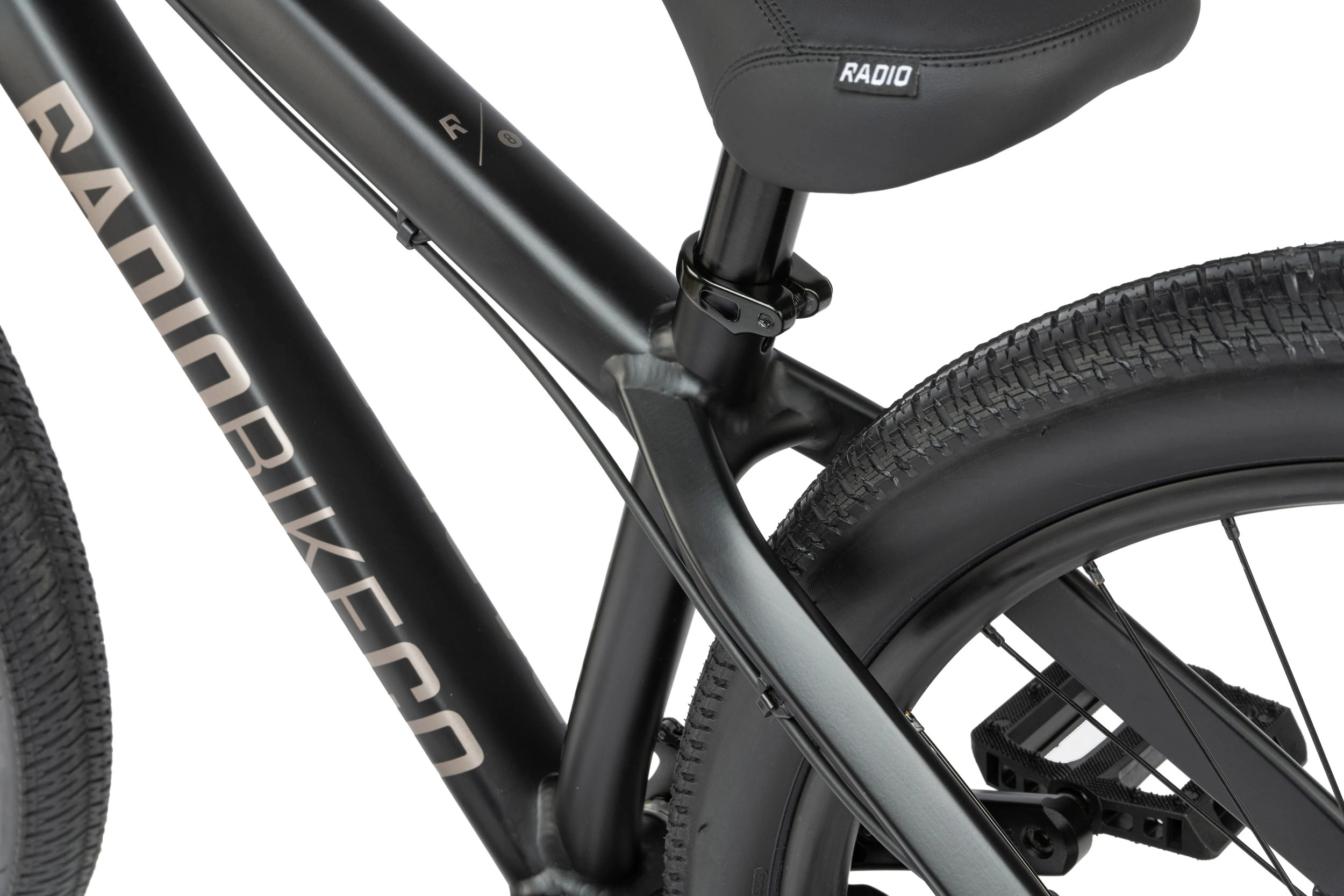

SEAT CLAMP: RADIO “SLIM” seat clamp, alloy
TIRES: MAXXIS “DTH” tires, 2.3″, front & rear
Weight: 11.31kg / 24.94lbs
Frame Geometry:
Top Tube Length 22.8″
Chain Stay Length 15″
Head Tube Angle 70°
Seat Tube Angle 70°
Bottom Bracket Height 14mm drop
Standover Height 10.2″
Handlebar Geometry:
Rise 50mm
Width 760mm
Backsweep 8°
Upsweep 3°
