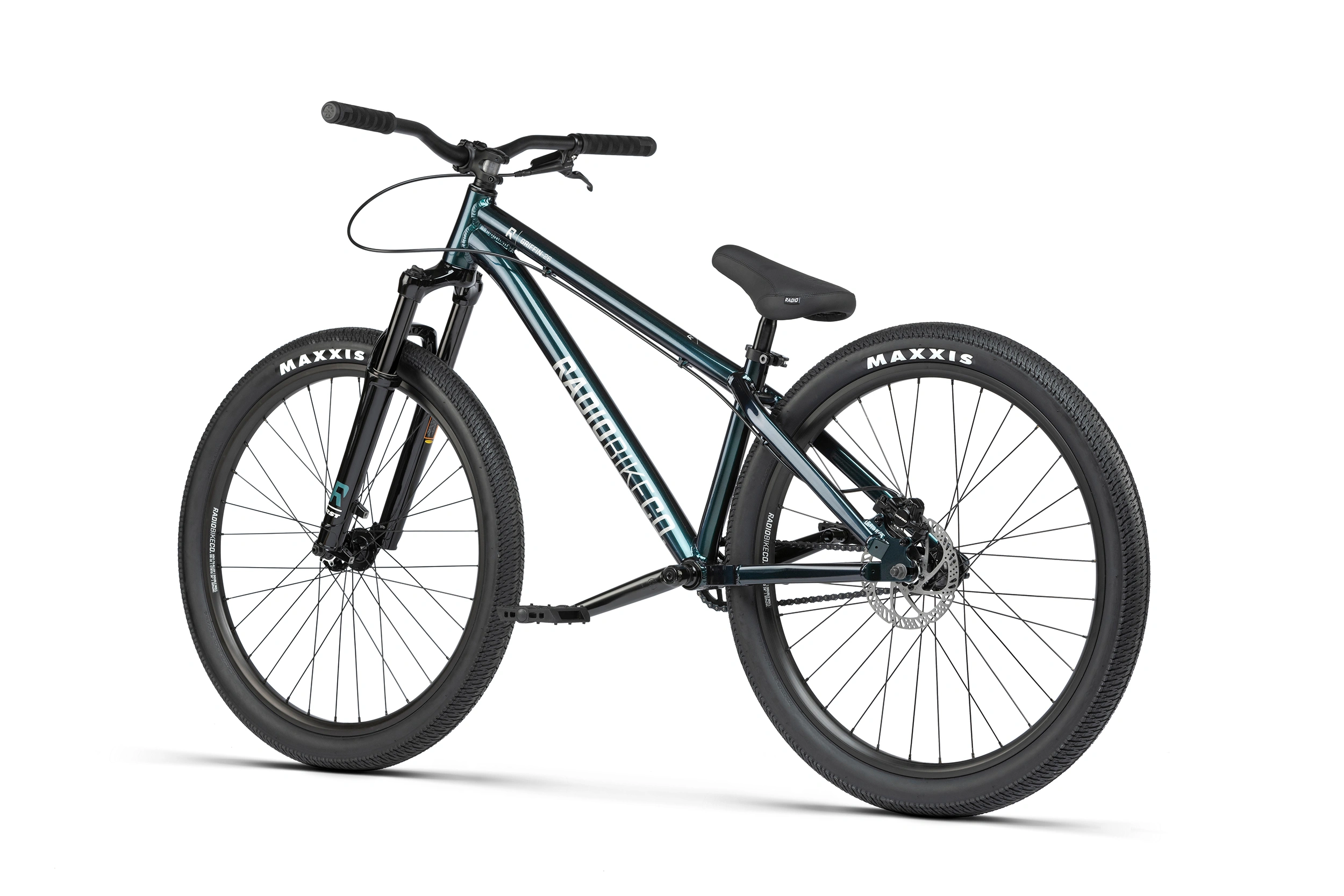

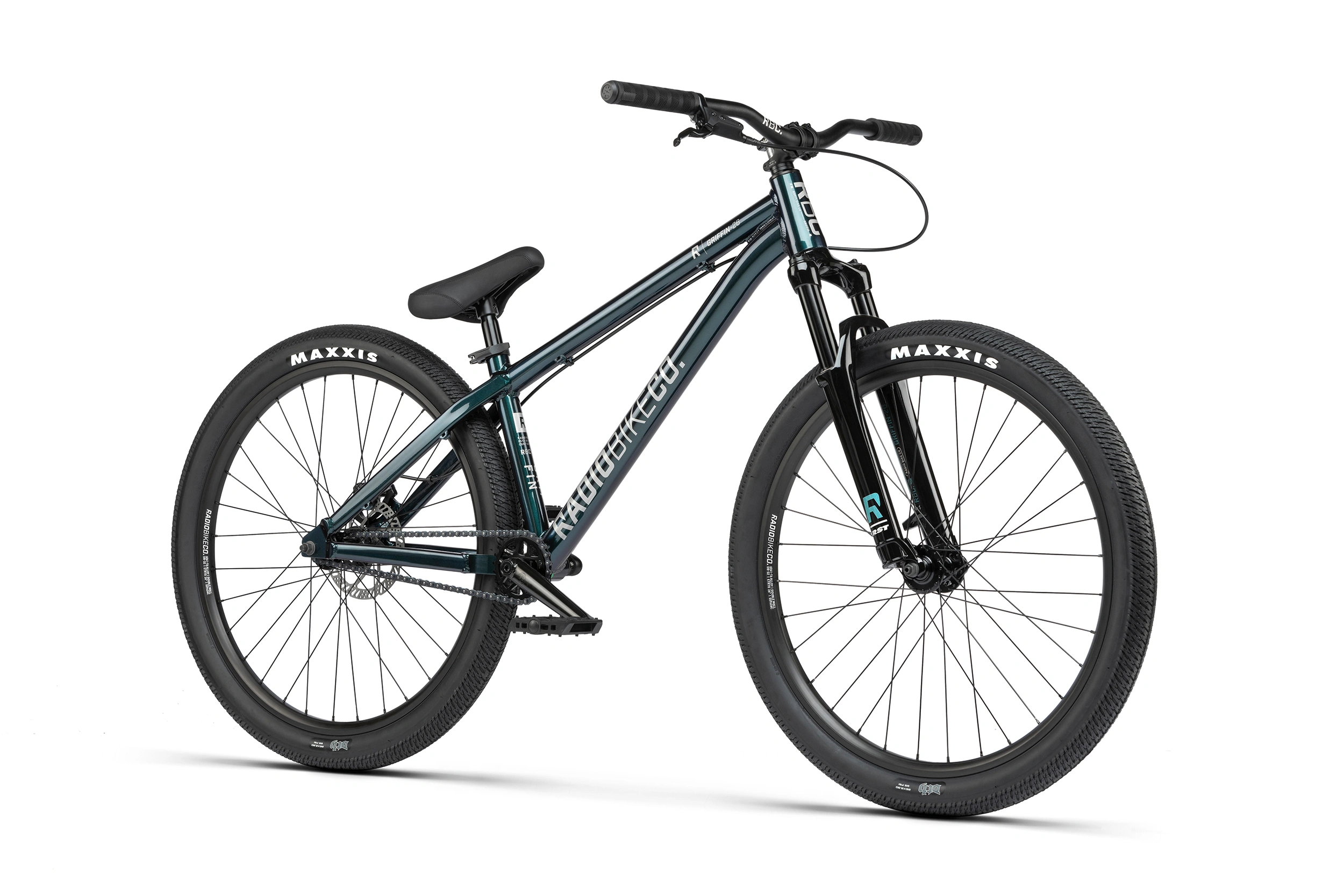

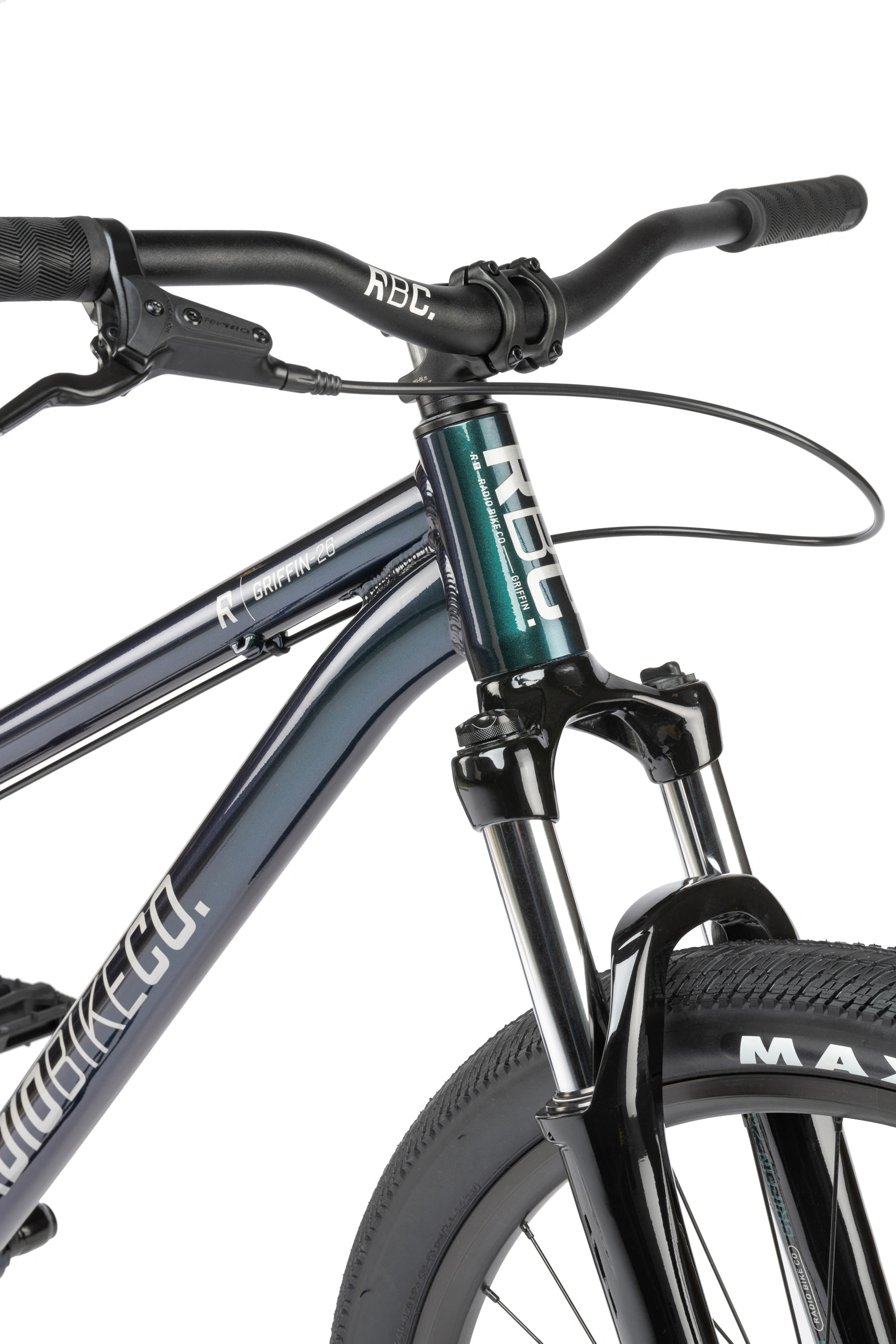

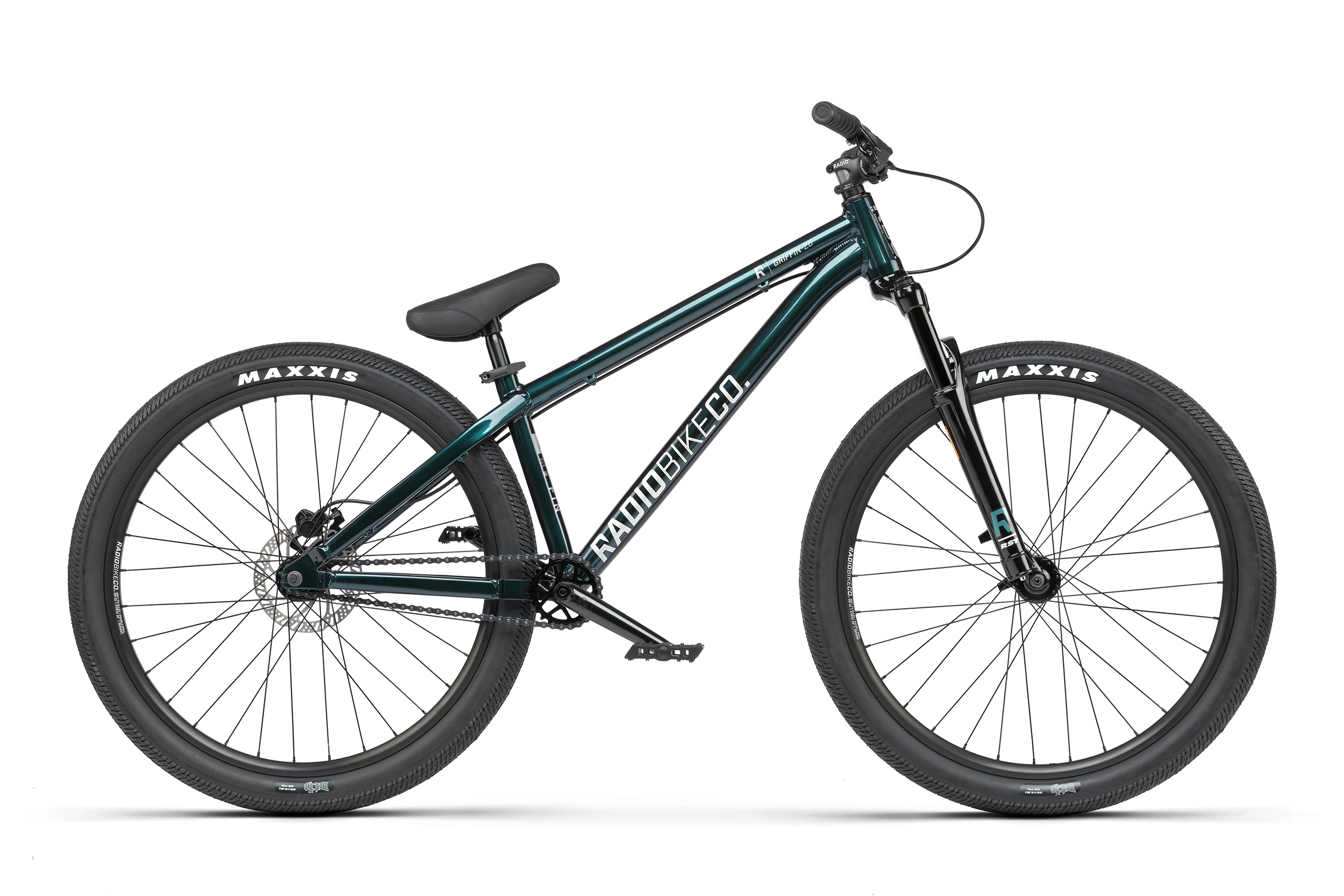

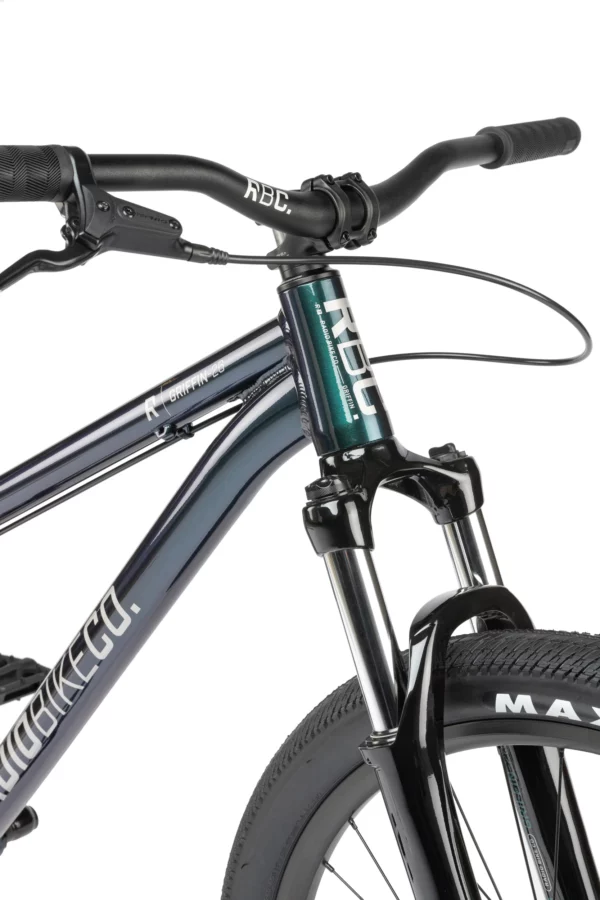

Pay in three equal instalments 3 x FRAME: RADIO “GRIFFIN” frame, 6061-T6 alloy, tapered head tube, forged yoke

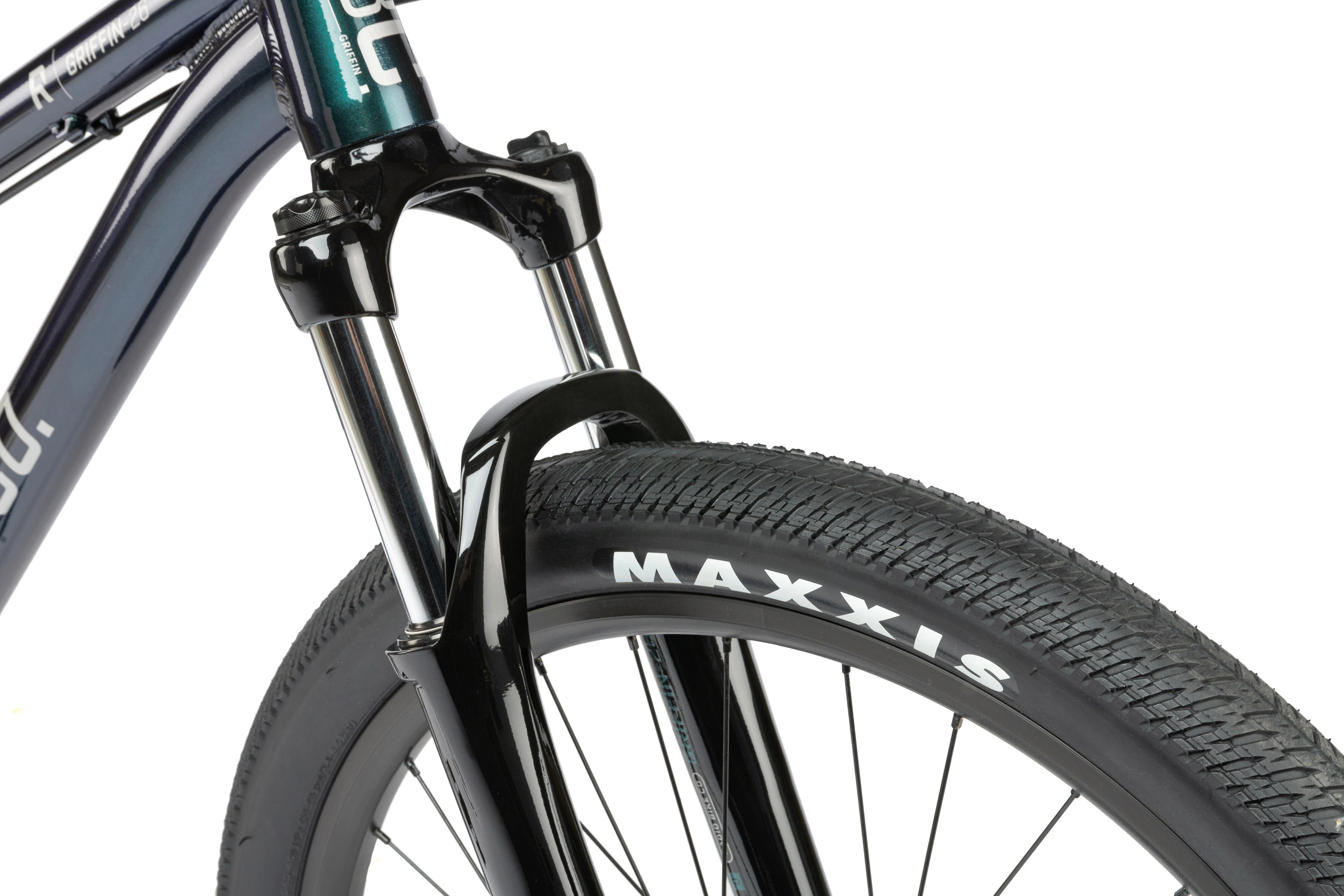

FORK: RST “DIRT RA” fork, 100mm travel

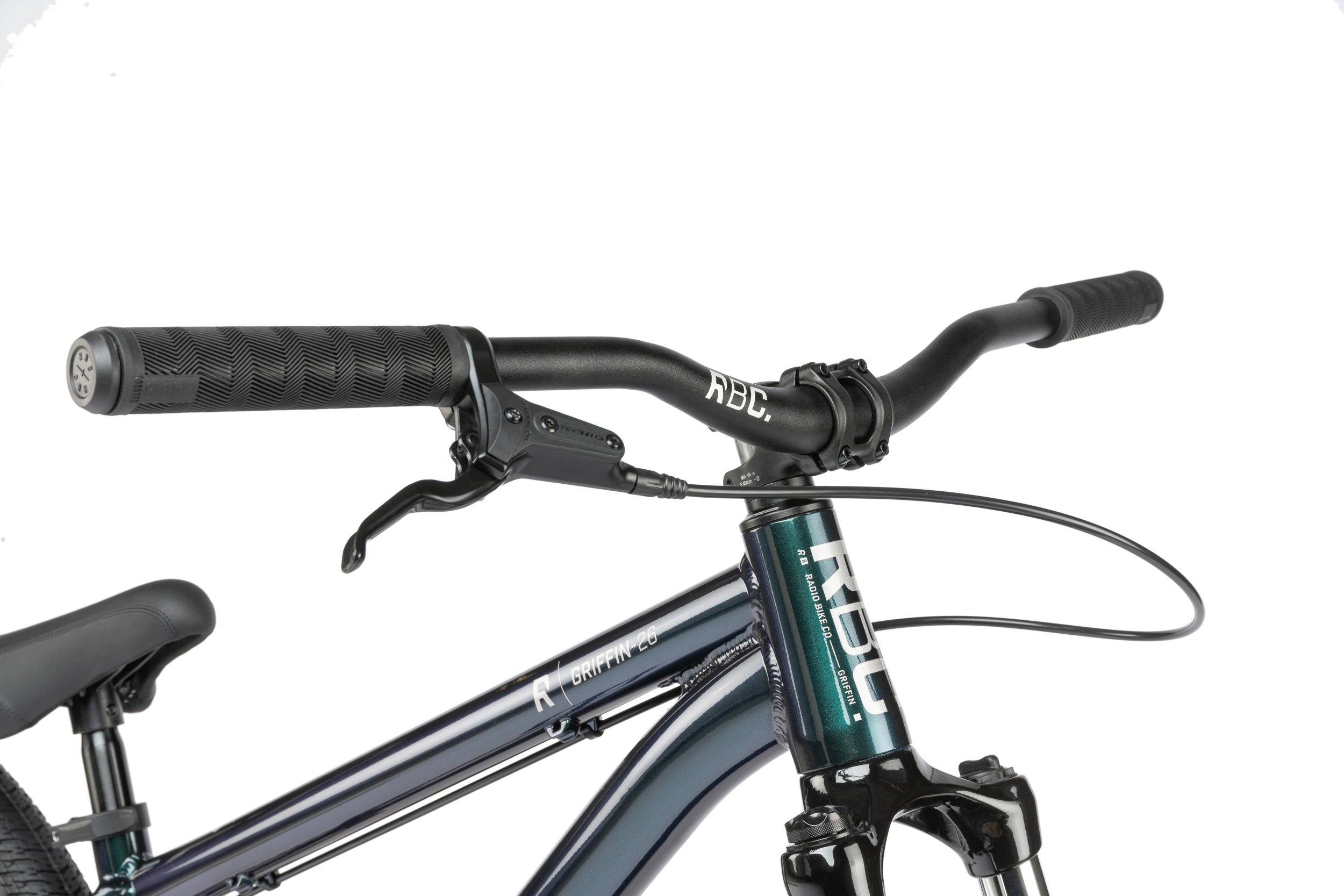

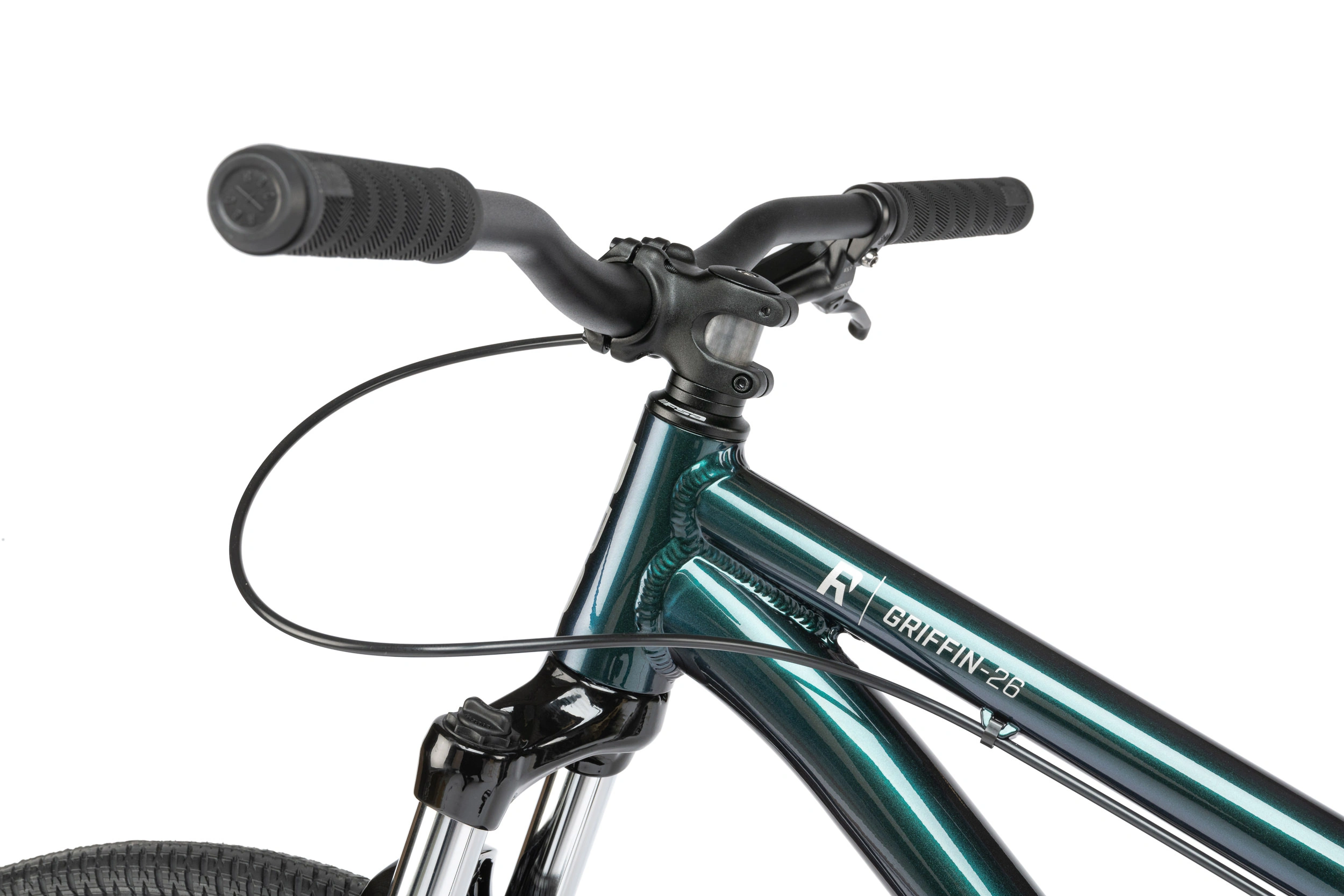

HANDLEBAR: RADIO “ASURA” bar, 6061-T6 alloy, 31.8mm
GRIPS: RADIO “FREQUENCY XL” grips, flangeless, 160mm
STEM: RADIO “ZOOM” frontload stem, alloy, 40mm reach
HEADSET: FSA “NO.42/ACB-A” integrated A-headset, 1-1/8″-1.5″
BRAKE LEVER: TEKTRO “RS-360A” front lever / TEKTRO ” HD-M275″ rear lever

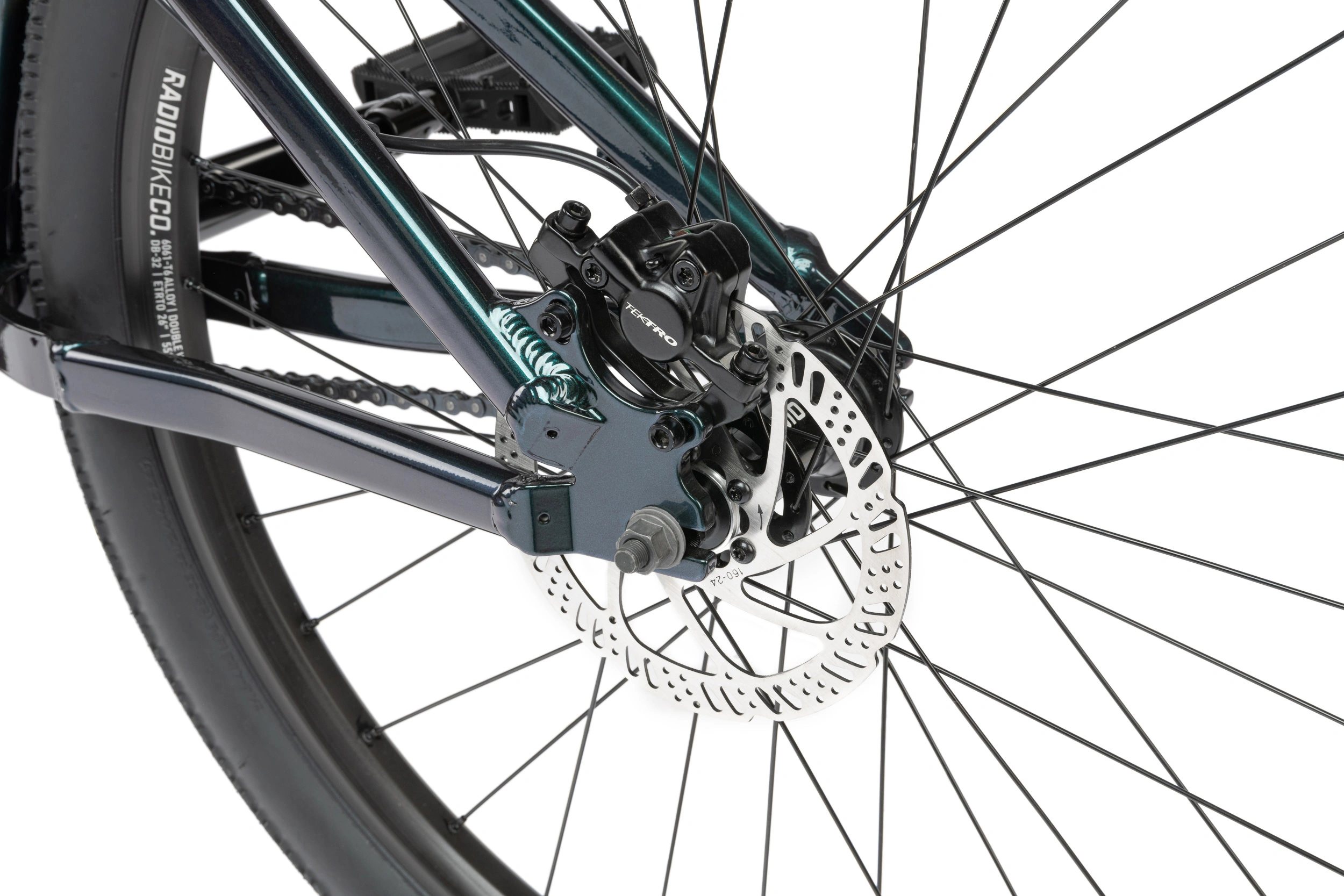

BRAKE: TEKTRO “ARIES” mechanical disc brake, 160mm rotor, front / TEKTRO ” HD-M275″ hydraulic disc brake, 160mm rotor, rear

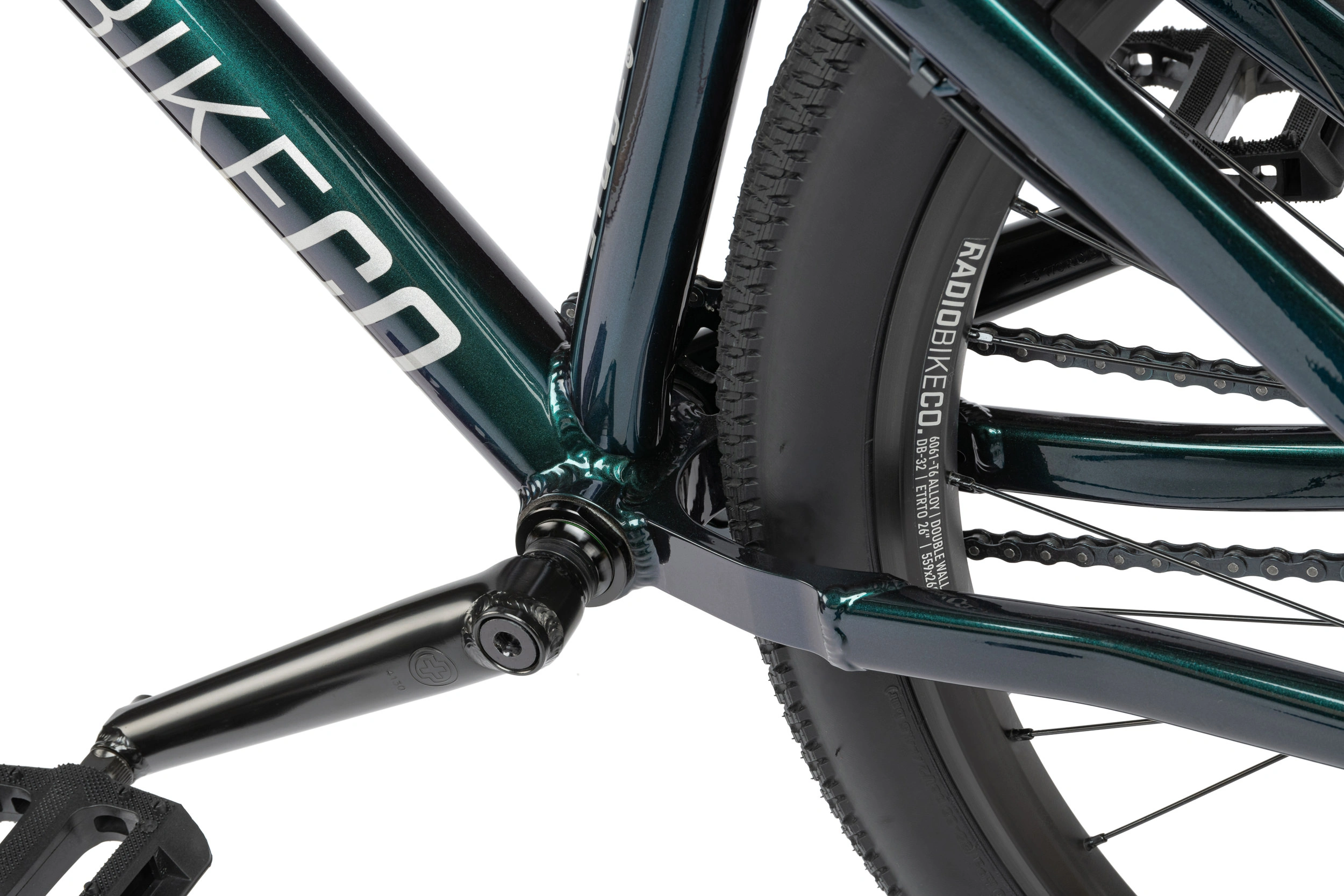

CRANK: SALTPLUS “ULTRA” 3pc crank, TSS, crmo, 170mm, 8 spline
BB: RADIO “BSA19” bb set, sealed bearing
PEDALS: RADIO “SLIM” pedals, nylon/fiberglass
CHAIN: SALT “AM” chain, WZ1 type

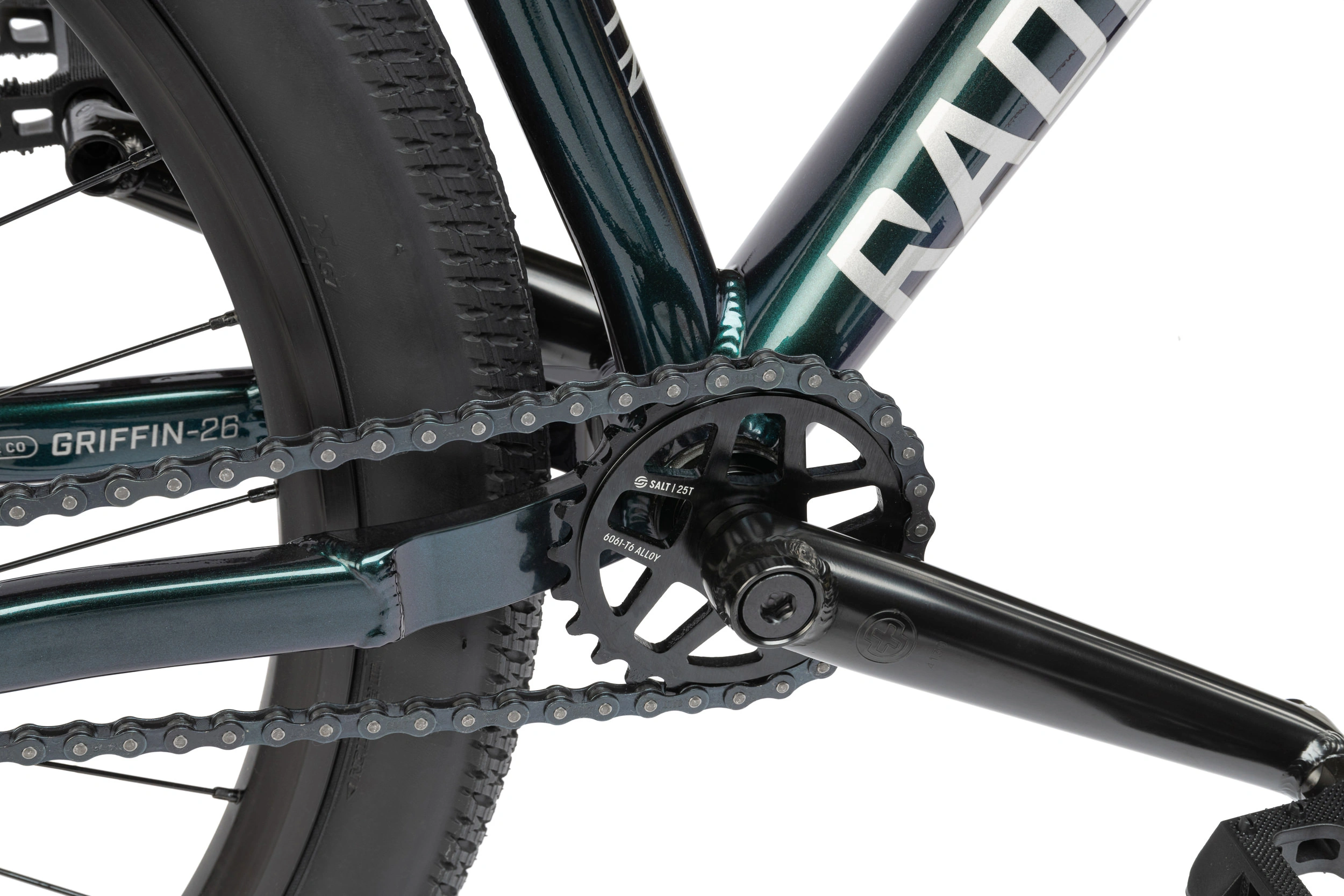

SPROCKET: SALT “GATEWAY” sprocket, alloy, 25t
DRIVER: cassette driver, 10t, sealed bearing

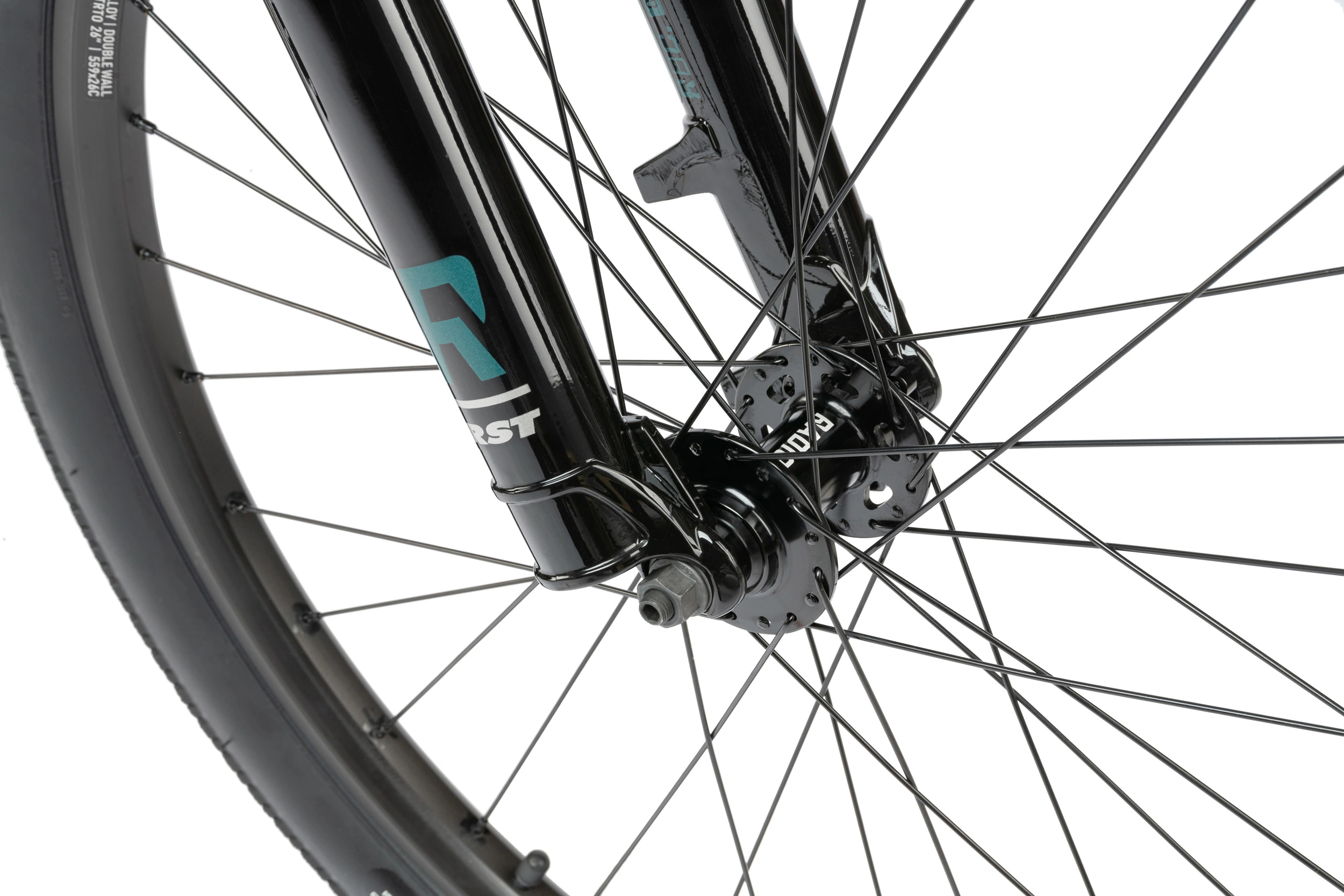

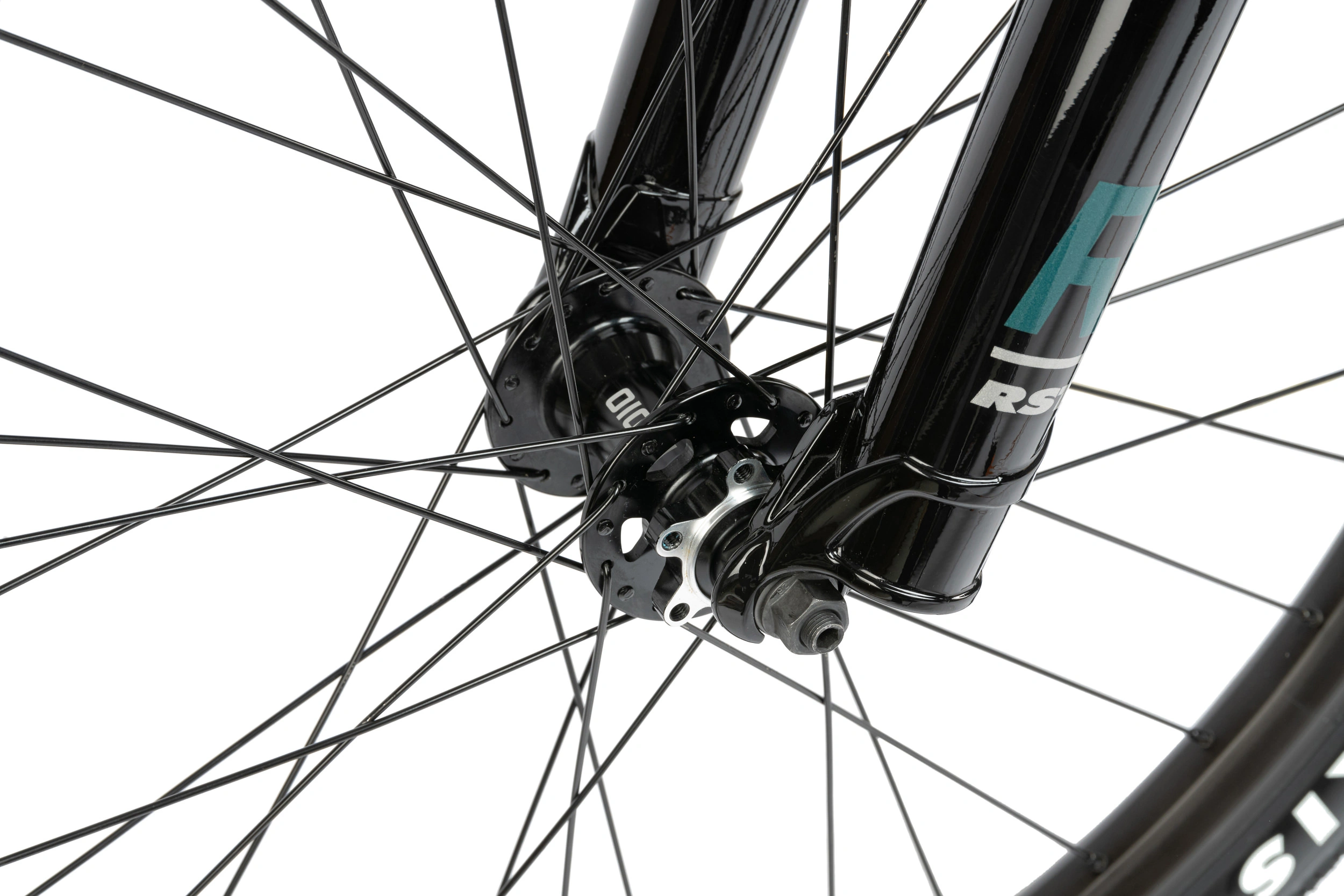

FRONT HUB: RADIO “PRO-DJ” disc hub, alloy, sealed, 3/8″s male axle, 32h

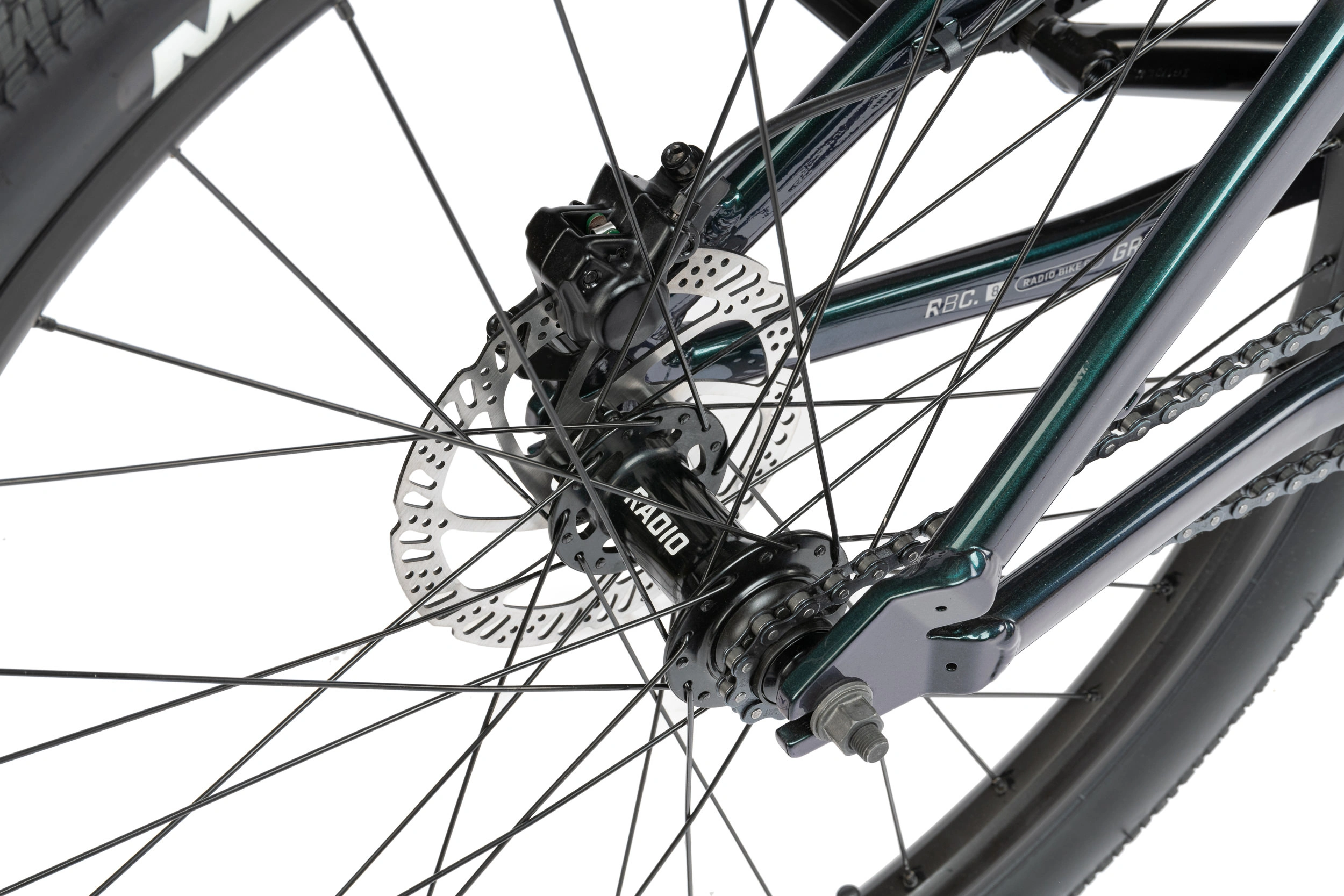

REAR HUB: RADIO “PRO-DJ” disc hub, alloy, sealed, 3/8″s male axle, 32h
FRONT RIM: RADIO “DB32” rim, double wall
REAR RIM: RADIO “DB32” rim, double wall

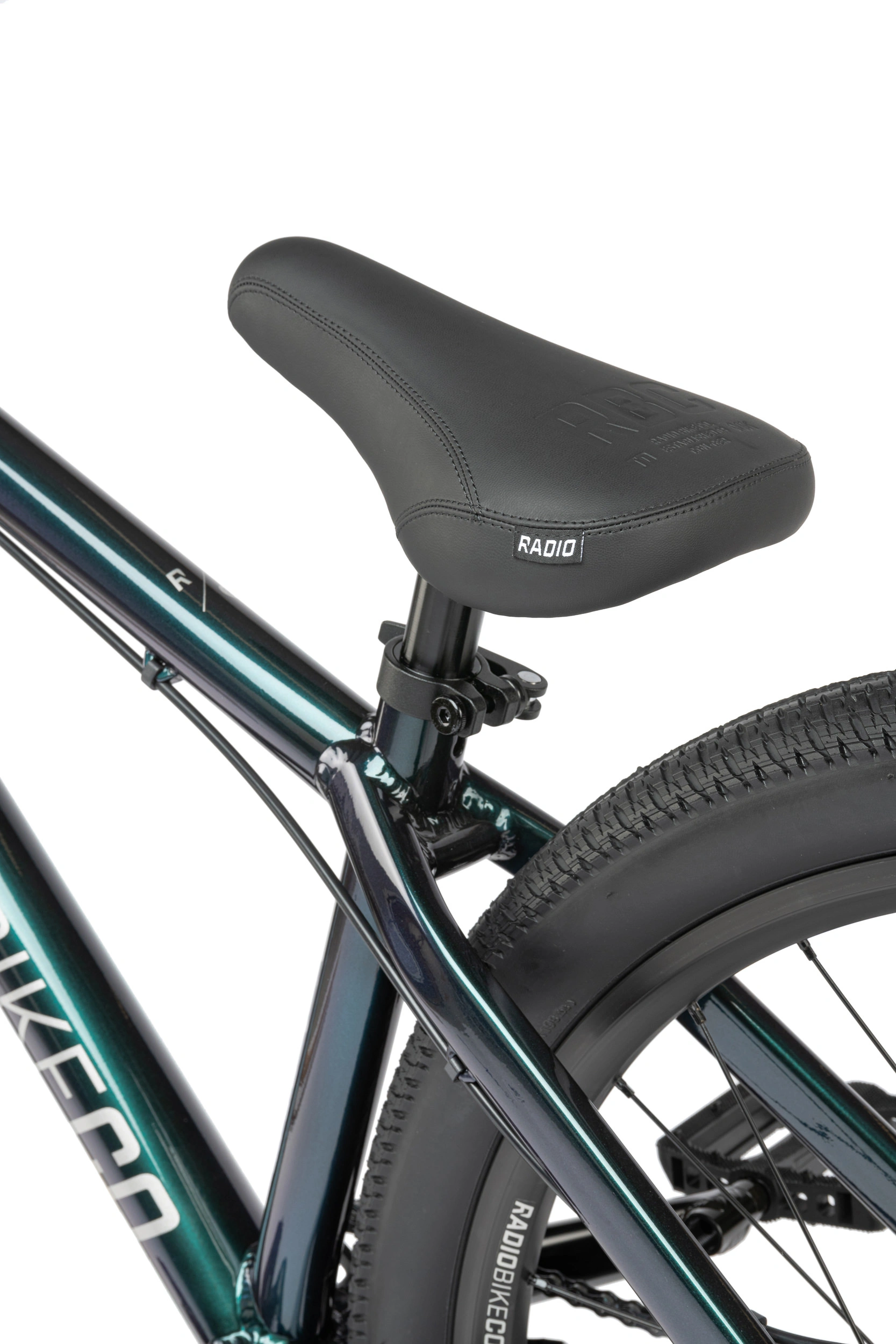

SEAT: RADIO “DJ” combo seat, medium padded

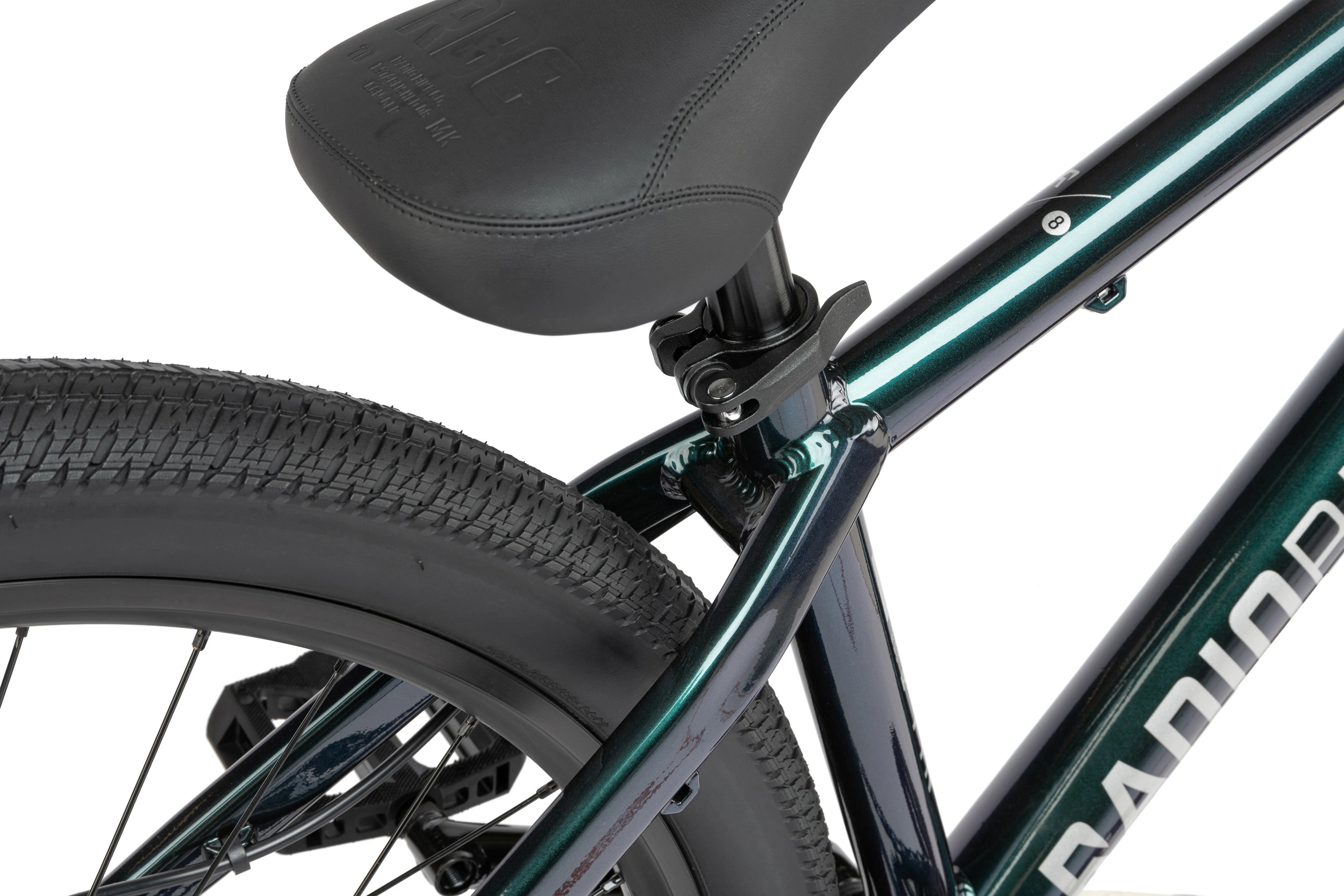

SEAT CLAMP: RADIO “QUICK RELEASE” seat clamp, alloy
TIRES: MAXXIS “DTH” tires, 2.3″, front & rear
Weight: 13.01kg / 26.68lbs
Frame Geometry:
Top Tube Length 22.6″
Chain Stay Length 15″
Head Tube Angle 69°
Seat Tube Angle 72°
Bottom Bracket Height 20mm drop
Standover Height 11″
Handlebar Geometry:
Rise 50mm
Width 760mm
Backsweep 8°
Upsweep 3°
